Lower Engine and Components

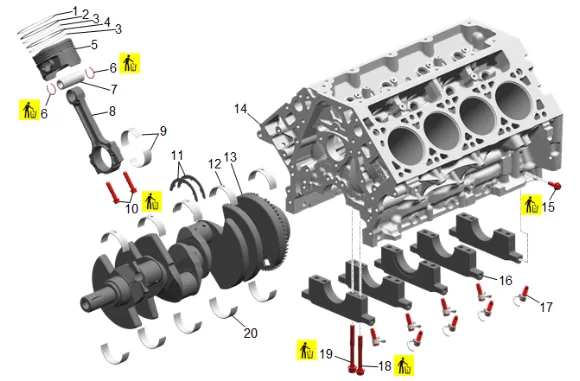

Lower Engine and Components — figure 1

(1) Piston Compression Upper Ring [8x] (2) Piston Compression Lower Ring [8x] (3) Piston Oil Ring Rail [16x] (4) Piston Oil Ring Rail Spacer [8x] (5) Piston [8x] (6) Piston Pin Retainer [16x] (7) Piston Pin [8x] (8) Connecting Rod [8x] (9) Connecting Rod Bearing [16x] (10) Connecting Rod Bolt [16x] (11) Crankshaft Thrust Upper Bearing [2x] (12) Crankshaft Upper Bearing [5x] (13) Crankshaft (14) Engine Block (15) Crankshaft Bearing Cap Bolt - Side [10x] (16) Crankshaft Bearing Cap [5x] (17) Piston Oil Nozzle [8x] (18) Crankshaft Bearing Cap Bolt [10x] (19) Crankshaft Bearing Cap Bolt [10x] (20) Crankshaft Lower Bearing [5x]
