Heater and Air Conditioning Auxiliary Control Replacement (with 9C1)

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) Removal Procedure

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

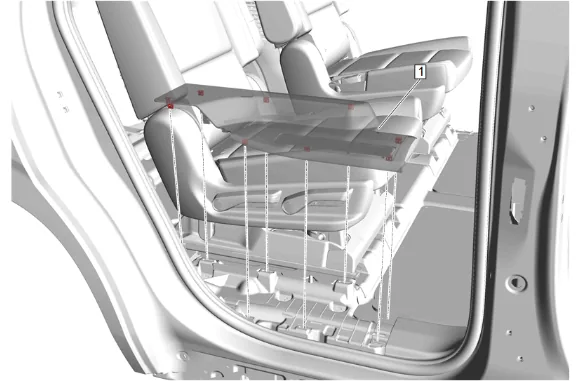

2. Place the rear seat in the fold and tumble position.

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 1

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 2

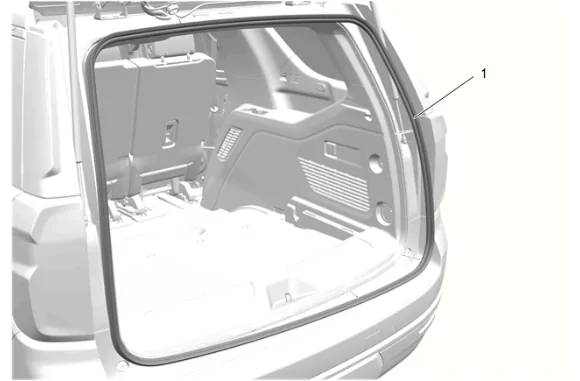

5. Liftgate Weatherstrip (1) » Reposition

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 3

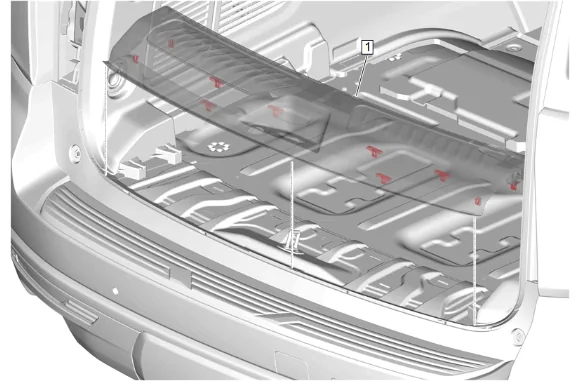

6. Liftgate Lock Striker Cover (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Rear End Trim Finish Panel (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 5

9. Rear Seat Belt Retractor Sleeve (1) » Reposition
10. Rear Seat Belt Anchor Plate Bolt (2) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 6

11. Rear Seat Belt Opening Bezel (1) » Disengage

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 7

12. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
13. Quarter Window Trim Finish Panel Bolt (2) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 8

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.
16. Body Lock Pillar Upper Trim Panel (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 9

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 10

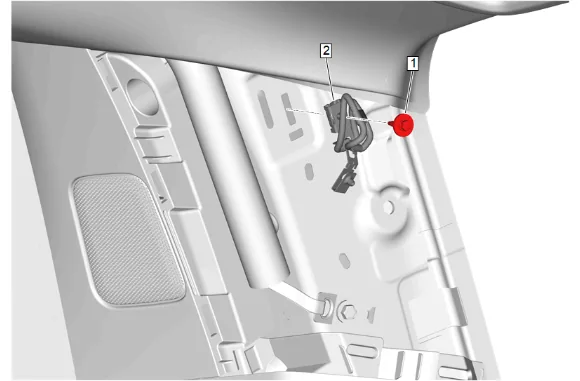

19. Body Side Rear Window Garnish Molding Bolt (1) » Remove
20. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 11

21. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 12

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Body Rear Corner Upper Garnish Molding (1) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 13

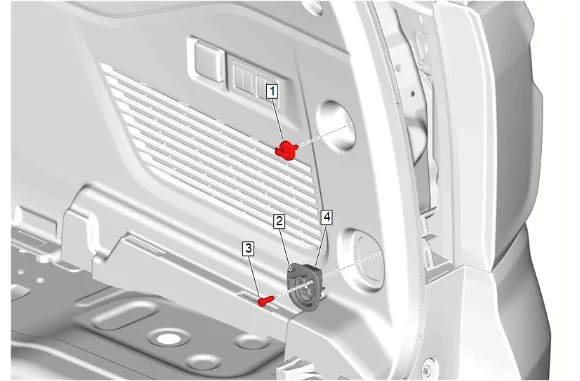

24. Convenience Net Retainer (1) » Remove
25. Cargo Tie Down Loop Bolt Cap (2) » Open
26. Cargo Tie Down Loop Bolt (3) » Remove
27. Cargo Tie Down Loop (4) » Remove

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 14

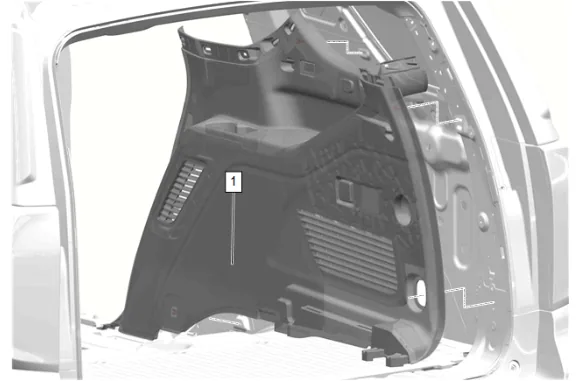

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Quarter Lower Rear Trim Panel (1) » Remove
30. Disconnect the electrical connectors and wiring harness retainers.

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 15

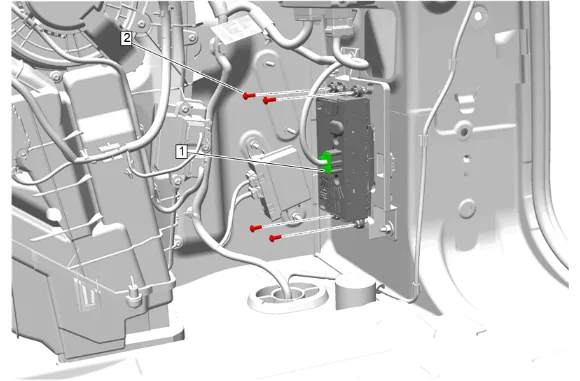

31. Disconnect the electrical connector. (1)
32. Heater and Air Conditioning Auxiliary Control Bolt (2) » Remove [4x]

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 16

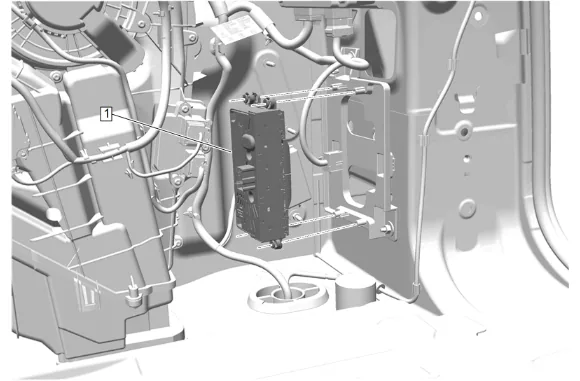

33. Heater and Air Conditioning Auxiliary Control (1) » Remove Installation Procedure

34. Heater and Air Conditioning Auxiliary Control (1) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning Auxiliary Control Bolt (2) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connector. (1)

4. Connect the electrical connectors and wiring harness retainers.

5. Quarter Lower Rear Trim Panel (1) » Install

6. Cargo Tie Down Loop (4) » Install

7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

8. Cargo Tie Down Loop Bolt Cap (2) » Close

9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

10. Body Rear Corner Upper Garnish Molding (1) » Install

11. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

12. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

13. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

14. Position the body side rear window garnish molding tether in the same position as before the molding removal.

15. Body Side Rear Window Garnish Molding (1) » Install

16. Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

17. Body Lock Pillar Upper Trim Panel (1) » Install

18. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

19. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

20. Rear Seat Belt Opening Bezel (1) » Install

21. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

22. Rear Seat Belt Retractor Sleeve (1) » Reposition

23. Rear End Trim Finish Panel (1) » Install

24. Liftgate Lock Striker Cover (1) » Install

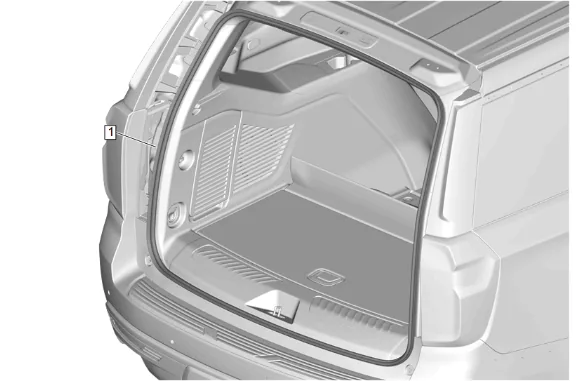

Heater and Air Conditioning Auxiliary Control Replacement (with 9C1) — figure 17

25. Liftgate Weatherstrip (1) » Install

26. Rear Side Door Sill Garnish Molding (1) » Install

27. Return the rear seat to the original position.

28. Enable the SIR System. SIR Disabling and Enabling

29. Perform the necessary programming and setup procedure: Control Module References
