Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

1. Place vehicle in alignment mode. Alignment Mode Selection

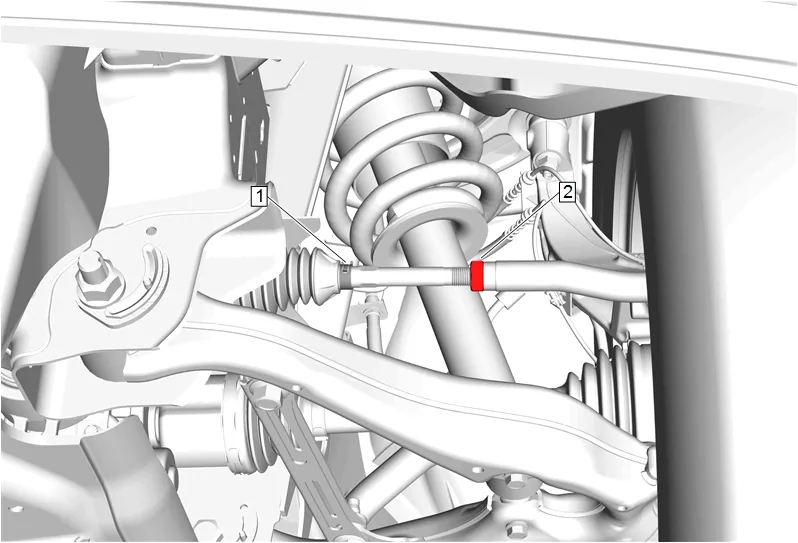

Wheel Alignment - Steering Wheel Angle and_or Front Toe Adjustment — figure 1

2. Steering Gear Boot Clamp (1) » Disengage
3. Steering Linkage Inner Tie Rod Nut (2) » Loosen

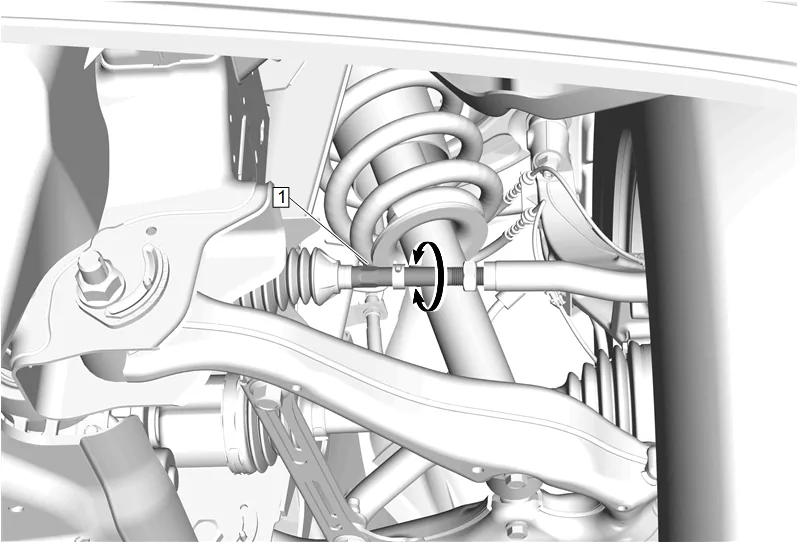

Wheel Alignment - Steering Wheel Angle and_or Front Toe Adjustment — figure 2

4. Rotate the inner tie rod (1) as necessary to achieve the required toe specification setting. Wheel Alignment Specifications

Caution

Refer to Fastener Caution.

5. Steering Linkage Inner Tie Rod Nut (2) » Tighten — Fastener Specifications
6. Steering Gear Boot Clamp (1) » Engage
7. Check the toe setting after tightening.
8. Re-adjust the toe setting if necessary.
9. Center the steering wheel position sensor. Steering Wheel Position Sensor Centering
