Outside Rearview Mirror Housing Bezel Replacement

Removal Procedure

Outside Rearview Mirror Housing Bezel Replacement — figure 1
Outside Rearview Mirror Housing Bezel Replacement — figure 1
  1. Apply masking tape over the outside rearview mirror glass (1).
Outside Rearview Mirror Housing Bezel Replacement — figure 2
Outside Rearview Mirror Housing Bezel Replacement — figure 2
  1. Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Outside Rearview Mirror Housing Bezel Replacement — figure 3
Outside Rearview Mirror Housing Bezel Replacement — figure 3
  1. Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Outside Rearview Mirror Housing Bezel Replacement — figure 4
Outside Rearview Mirror Housing Bezel Replacement — figure 4

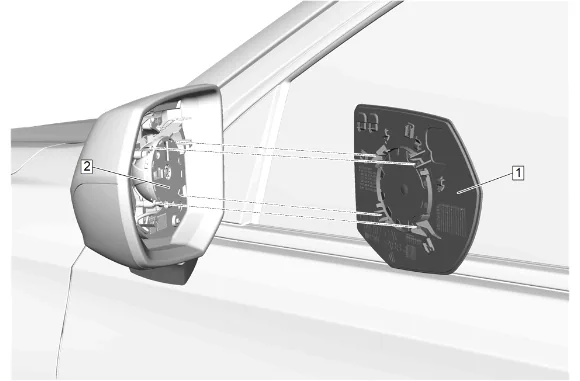

  1. Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
  2. Disconnect all electrical connectors.
Outside Rearview Mirror Housing Bezel Replacement — figure 5
Outside Rearview Mirror Housing Bezel Replacement — figure 5

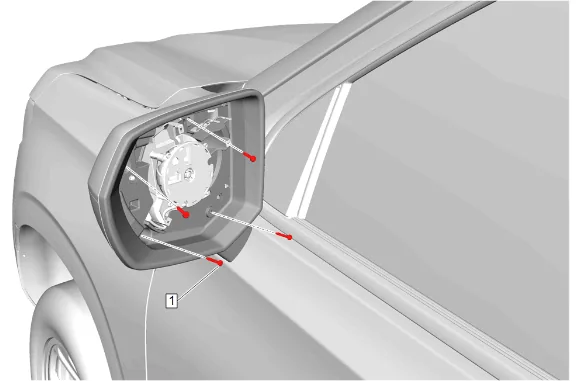

  1. Outside Rearview Mirror Opening Applique Bolt (1) » Remove [4x]
Outside Rearview Mirror Housing Bezel Replacement — figure 6
Outside Rearview Mirror Housing Bezel Replacement — figure 6

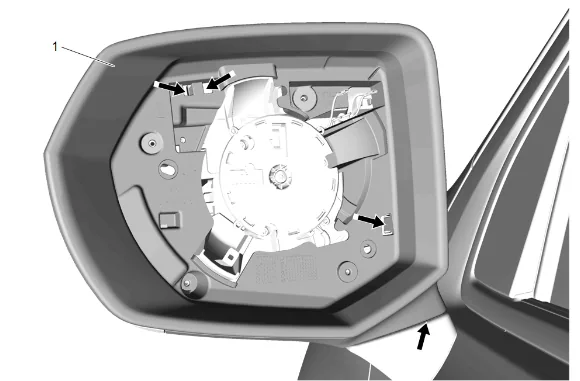

  1. Release the retaining tabs on the outside rearview mirror housing bezel (1).
Outside Rearview Mirror Housing Bezel Replacement — figure 7
Outside Rearview Mirror Housing Bezel Replacement — figure 7

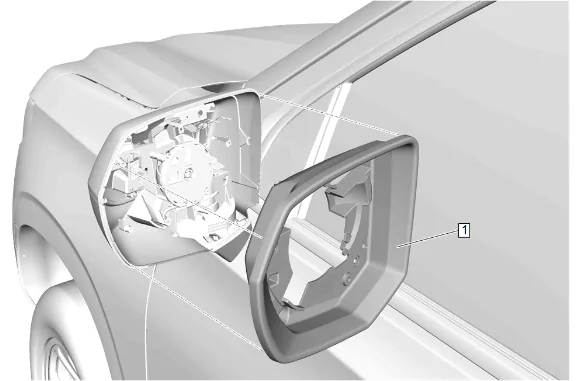

  1. Outside Rearview Mirror Housing Bezel (1) » Remove Installation Procedure

  2. Outside Rearview Mirror Housing Bezel (1) » Install

  3. Ensure the retaining tabs on the outside rearview mirror housing bezel (1) have fully secured.

  1. Outside Rearview Mirror Opening Applique Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Connect all electrical connectors.

  3. Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

  4. Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.

  5. Remove the masking tape from the outside rearview mirror glass (1).

  6. Inspect the outside rearview mirror for proper operation.
