Engine Cooling Fan Motor Replacement (LM2)

Removal Procedure

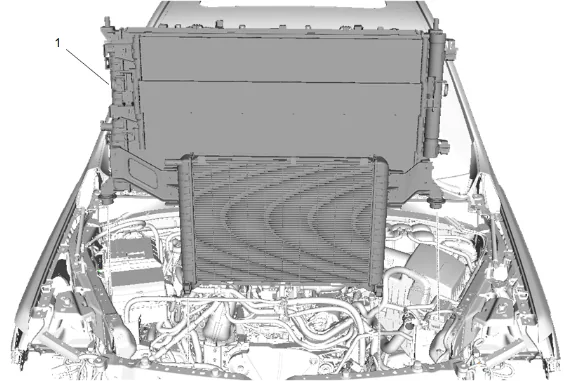

Engine Cooling Fan Motor Replacement (LM2) — figure 1

1. Remove the charge air cooler, air conditioning condenser, engine cooler fan, and radiator as an assembly (1). Charge Air Cooler, Condenser, Fan, and Radiator Assembly Removal and Installation

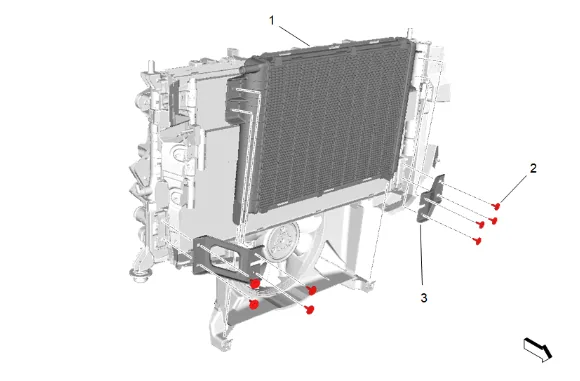

Engine Cooling Fan Motor Replacement (LM2) — figure 2

2. Auxiliary Radiator Bracket Bolt (2) » Remove [8x]
3. Auxiliary Radiator Bracket (3) » Remove [2x]
4. Engine Auxiliary Radiator (1) » Remove

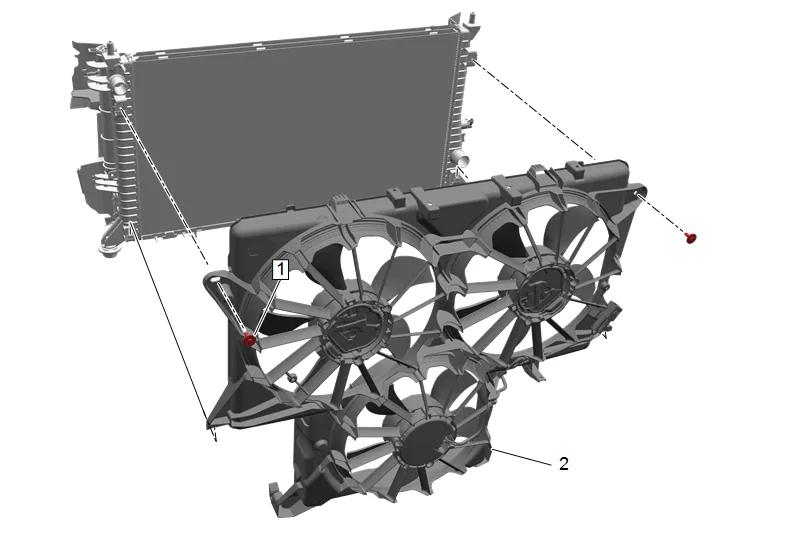

Engine Cooling Fan Motor Replacement (LM2) — figure 3

5. Engine Coolant Fan Bracket Bolt (1) » Remove [2x]
6. Engine Cooler Fan (2) » Remove

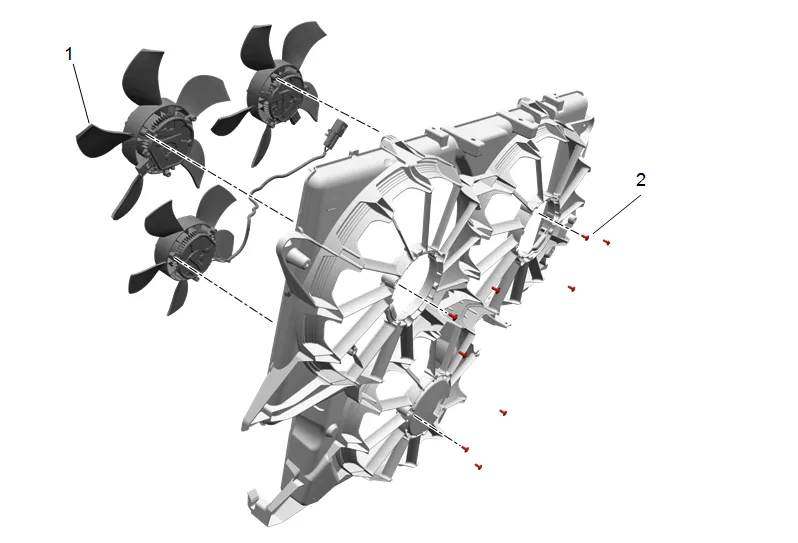

Engine Cooling Fan Motor Replacement (LM2) — figure 4

Note

The engine cooling fan motors are different. Ensure you install the engine cooling fan motors to the proper positions.

7. Fan Blade Bolt (2) » Remove [9x]
8. Engine Cooling Fan Motor (1) » Remove [3x] Installation Procedure

Note

The engine cooling fan motors are different. Ensure you install the engine cooling fan motors to the proper positions.

1. Engine Cooling Fan Motor (1) » Install [3x]

Caution

Refer to Fastener Caution.

2. Fan Blade Bolt (2) » Install and tighten [9x] — Fastener Specifications

3. Engine Cooler Fan (2) » Install

4. Engine Coolant Fan Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Engine Auxiliary Radiator (1) » Install

6. Auxiliary Radiator Bracket (3) » Install [2x]

7. Auxiliary Radiator Bracket Bolt (2) » Install and tighten [8x] — Fastener Specifications

8. Install the charge air cooler, air conditioning condenser, engine cooler fan, and radiator as an assembly (1). Charge Air Cooler, Condenser, Fan, and Radiator Assembly Removal and Installation
