Oil Pan and Components

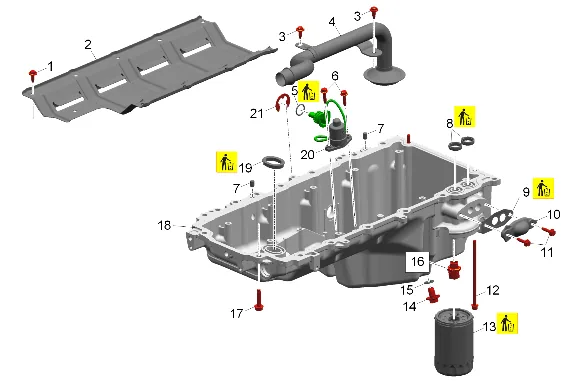

Oil Pan and Components — figure 1

(1) Crankshaft Oil Deflector Bolt [10x] (2) Crankshaft Oil Deflector (3) Oil Pump Suction Pipe Bolt [2x] (4) Oil Pump Suction Pipe Not serviced separately, shown for visual purpose. (5) Engine Oil Level Indicator Switch Seal (6) Engine Oil Level Indicator Switch Bolt [2x] (7) Oil Pan Locating Pin [2x] (8) Oil Pan High Pressure Port Seal [2x] (9) Oil Pan Cover Gasket (10) Oil Pan Cover (11) Oil Pan Cover Bolt [2x] (12) Oil Pan Bolt [2x] (13) Oil Filter (14) Oil Pan Drain Plug (15) Oil Pan Drain Plug Gasket (16) Oil Filter Fitting (17) Oil Pan Bolt [14x] (18) Oil Pan (19) Oil Pan Front Seal (20) Engine Oil Level Indicator Switch (21) Engine Oil Level Switch Clip
