Tahoe / Yukon Service Manual

Body Control Module Replacement

Removal Procedure

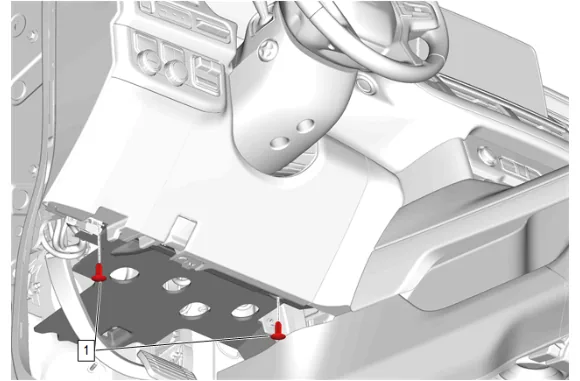

Body Control Module Replacement — figure 1
Body Control Module Replacement — figure 1
  1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

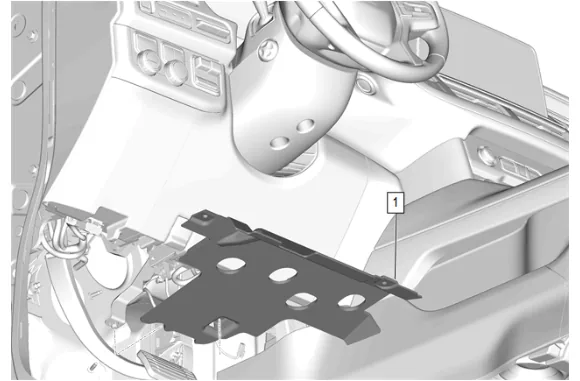

Body Control Module Replacement — figure 2
Body Control Module Replacement — figure 2
  1. Instrument Panel Lower Trim Panel Insulator (1) » Remove

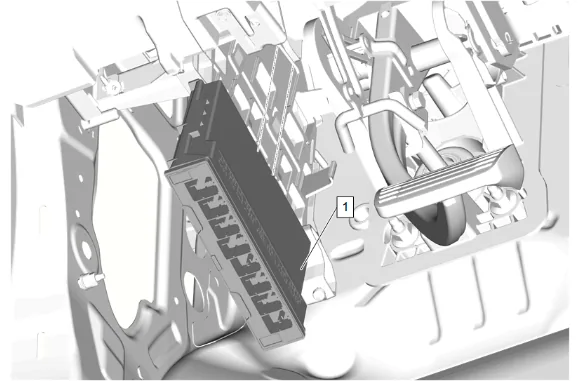

Body Control Module Replacement — figure 3
Body Control Module Replacement — figure 3

  1. Disconnect the electrical connectors.

  2. Release the retaining tabs.

  3. Body Control Module (1) » Remove Installation Procedure

  4. Body Control Module (1) » Install

  5. Secure the retaining tabs.

  6. Connect the electrical connectors.

  7. Instrument Panel Lower Trim Panel Insulator (1) » Install

  8. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

  9. Perform the necessary programming and setup procedure: Control Module References
