Electronic Suspension Front Position Sensor Link Ball Stud Replacement

Electronic Suspension Front Position Sensor Link Ball Stud Replacement Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

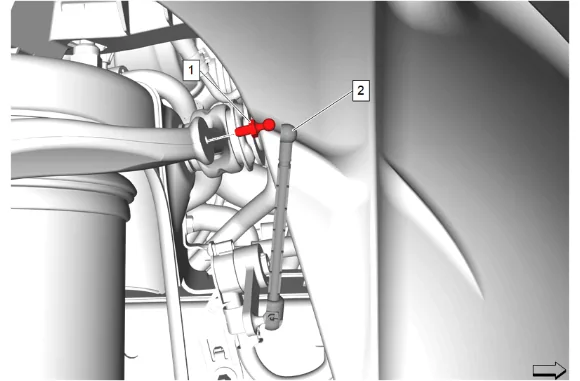

Electronic Suspension Front Position Sensor Link Ball Stud Replacement — figure 1

2. Disconnect the suspension position sensor link (2) from the electronic suspension front position sensor ball stud (1).
3. Electronic Suspension Front Position Sensor Link Ball Stud (1) » Remove Installation Procedure

Caution

Refer to Fastener Caution.

1. Electronic Suspension Front Position Sensor Link Ball Stud (1) » Install and tighten — Fastener Specifications
2. Connect the suspension position sensor link (2) to the electronic suspension front position sensor ball stud (1).
3. Remove the support and lower the vehicle.
