Tahoe / Yukon Service Manual

Instrument Panel Center Air Outlet Replacement

Removal Procedure

Instrument Panel Center Air Outlet Replacement — figure 1
Instrument Panel Center Air Outlet Replacement — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove
Instrument Panel Center Air Outlet Replacement — figure 2
Instrument Panel Center Air Outlet Replacement — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Trim Plate Applique (1) » Remove
Instrument Panel Center Air Outlet Replacement — figure 3
Instrument Panel Center Air Outlet Replacement — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Center Trim Plate Applique (1) » Remove
Instrument Panel Center Air Outlet Replacement — figure 4
Instrument Panel Center Air Outlet Replacement — figure 4
  1. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
  1. Instrument Panel Trim Pad (2) » Remove
  2. Disconnect the electrical connector.

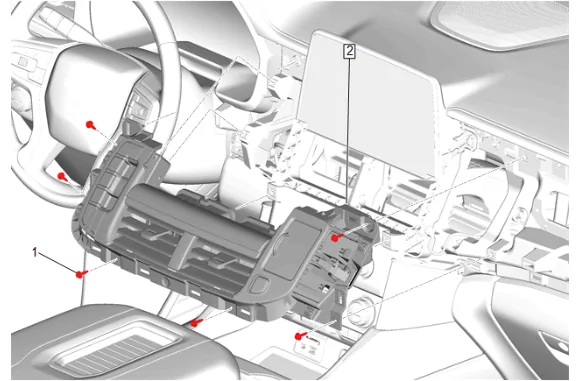

Instrument Panel Center Air Outlet Replacement — figure 5
Instrument Panel Center Air Outlet Replacement — figure 5
  1. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
  2. Instrument Panel Transmission Shift Opening Cover (2) » Remove
  3. Disconnect the electrical connectors.

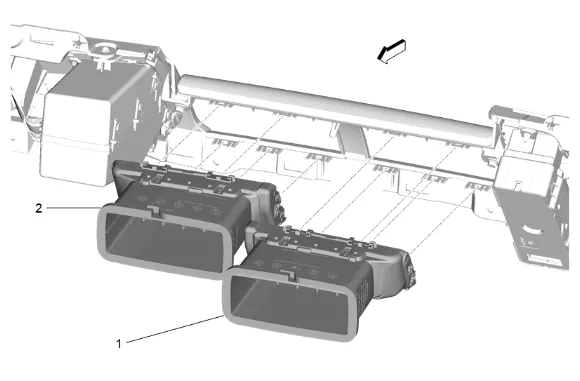

Instrument Panel Center Air Outlet Replacement — figure 6
Instrument Panel Center Air Outlet Replacement — figure 6

  1. Release the retaining tabs.

  2. Instrument Panel Center Air Outlet - Left Side (1) » Remove

  3. Instrument Panel Center Air Outlet - Right Side (2) » Remove Installation Procedure

  4. Instrument Panel Center Air Outlet - Left Side (1) » Install

  5. Instrument Panel Center Air Outlet - Right Side (2) » Install

  6. Connect the electrical connectors.

  7. Instrument Panel Transmission Shift Opening Cover (2) » Install

  1. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

  2. Connect the electrical connector.

  3. Instrument Panel Trim Pad (2) » Install

  4. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

  5. Instrument Panel Center Trim Plate Applique (1) » Install

  6. Instrument Panel Trim Plate Applique (1) » Install

  7. Instrument Panel Fuse Block Access Hole Cover (1) » Install
