Fastener Specifications (4)
Fastener Specifications Table 1: Airbag Front End Discriminating Sensor Table 2: Airbag Sensing and Diagnostic Module Table 3: Front Seat Belt Retractor and Tensioner Table 4: Front Seat Outboard Seat Back Airbag Table 5: Roof Rail Airbag and Side Impact Sensors Table 6: Steering Wheel Airbag

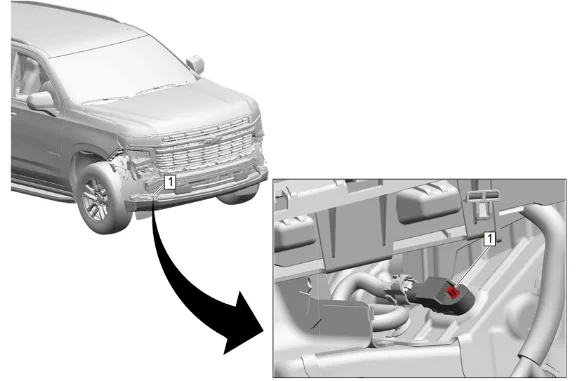

Airbag Front End Discriminating Sensor
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor | — | — | 7.5 Y (66 lb in) | Airbag Front End Discriminating Sensor Replacement |

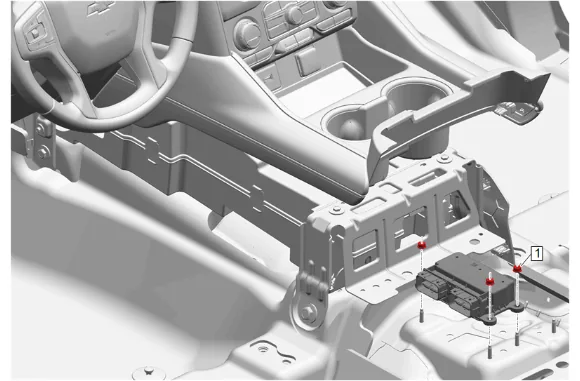

Airbag Sensing and Diagnostic Module
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Airbag Sensing and Diagnostic Module Nut [3x] | — | — | 9 Y (80 lb in) | Airbag Sensing and Diagnostic Module Replacement |

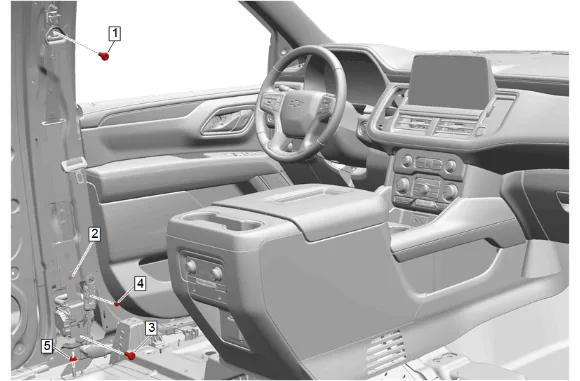

Front Seat Belt Retractor and Tensioner
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Seat Belt Retractor D Ring Bolt | — | Yes | 45 Y (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Retractor Bolt - Upper | — | — | 9 Y (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt - Lower | — | — | 45 Y (33 lb ft) | Front Seat Belt Retractor Replacement |
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 4 | Front Seat Belt Anchor Plate Tensioner Bolt | — | Yes | 9 Y (80 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 5 | Front Seat Belt Nut | — | — | 45 Y (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |

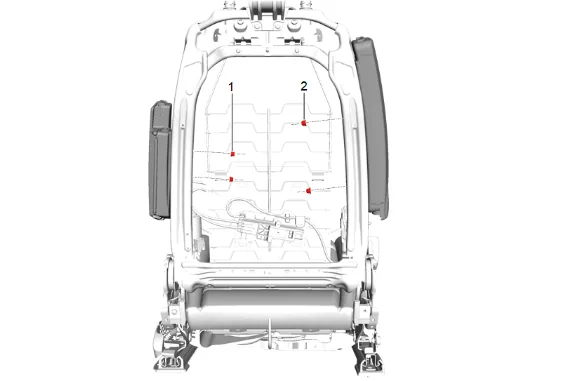

Front Seat Outboard Seat Back Airbag
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure | ||
|---|---|---|---|---|---|---|---|
| e nent d Metric (English) | |||||||
| 1 | Front Seat Outboard Seat Back Airbag Nut | — | — | 7 Y (62 lb in) | Front Seat Back Cover and Pad Removal and Installation | ||
| 2 | Front Seat Inboard Seat Back Airbag Nut | — | — | 7 Y (62 lb in) | Front Seat Back Cover and Pad Removal and | ||
| © | 2023 Gen | eral Motor | s. All rights reserved. | Installation |

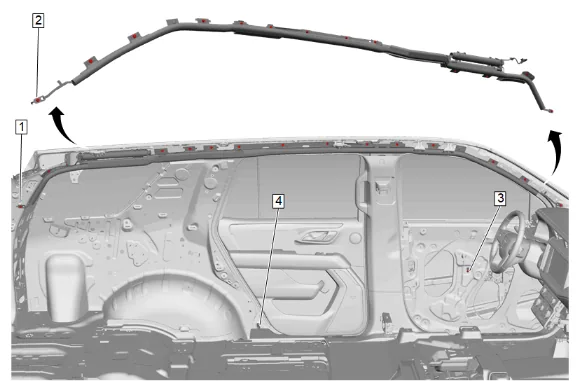

Roof Rail Airbag and Side Impact Sensors
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt - Left Side [15x] | — | — | 9 Y (80 lb in) | Front and Rear and 3rd Row Roof Rail Airbag Replacement - Left Side |
| 2 | Roof Rail Airbag Bolt - Right Side [15x] | — | — | 9 Y (80 lb in) | Front and Rear and 3rd Row Roof Rail Airbag Replacement - Right Side |
| 3 | Airbag Side Impact Sensor | — | — | 7.5 Y (66 lb in) | Airbag Side Impact Sensor Replacement |
| 4 | Airbag Side Impact Rear Sensor | — | — | 7.5 Y (66 lb in) | Airbag Side Impact Rear Sensor Replacement |

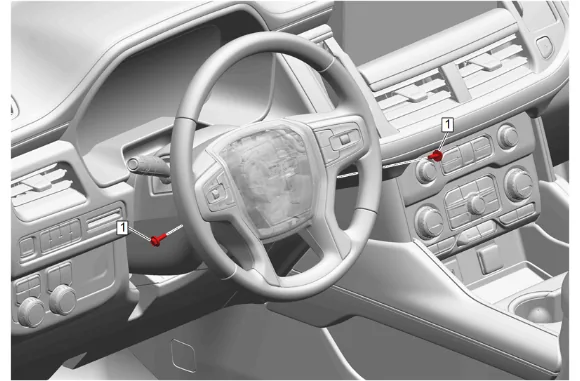

Steering Wheel Airbag
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [2x] | — | — | 9 Y (80 lb in) | Steering Wheel Airbag Replacement |
