Tahoe / Yukon Service Manual

Rear Seat Cushion Cover and Pad Removal and Installation (Bucket)

Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) Removal Procedure

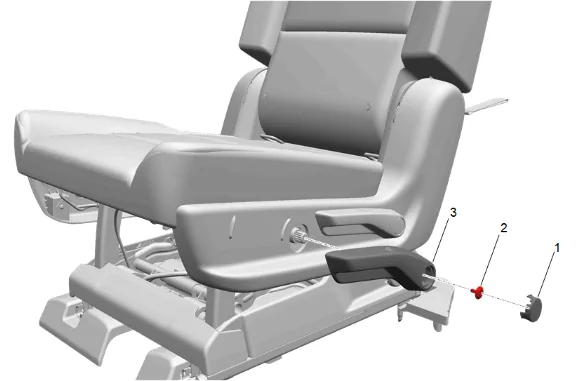

Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 1
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 1
  1. Reposition the seat as necessary.
  2. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  3. Rear Seat Riser Bolt (2) » Remove
  4. Rear Seat Adjuster Handle (3) » Remove
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 2
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 2
  1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  2. Rear Seat Riser Bolt (2) » Remove
  3. Rear Seat Recliner Handle (3) » Remove

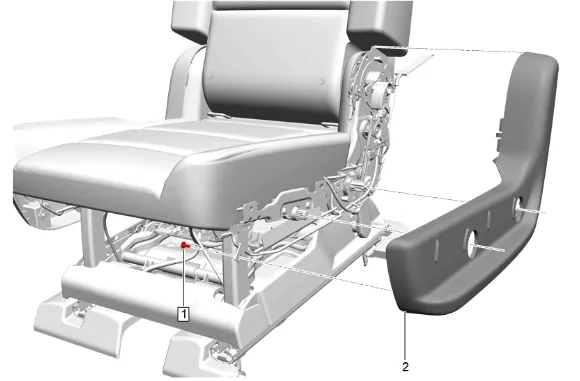

Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 3
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 3
  1. Front Seat Bolt (1) » Remove
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

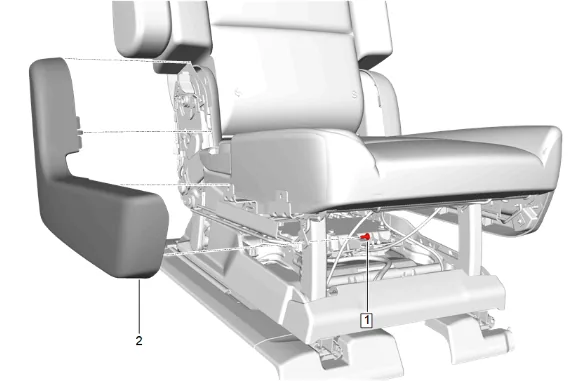

Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 4
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 4
  1. Front Seat Bolt (1) » Remove
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 5
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 5
  1. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
  2. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).
  3. Rear Seat Cushion Trim Panel (2) » Reposition
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 6
Rear Seat Cushion Cover and Pad Removal and Installation (Bucket) — figure 6

  1. Remove the retainers holding the rear seat cushion cover (1) from the rear seat cushion frame.

  2. Disconnect the electrical connectors and reposition the wiring harness as necessary.

  3. Remove the rear seat cushion cover and pad (1) as an assembly. Installation Procedure

  4. Install the rear seat cushion cover and pad (1) as an assembly.

  5. Install the retainers holding the rear seat cushion cover to the rear seat cushion frame.

  6. Connect the electrical connectors and position the wiring harness.

  7. Rear Seat Cushion Trim Panel (2) » Install

  8. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

  9. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

  10. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

  1. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

  2. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

  3. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

  4. Rear Seat Recliner Handle (3) » Install

  5. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  6. Rear Seat Recliner Handle Bolt Cap (1) » Install

  7. Rear Seat Adjuster Handle (3) » Install

  8. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  9. Rear Seat Recliner Handle Bolt Cap (1) » Install

  10. Return the seat to its original position.
