Tahoe / Yukon Service Manual

Special Tools (1)

Special Tools Illustration Tool Number/ Description

Special Tools (1) — figure 1
Special Tools (1) — figure 1

CH-44581 J-44581 Fuel Line Disconnect Tool

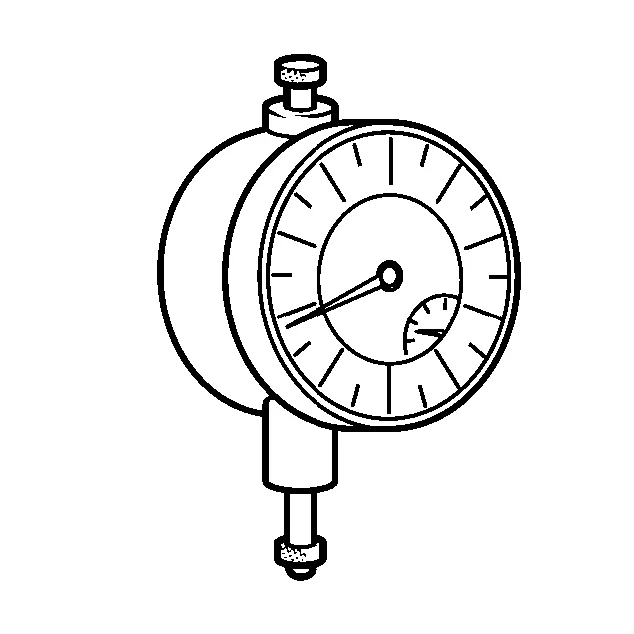

Special Tools (1) — figure 2
Special Tools (1) — figure 2

EN-571-B GE-571-B MKM-571-B J-8001 Dial Gauge

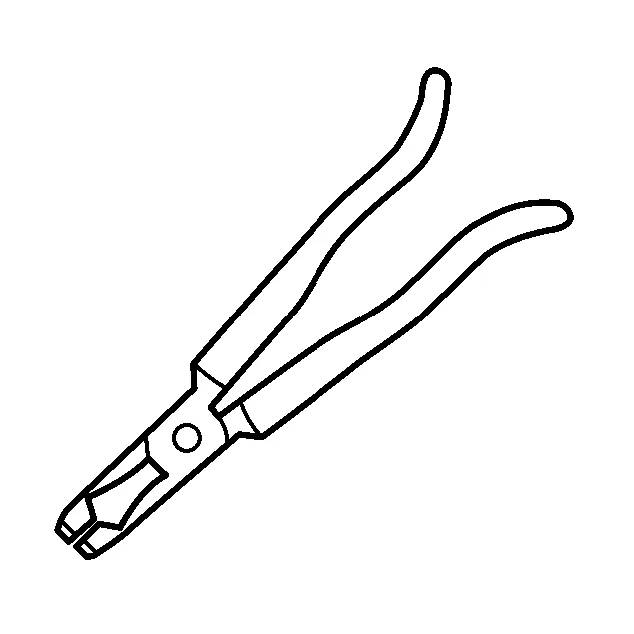

Special Tools (1) — figure 3
Special Tools (1) — figure 3

EN-840 KM-840 J-36017 Pliers/ Remover

Special Tools (1) — figure 4
Special Tools (1) — figure 4

EN-956-1 KM-956-1 Extension EN-8087

Special Tools (1) — figure 5
Special Tools (1) — figure 5

EN 8087 Illustration Tool Number/ Description J-8087 Cylinder Bore Gauge

Special Tools (1) — figure 6
Special Tools (1) — figure 6

EN-26999 J-26999 Compression Gauge

Special Tools (1) — figure 7
Special Tools (1) — figure 7

EN-36857 J-36857 Engine Lift Bracket

Special Tools (1) — figure 8
Special Tools (1) — figure 8

EN-37228 J-37228 KM-37228 Separating Tool

Illustration Tool Number/ Description
EN-45059-A Angle Meter
EN-45299 J-45299 Engine Pre-Luber
EN-46722 Compression Gauge Adapter
EN-47634 Holder
Special Tools (1) — figure 9
Special Tools (1) — figure 9

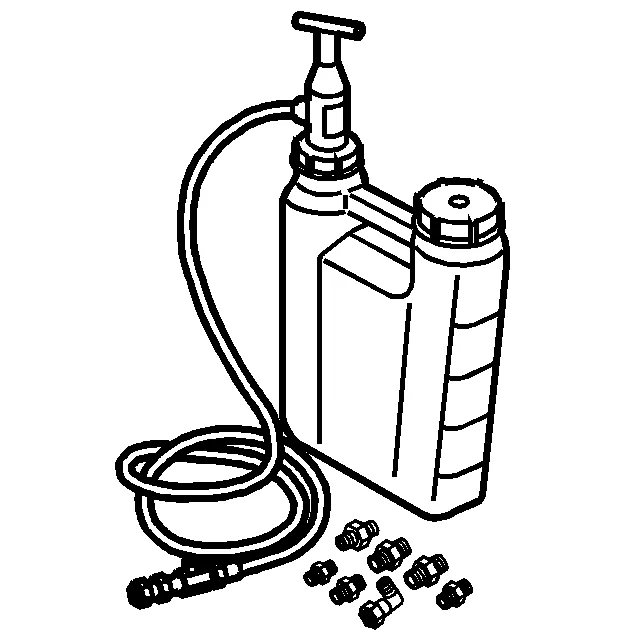

Special Tools (1) — figure 10
Special Tools (1) — figure 10
Special Tools (1) — figure 11
Special Tools (1) — figure 11
Special Tools (1) — figure 12
Special Tools (1) — figure 12
Illustration Tool Number/ Description
EN-47909 Injector Bore and Sleeve Cleaning Kit
EN-49979 Holder
EN-49979–100 Holder Adapter Pins
EN-50717 Valve Spring Compressor
Special Tools (1) — figure 13
Special Tools (1) — figure 13
Special Tools (1) — figure 14
Special Tools (1) — figure 14
Special Tools (1) — figure 15
Special Tools (1) — figure 15
Special Tools (1) — figure 16
Special Tools (1) — figure 16
Illustration Tool Number/ Description
EN-50717-20 Valve Spring Compressor Adapter Set
EN-51007 Engine Support Fixture
EN-51146 Injector Remover/Installer
EN-51454 Connecting Rod Guides
Special Tools (1) — figure 17
Special Tools (1) — figure 17
Special Tools (1) — figure 18
Special Tools (1) — figure 18
Special Tools (1) — figure 19
Special Tools (1) — figure 19
Special Tools (1) — figure 20
Special Tools (1) — figure 20
Illustration Tool Number/ Description
EN-51768 Engine Support Fixture Adaptor Bolt - M8
EN-52234 Timing Chain Tensioner Retaining Pins
EN-52445 Camshaft Tool
EN-52446 Rear Crankshaft Seal Installer
Special Tools (1) — figure 21
Special Tools (1) — figure 21
Special Tools (1) — figure 22
Special Tools (1) — figure 22
Special Tools (1) — figure 23
Special Tools (1) — figure 23
Special Tools (1) — figure 24
Special Tools (1) — figure 24
Illustration Tool Number/ Description
EN-52448 High Pressure Fuel Pump Tool
EN-52449 Engine Stand Adapter
EN-52451 Fuel Injector Remover
EN-52452 Front Crankshaft Seal Installer
Special Tools (1) — figure 25
Special Tools (1) — figure 25
Special Tools (1) — figure 26
Special Tools (1) — figure 26
Special Tools (1) — figure 27
Special Tools (1) — figure 27
Special Tools (1) — figure 28
Special Tools (1) — figure 28
Illustration Tool Number/ Description
EN-52474 Engine Lift Bracket Set
EN-52483 Cover Installation Guide Pins
EN-52486 Oil Pressure Gauge Adapter
EN-52586 Crankshaft Fixing Pin
Special Tools (1) — figure 29
Special Tools (1) — figure 29
Special Tools (1) — figure 30
Special Tools (1) — figure 30
Special Tools (1) — figure 31
Special Tools (1) — figure 31
Special Tools (1) — figure 32
Special Tools (1) — figure 32
Illustration Tool Number/ Description
EN-6009 J-43301 Coil Pack Puller
GE-21867-A J-21867-A Oil Pressure Gauge Kit
Special Tools (1) — figure 33
Special Tools (1) — figure 33

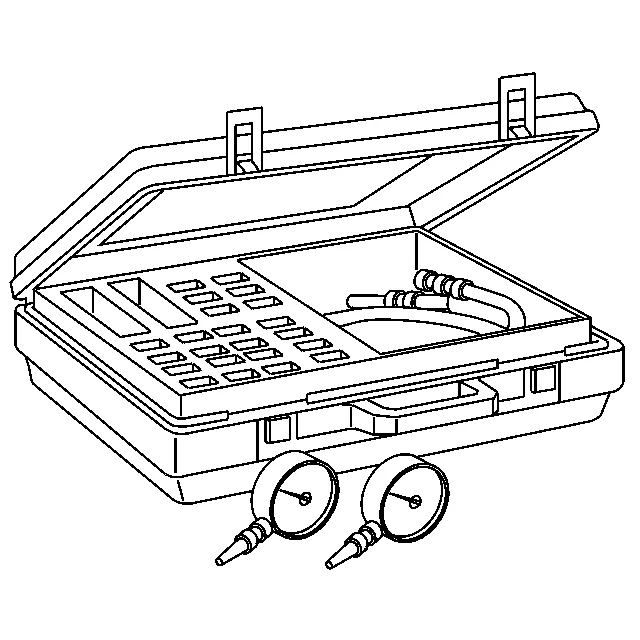

Special Tools (1) — figure 34
Special Tools (1) — figure 34
