Front Floor Console Compartment Lamp Replacement

Removal Procedure

Front Floor Console Compartment Lamp Replacement — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

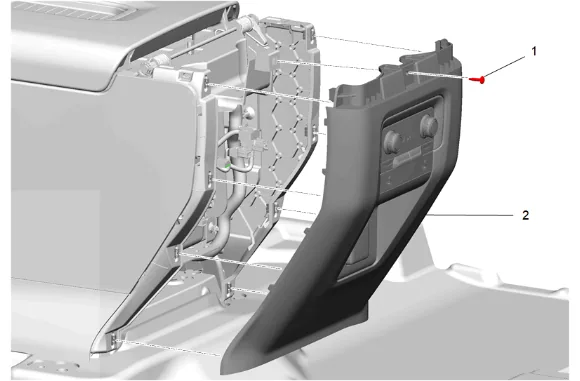

Front Floor Console Compartment Lamp Replacement — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Reposition

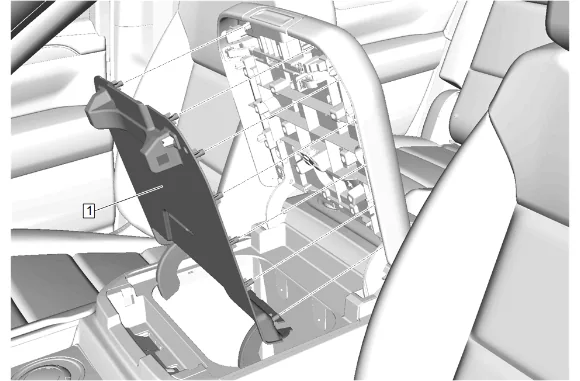

Front Floor Console Compartment Lamp Replacement — figure 3

8. While holding the latch release button in, use a flat-bladed plastic trim tool to release the retaining clips.
9. Front Floor Console Armrest Hinge Cover (1) » Remove

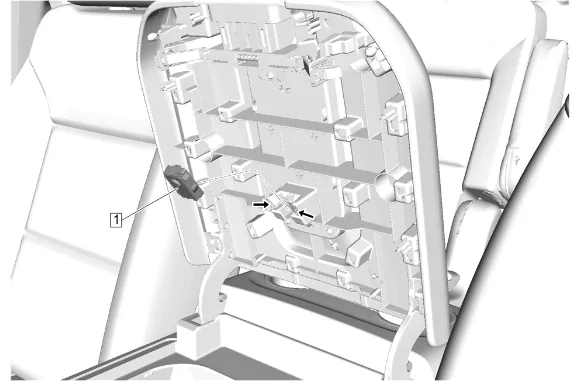

Front Floor Console Compartment Lamp Replacement — figure 4

Note

Observe the mounting and location of the wiring harness to ensure proper reinstallation.

10. Release the retaining tabs.

11. Disconnect the electrical connector.

12. Front Floor Console Compartment Lamp (1) » Remove Installation Procedure

13. Front Floor Console Compartment Lamp (1) » Install

14. Connect the electrical connector.

15. Secure the retaining tabs.

Note

Hold the latch release button in.

4. Front Floor Console Armrest Hinge Cover (1) » Install

5. Front Floor Console Rear Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

6. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

7. Front Floor Console Rear Cup Holder (3) » Install

8. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

9. Front Floor Console Rear Cup Holder Liner (1) » Install
