Front Upper Control Arm Replacement - Right Side (F47)
Special Tools CH-42188–B Ball Joint Separator Equivalent regional tools: Special Tools
- Place the air system in service mode.
- Raise the vehicle until the tires are off the ground. Lifting and Jacking the Vehicle
- Using the scan tool, deflate the air spring that will be serviced.
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

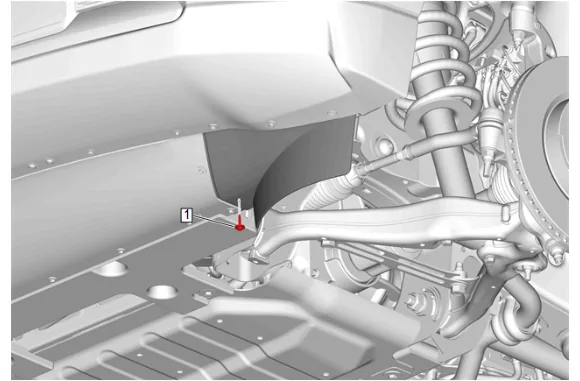

- { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

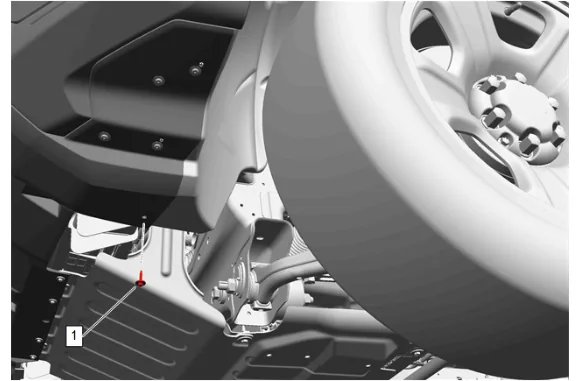

- { If equipped } Front Bumper Fascia Bolt - Right Side (1) » Remove

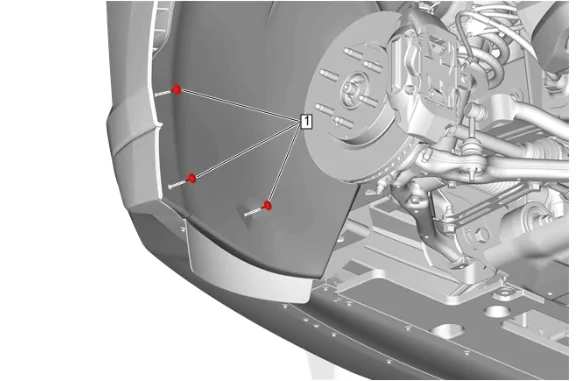

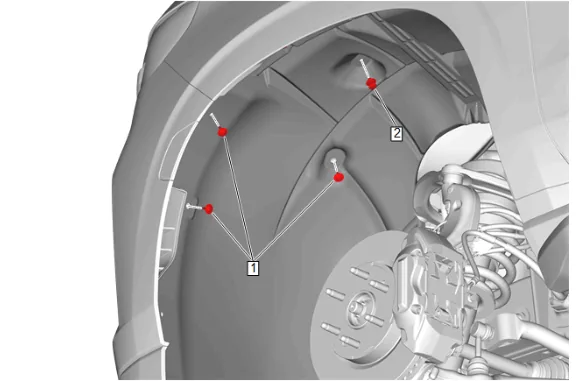

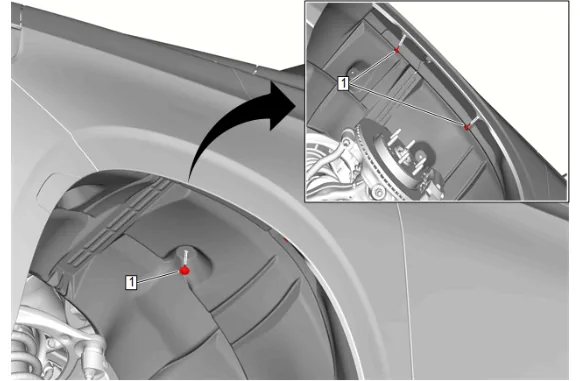

- Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
- Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
- Front Wheelhouse Liner Retainer - Right Side (2) » Remove

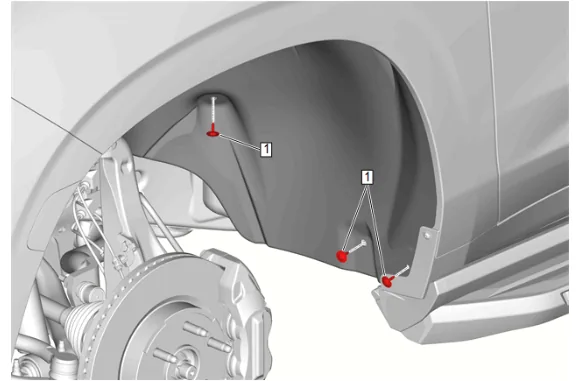

- Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
- Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

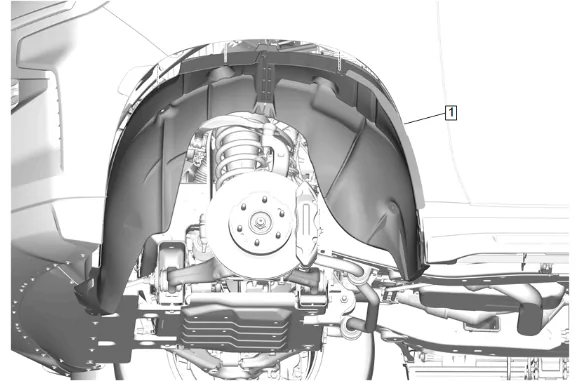

- Front Wheelhouse Liner - Right Side (1) » Remove

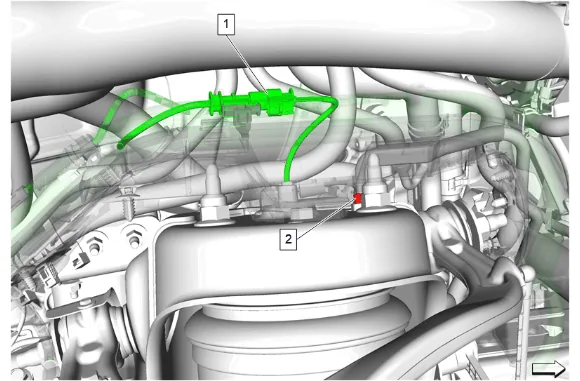

- Disconnect the right front shock absorber electrical connector (1).
- Disconnect the right air line nut (2).

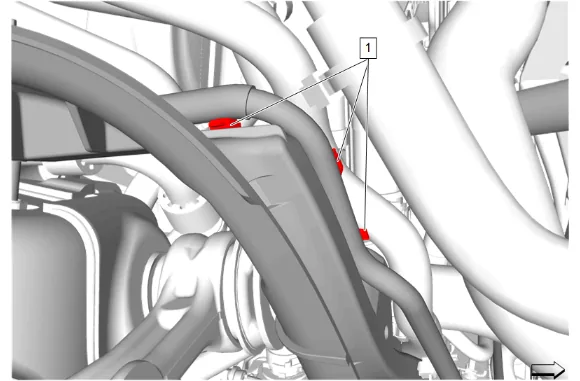

- Release the 3 air line retainers (1) from the chassis wiring harness front bracket.

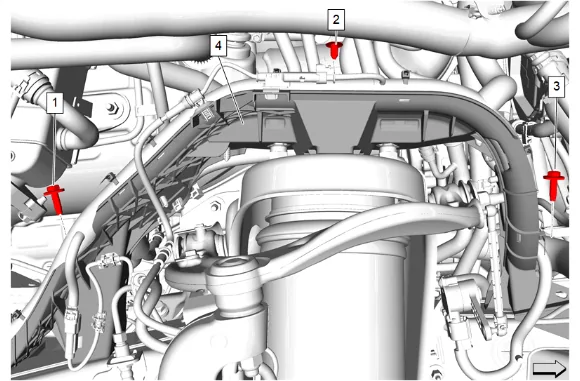

- Remove the chassis wiring harness front bracket rear bolt (1).
- Remove the chassis wiring harness front bracket retainer (2).
- Remove the chassis wiring harness front bracket front bolt (3).
- Unclip and reposition the chassis wiring harness front bracket (4) and wiring harnesses away from the shock tower.

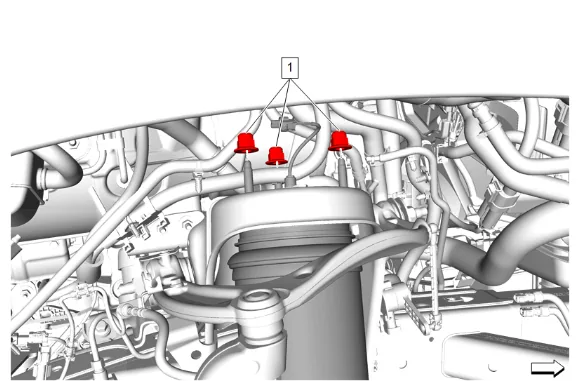

- Front Shock Absorber Nut (1) » Remove [3x]

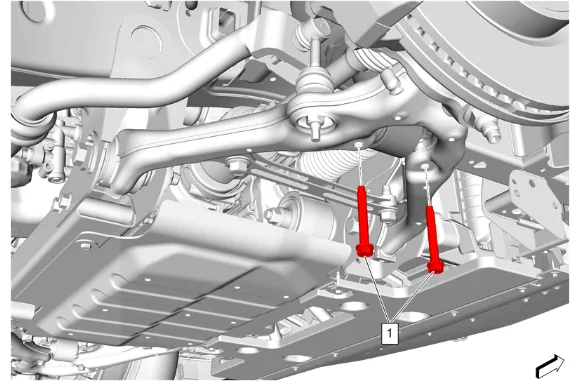

- Front Shock Absorber Bolt (1) » Remove [2x]

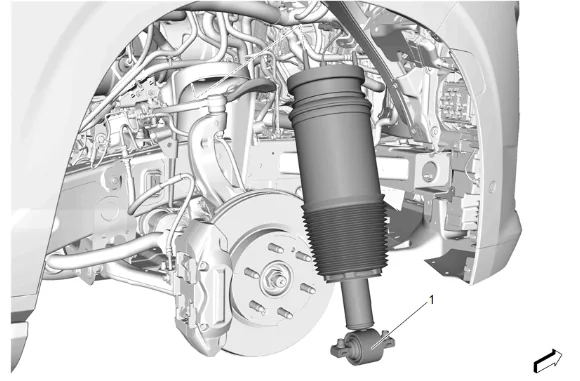

- Front Shock Absorber (1) » Remove
- Remove the front wheel speed sensor bracket bolt (1) and reposition the front wheel speed sensor bracket (2) away from the front upper control arm.

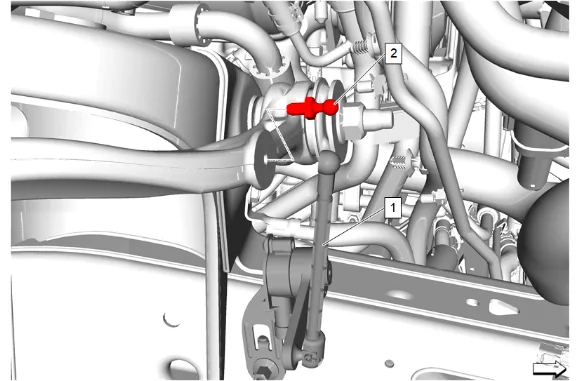

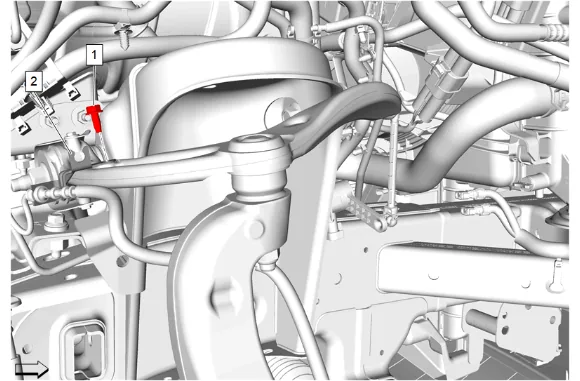

- Disconnect the front suspension 4 corner leveling system position sensor (1) from the electronic suspension front position sensor link ball stud (2).
- Electronic Suspension Front Position Sensor Link Ball Stud (2) » Remove

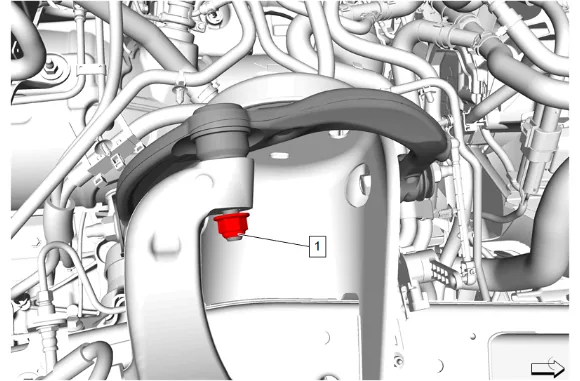

- Front Upper Control Arm Ball Stud Nut (1) » Loosen

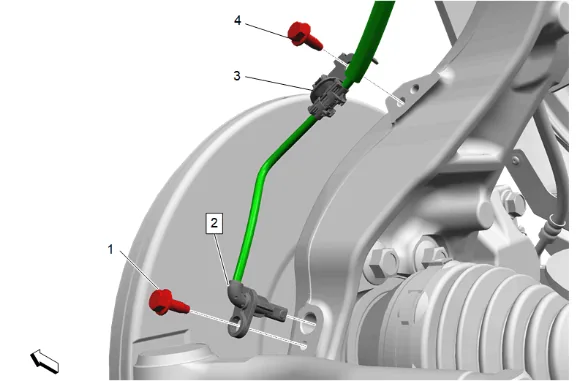

- Front Brake Hose Bracket Bolt (1) » Remove
- Front Wheel Speed Sensor Bolt (1) » Remove
- Front Wheel Speed Sensor Bracket Bolt (4) » Remove
- Front Wheel Speed Sensor (2) » Remove
- Front Wheel Speed Sensor Bracket (3) » Remove

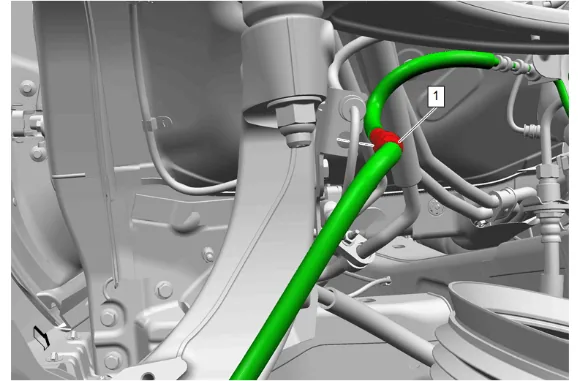

- Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Remove

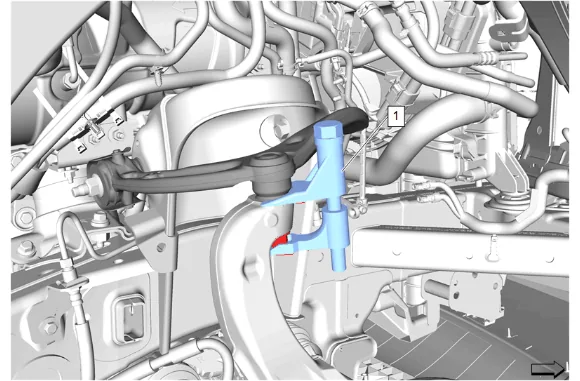

- Using the CH-42188–B Ball Joint Separator(1) , separate the right front upper control arm (2) from the steering knuckle.
- Remove the CH-42188–B Ball Joint Separator(1) from the right front upper control arm (2) and the steering knuckle.

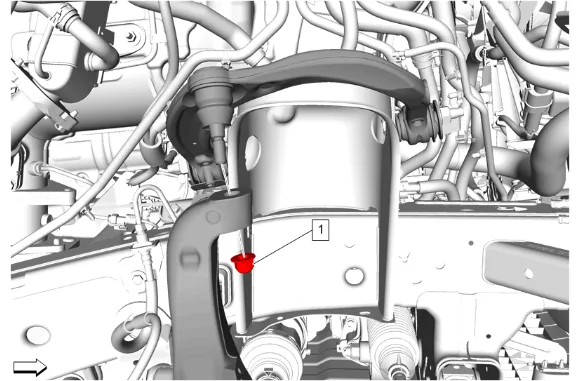

- Front Upper Control Arm Ball Stud Nut (1) » Remove

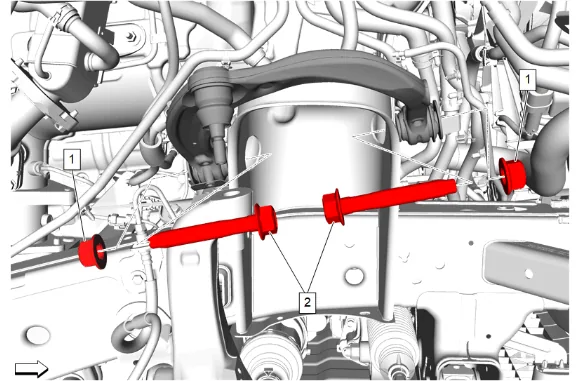

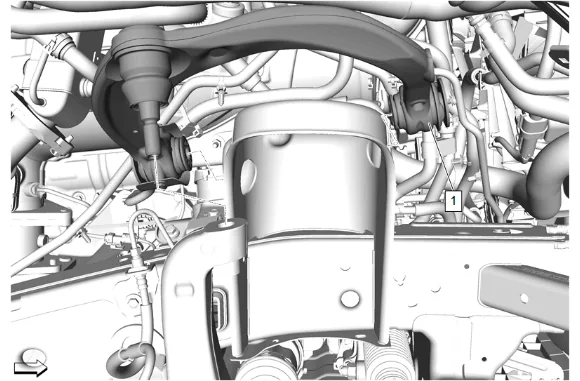

- Front Upper Control Arm Nut (1) » Remove [2x]
- Front Upper Control Arm Bolt (2) » Remove [2x]
-
Front Upper Control Arm - Right Side (1) » Remove Installation Procedure
-
Front Upper Control Arm - Right Side (1) » Install
-
Front Upper Control Arm Bolt (2) » Install [2x]
-
Front Upper Control Arm Nut (1) » Install and tighten [2x] — Fastener Specifications
-
Front Upper Control Arm Ball Stud Nut (1) » Install and tighten — Fastener Specifications
-
Electronic Suspension Front Position Sensor Link Ball Stud (2) » Install and tighten — Fastener Specifications
-
Connect the front suspension 4 corner leveling system position sensor (1) to the electronic suspension front position sensor link ball stud (2).
-
Reposition and install the front wheel speed sensor bracket (2).
-
Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications
- Apply anti-corrosion wax to the frame shock tower. Anti-Corrosion Treatment and Repair
- Support the front shock absorber using a suitable jack stand.
-

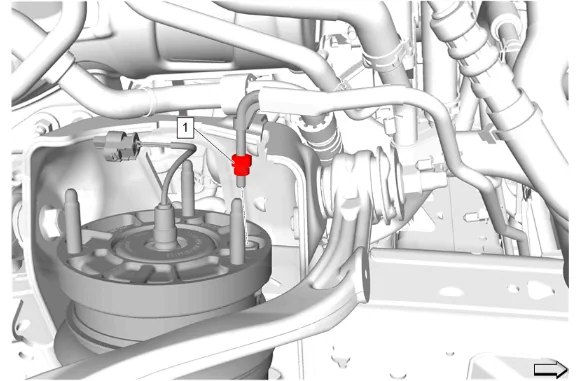

Reposition the air line, then install and tighten the air line nut (1). Fastener Specifications
-
Front Shock Absorber (1) » Install
-
Front Shock Absorber Nut (1) » Install and tighten [3x] — Fastener Specifications
-
Front Shock Absorber Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Reposition and install the chassis wiring harness front bracket (4) and wiring harnesses to the shock tower.
-
Install and tighten the chassis wiring harness front bracket front bolt (3). Fastener Specifications
-
Install the chassis wiring harness front bracket retainer (2).
-
Install and tighten the chassis wiring harness front bracket rear bolt (1). Fastener Specifications
-
Remove the jack stand from under the front lower control arm.
-

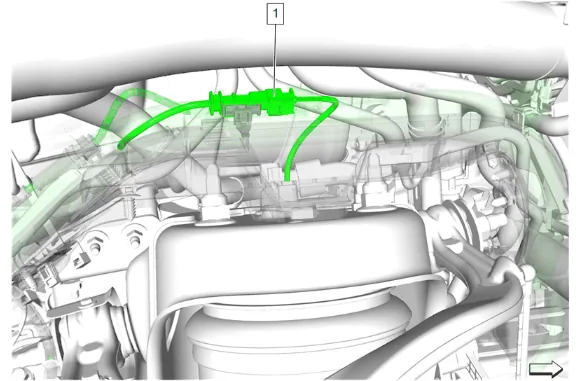

Install the 3 air line retainers (1) to the chassis wiring harness front bracket.
- Connect the right front shock absorber electrical connector (1).
- Front Wheelhouse Liner - Right Side (1) » Install
- Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications
- Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications
- Front Wheelhouse Liner Retainer - Right Side (2) » Install
- Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications
- Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications
- { If equipped } Front Bumper Fascia Bolt - Right Side (1) » Install and tighten — Fastener Specifications
- { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Install and tighten — Fastener Specifications
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Turn service mode off.
- With the vehicle off the hoist and on flat level ground, use the scan tool to reset trim heights. Trim Height Inspection
