Oil Filler Tube Replacement
Removal Procedure

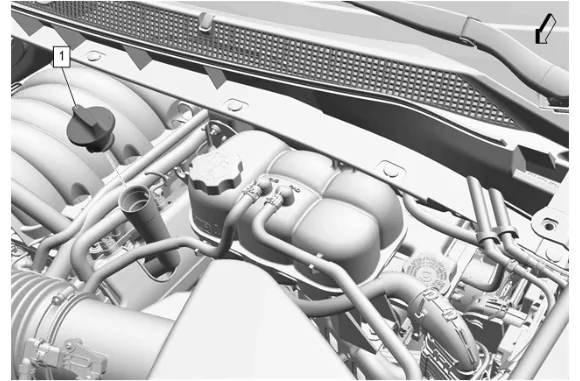

- Oil Filler Cap (1) » Remove

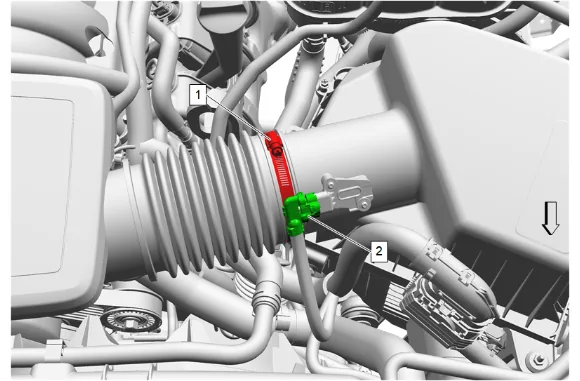

- Air Cleaner Outlet Duct Clamp (1) » Loosen
- Disconnect the mass airflow sensor electrical connector (2) and remove all engine wiring harnesses from the air cleaner assembly.
- Air Cleaner Outlet Duct (1) » Reposition away

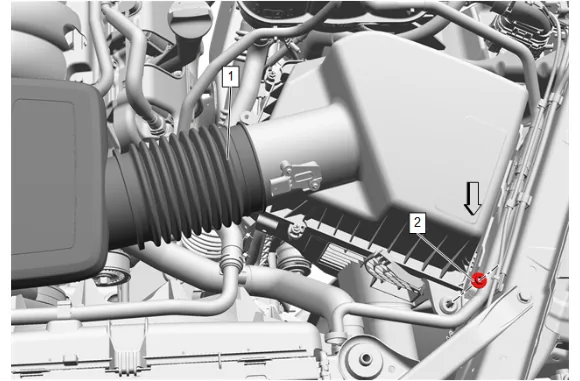

- Air Cleaner Nut (2) » Remove

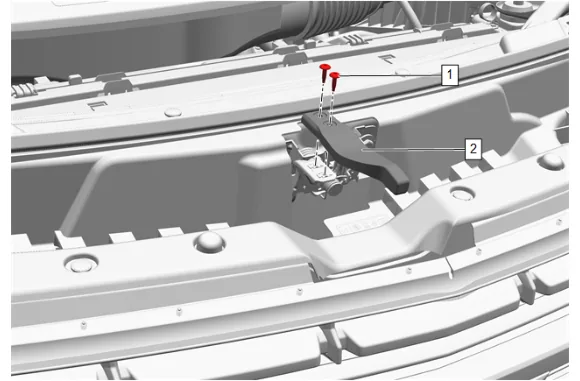

- Hood Latch Actuator Bolt(1) » Remove [2x]
- Hood Secondary Latch Release Handle (2) » Remove

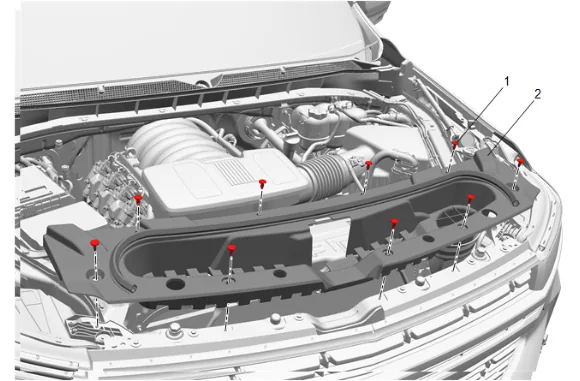

- Air Inlet Grille Panel Retainer (1) » Remove [9x]
- Intake Air Splash Shield (2) » Remove

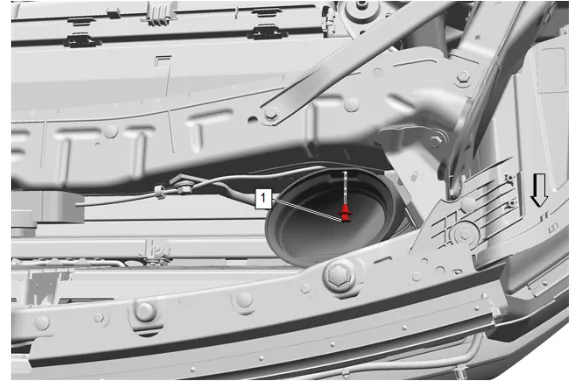

- Intake Air Duct Retainer (1) » Remove

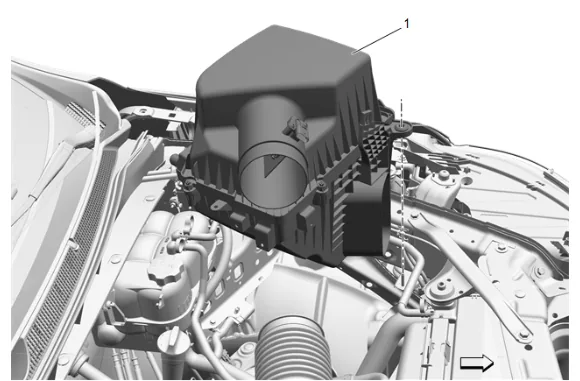

- Air Cleaner Assembly (1) » Remove

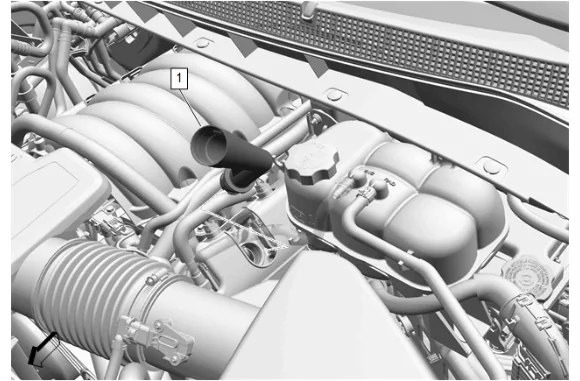

- Rotate the oil filler tube (1) counterclockwise and remove from the valve rocker arm cover.
-
Inspect the oil filler tube seal (2) on the oil filler tube (1) and replace as necessary. Installation Procedure
-
Lubricate the oil filler tube seal (2) with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
-
Install the oil filler tube (1) to the valve rocker arm cover and rotate clockwise to install.
-
Air Cleaner Assembly (1) » Install
-
Intake Air Duct Retainer (1) » Install
-
Air Inlet Grille Panel Retainer (1) » Install [9x]
-
Intake Air Splash Shield (2) » Install
-
Hood Secondary Latch Release Handle (2) » Install
-
Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Air Cleaner Nut (2) » Install and tighten — Fastener Specifications
-
Air Cleaner Outlet Duct (1) » Install
-
Connect the mass airflow sensor electrical connector (2) and engage all engine wiring harnesses to the air cleaner assembly.
-
Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications
-
Oil Filler Cap (1) » Install
