Front Floor Console Extension Panel Replacement - Right Side

Front Floor Console Extension Panel Replacement - Right Side Removal Procedure

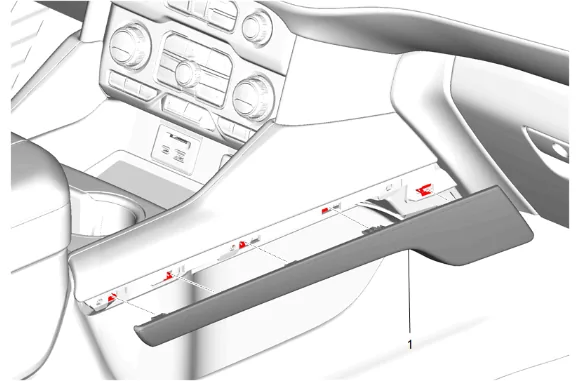

Front Floor Console Extension Panel Replacement - Right Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

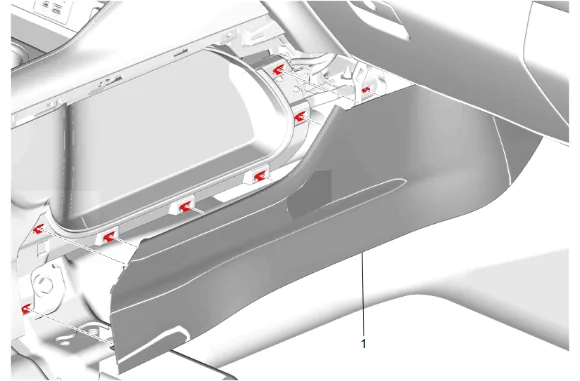

Front Floor Console Extension Panel Replacement - Right Side — figure 2

Note

Use a flat bladed plastic trim tool.

3. Move the front seat to access the retainers.

4. Front Floor Console Extension Panel (1) » Remove Installation Procedure

5. Front Floor Console Extension Panel (1) » Install

6. Front Floor Console Lower Applique (1) » Install
