Tahoe / Yukon Service Manual

3rd Row Seat Back Latch Cable Replacement (40 Percent)

Removal Procedure

3rd Row Seat Back Latch Cable Replacement (40 Percent) — figure 1
3rd Row Seat Back Latch Cable Replacement (40 Percent) — figure 1
  1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

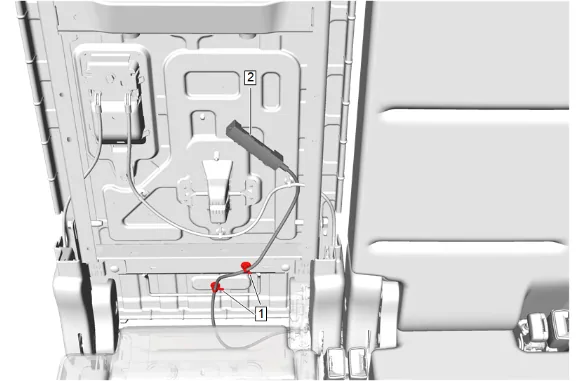

3rd Row Seat Back Latch Cable Replacement (40 Percent) — figure 2
3rd Row Seat Back Latch Cable Replacement (40 Percent) — figure 2

  1. Disconnect the 3rd row seat back latch cable end from the seat back latch.

  2. Using a suitable trim tool, release the cable retainers (1) from the seat back frame.

  3. 3rd Row Seat Back Latch Cable (2) » Remove Installation Procedure

  4. 3rd Row Seat Back Latch Cable (2) » Install

  5. Install the cable retainers (1) to the seat back frame.

  6. Connect the 3rd row seat back latch cable end to the seat back latch.

  7. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
