Liftgate Wiring Harness Replacement
Removal Procedure
- Open the liftgate window.

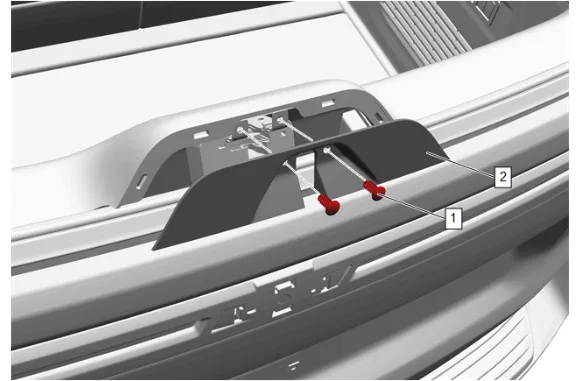

- Use a small flat-bladed tool to remove the 2 panel locators (1).
- Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Remove
- Use the appropriate trim tool to release the liftgate upper center trim finish panel (1) from the liftgate inner panel.
- Liftgate Upper Center Trim Finish Panel (1) » Remove
- Use a flat-bladed trim tool to aid in the removal of the liftgate upper side trim finish panels (1) from the liftgate.
- Liftgate Upper Side Trim Finish Panel (1) » Remove [2x]

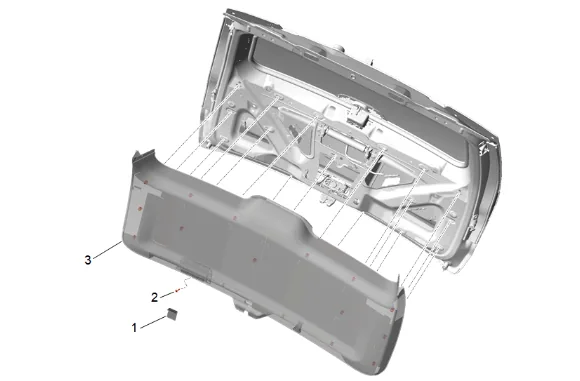

- Use a flat-bladed trim tool to aid in the removal of the rear compartment lid inner panel trim hole plug (1).
- Liftgate Lower Trim Finish Panel Bolt (2) » Remove
- Disconnect the electrical connector.
- Liftgate Lower Trim Finish Panel (3) » Remove
-
Reposition the liftgate weatherstrip and headliner as needed to gain access to electrical connections.
-
Disconnect the electrical connectors and wire harness retainers as needed.
-

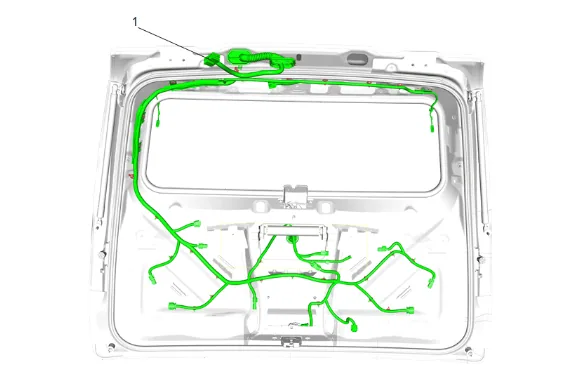

Liftgate Wiring Harness (1) » Remove Installation Procedure
-
Liftgate Wiring Harness (1) » Install
-
Connect the electrical connectors and wire harness retainers as needed.
-
Reposition and secure the headliner and liftgate weatherstrip.
-
Connect the electrical connector.
-
Liftgate Lower Trim Finish Panel (3) » Install
-
Liftgate Lower Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications
-
Rear Compartment Lid Inner Panel Trim Hole Plug(1) » Install
-
Liftgate Upper Side Trim Finish Panel (1) » Install [2x]
-
Liftgate Upper Center Trim Finish Panel (1) » Install
-
Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Install
-
Liftgate Trim Finish Panel Locator(1) » Install [2x]
-
Close the liftgate window.
