Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent)

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) Removal Procedure

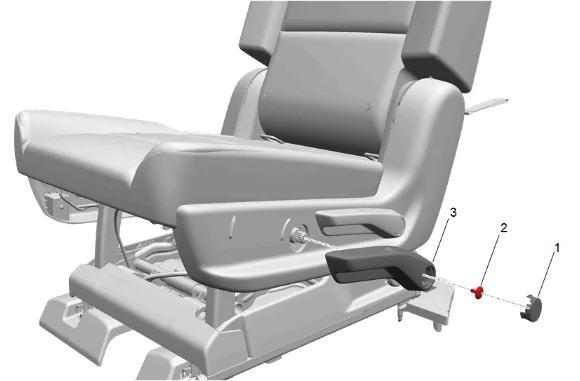

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 1

1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
2. Rear Seat Riser Bolt (2) » Remove
3. Rear Seat Adjuster Handle (3) » Remove

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 2

4. Rear Seat Recliner Handle Bolt Cap (1) » Remove
5. Rear Seat Riser Bolt (2) » Remove
6. Rear Seat Recliner Handle (3) » Remove

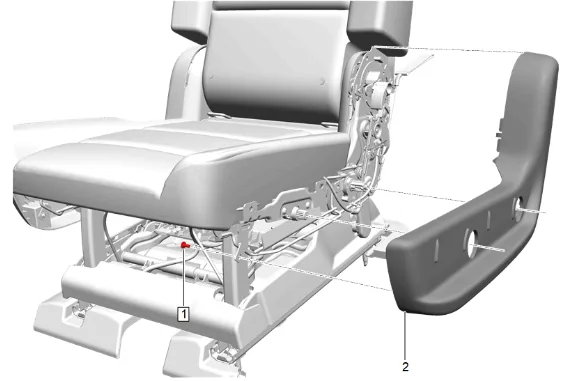

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 3

7. Front Seat Bolt (1) » Remove
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 4

10. Place the opposite rear seat in the fold and tumble position.
11. Front Seat Bolt (1) » Remove
12. Using a suitable plastic trim tool, release the retaining tabs.
13. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove

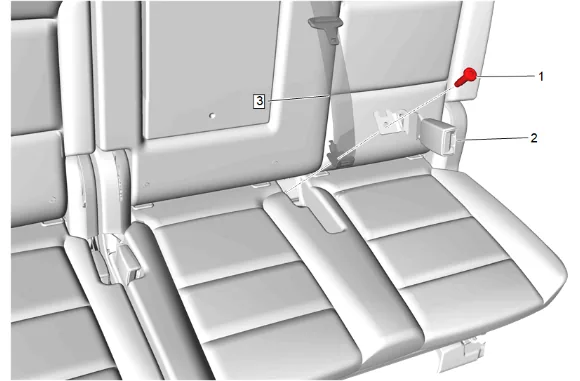

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 5

14. Rear Seat Center Belt Anchor Plate Bolt (1) » Remove
15. Rear Seat Belt Buckle (2) » Reposition
16. Reposition the rear seat center belt and anchor plate (3) as needed.

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 6

17. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
18. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).
19. Rear Seat Cushion Trim Panel (2) » Reposition

Rear Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 7

20. Remove the retainers holding the rear seat cushion cover (1) from the rear seat cushion frame.

21. Disconnect the electrical connectors and reposition the wiring harness as necessary.

22. Remove the rear seat cushion cover and pad (1) as an assembly. Installation Procedure

23. Install the rear seat cushion cover and pad (1) as an assembly.

24. Install the retainers holding the rear seat cushion cover to the rear seat cushion frame.

25. Connect the electrical connectors and position the wiring harness.

26. Rear Seat Cushion Trim Panel (2) » Install

27. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

28. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

29. Position the rear seat center belt and anchor plate (3) to the original location.

30. Rear Seat Belt Buckle (2) » Install

Caution

Refer to Fastener Caution.

9. Rear Seat Center Belt Anchor Plate Bolt (1) » Install and tighten — Fastener Specifications

10. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

11. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

12. Return the opposite rear seat to the original position.

13. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

14. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

15. Rear Seat Recliner Handle (3) » Install

16. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

17. Rear Seat Recliner Handle Bolt Cap (1) » Install

18. Rear Seat Adjuster Handle (3) » Install

19. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

20. Rear Seat Recliner Handle Bolt Cap (1) » Install
