Air Suspension Control Module Replacement

Removal Procedure

1. Remove the spare tire and wheel assembly.

Note

Service mode will be automatically enabled when the ride height sensors detect the vehicle has been lifted off the ground. Service mode will automatically be disabled when the vehicle reaches 16 km/h(10 MPH).

2. Raise and support the vehicle. Lifting and Jacking the Vehicle

Air Suspension Control Module Replacement — figure 1

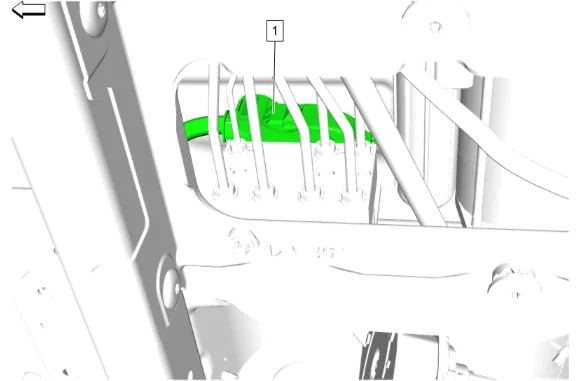

3. Electrical Connector (1) » Disconnect

Air Suspension Control Module Replacement — figure 2

4. Automatic Level Control Air Compressor Bolt (1) » Remove [2x]

Air Suspension Control Module Replacement — figure 3

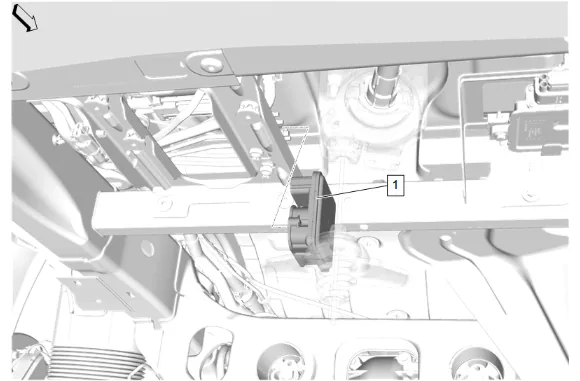

5. Air Suspension Control Module (1) » Remove Installation Procedure

6. Air Suspension Control Module (1) » Install

Caution

Refer to Fastener Caution.

2. Automatic Level Control Air Compressor Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Electrical Connector (1) » Connect

4. Remove the support and lower the vehicle.

5. Install the spare tire and wheel assembly.

6. After installation, program the automatic level control module. Control Module References

7. Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
