Case Extension Assemble (4WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4742148 Single Use Fasteners and Components Propeller Shaft Transmission Flange Fluid Seal Special Tools J-38869 Seal Installer Equivalent regional tools: Special Tools

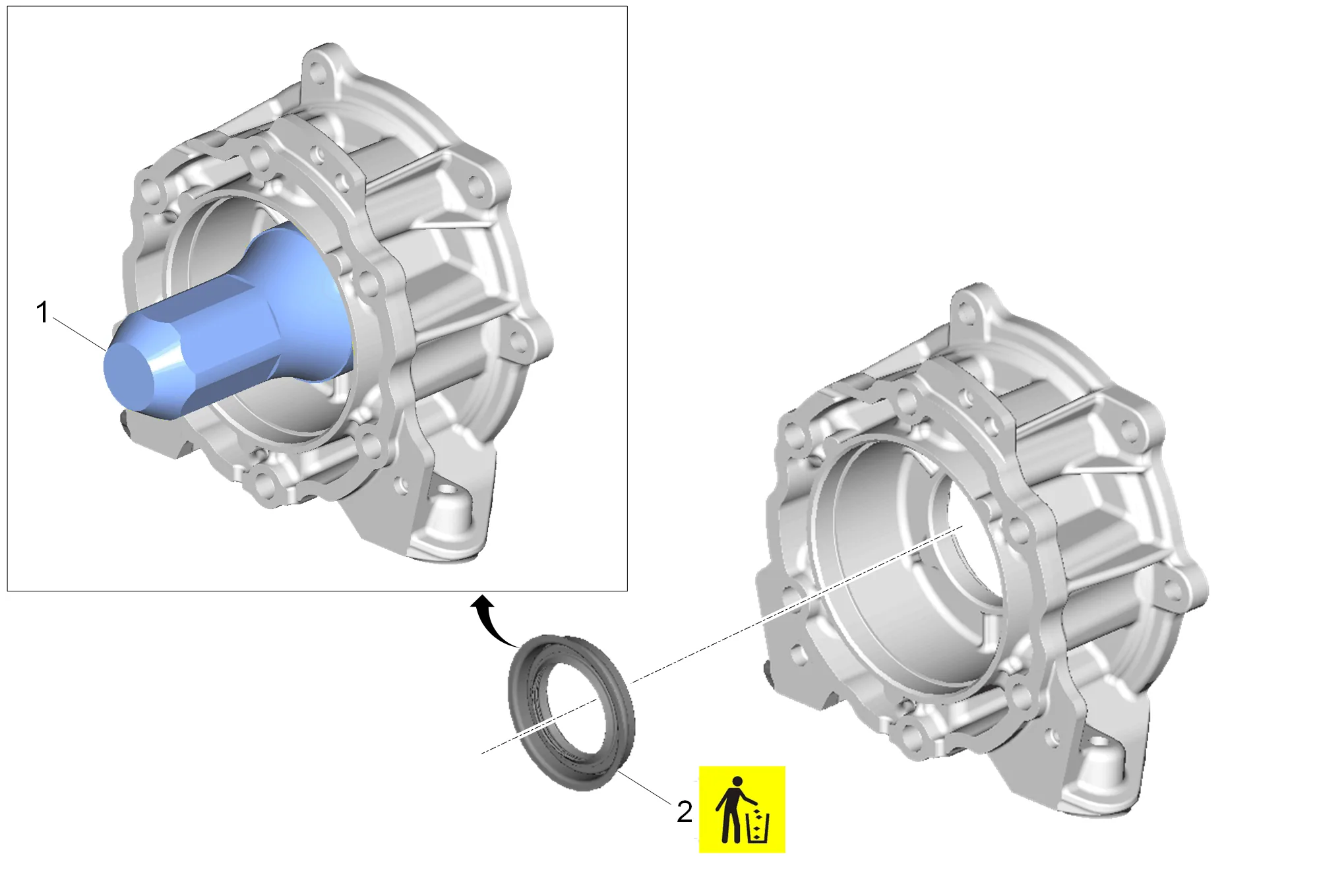

Case Extension Assemble (4WD) — figure 1

1. Use J-38869 Seal Installer (1) to install the Propeller Shaft Transmission Flange Fluid Seal (2).
2. Propeller Shaft Transmission Flange Fluid Seal (2) » Install NEW
