3rd Row Seat Head Restraint Guide Replacement

Removal Procedure

3rd Row Seat Head Restraint Guide Replacement — figure 1
3rd Row Seat Head Restraint Guide Replacement — figure 1
  1. Reposition the seat as necessary.
  2. Using a suitable plastic trim tool, release the 3rd row seat anchor plate bezel plastic retainers.
  3. 3rd Row Seat Anchor Plate Bezel - Outboard (1) » Remove
3rd Row Seat Head Restraint Guide Replacement — figure 2
3rd Row Seat Head Restraint Guide Replacement — figure 2
  1. { If equipped } Using a suitable plastic trim tool, release the retaining tabs.
  2. { If equipped } 3rd Row Seat Back Latch Release Handle Bezel (1) » Remove
  3. If equipped, feed the 3rd row seat pull strap through the bezel (1) to remove.
3rd Row Seat Head Restraint Guide Replacement — figure 3
3rd Row Seat Head Restraint Guide Replacement — figure 3
  1. Disengage the J-channel retainers from the seat back frame.
  2. Unzip the left and right seat back cover zippers.
  3. Reposition the seat back cover and pad as necessary to access the 3rd row seat head restraint cable (2).
  4. Using a suitable flat-bladed tool, open the 3rd row seat head restraint cable cover (1).
  5. Release the 3rd row seat head restraint cable (2).
3rd Row Seat Head Restraint Guide Replacement — figure 4
3rd Row Seat Head Restraint Guide Replacement — figure 4
  1. Using a suitable pointed or flat bladed tool, push the 3rd row seat head restraint guide clip (1)  rearward while pulling upward on the 3rd row seat head restraint (2).
  2. 3rd Row Seat Head Restraint (2) » Remove
3rd Row Seat Head Restraint Guide Replacement — figure 5
3rd Row Seat Head Restraint Guide Replacement — figure 5

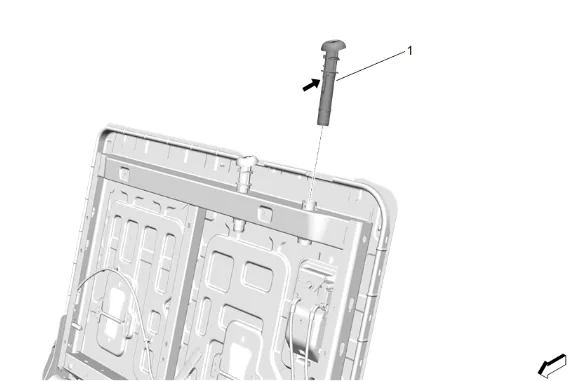

  1. Using a suitable flat-bladed tool, push the plastic tab of the 3rd row seat head restraint guide  (1) inward and pull upward to remove from the seat back frame. Installation Procedure

  2. 3rd Row Seat Head Restraint Guide (1) » Install

  3. 3rd Row Seat Head Restraint (2) » Install

  4. Install the 3rd row seat head restraint cable (2).

  5. Close the 3rd row seat head restraint cable cover (1).

  6. Position the seat back cover and pad to the original location.

  1. Zip the left and right seat back cover zippers.

  2. Engage the J-channel retainers to the seat back frame.

  3. If equipped, feed the 3rd row seat pull strap through the bezel (1) to install.

  4. { If equipped } 3rd Row Seat Back Latch Release Handle Bezel (1) » Install

  5. 3rd Row Seat Anchor Plate Bezel - Outboard (1) » Install

  6. Return the seat to its original position.
