Rear Drive Axle Disassembled View 1 of 3 (G86)

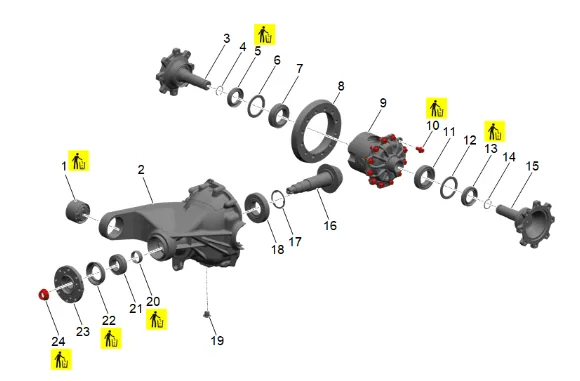

Rear Drive Axle Disassembled View 1 of 3 (G86) — figure 1

(1) Differential Carrier Bushing (2) Rear Axle Housing (3) Rear Axle Shaft (4) Rear Axle Shaft Retaining Ring (5) Rear Axle Shaft Seal (6) Differential Bearing Spacer (7) Differential Bearing (8) Differential Ring Gear (9) Differential (10) Differential Ring Gear Bolt [12x] (11) Differential Bearing (12) Differential Bearing Spacer (13) Rear Axle Shaft Seal (14) Rear Axle Shaft Retaining Ring (15) Rear Axle Shaft (16) Differential Drive Pinion Gear (17) Differential Drive Pinion Gear Shim (18) Differential Drive Pinion Gear Inner Bearing (19) Rear Axle Housing Drain Plug (20) Differential Drive Pinion Gear Bearing Spacer (21) Differential Drive Pinion Gear Outer Bearing (22) Differential Drive Pinion Gear Seal (23) Differential Drive Pinion Gear Yoke (24) Differential Drive Pinion Gear Nut
