Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console)

Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console)

  1. Disable the SIR system. SIR Disabling and Enabling
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 1
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 1
  1. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Remove
  2. Remove the driver seat. Front Seat Removal and Installation
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 2
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 2

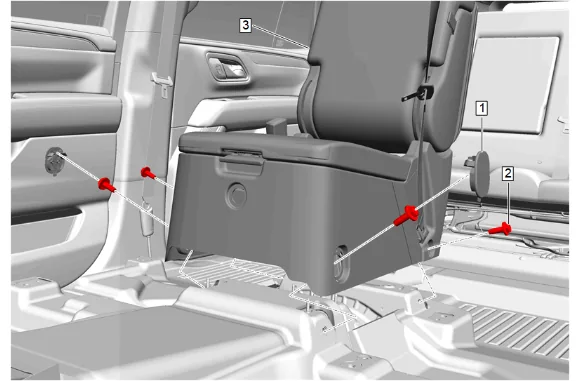

  1. { If equipped } Front Center Seat (3) » Remove — Front Center Seat Removal and Installation
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 3
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 3

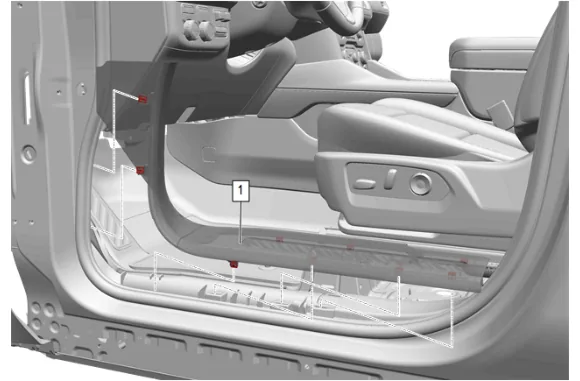

  1. Starting at the rear of the front side door sill garnish molding (1) pull upward at the B-pillar joint to disengage the garnish molding.
  2. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
  3. Front Side Door Sill Garnish Molding (1) » Remove
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 4
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 4

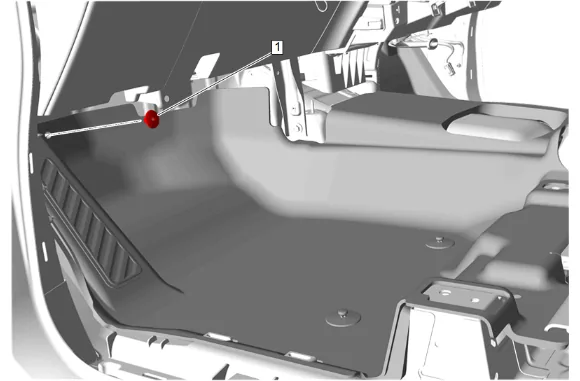

  1. Floor Carpet Retainer Button (1) » Remove
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 5
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 5

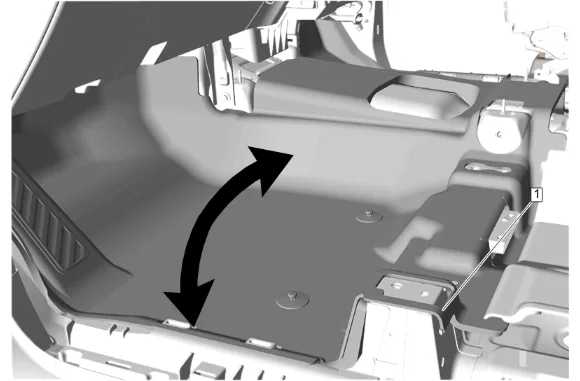

  1. Reposition the left side of the front floor panel mat (1) towards the right side to access the floor rear air outlet duct.
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 6
Floor Rear Air Outlet Duct Replacement - Left Side (9C1, BG9, without Front Floor Console) — figure 6

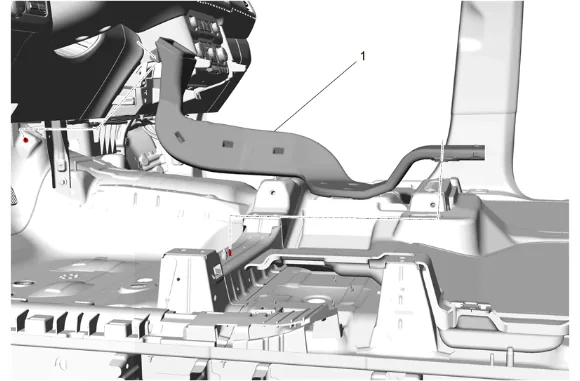

  1. Floor Rear Air Outlet Duct - Left Side (1) » Remove Installation Procedure

  2. Floor Rear Air Outlet Duct - Left Side (1) » Install

  3. Return the left side of the front floor panel mat (1) back to the carpet original position.

  4. Floor Carpet Retainer Button (1) » Install

  5. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

  6. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

  7. Front Side Door Sill Garnish Molding (1) » Install

  8. { If equipped } Front Center Seat (3) » Install — Front Center Seat Removal and Installation

  9. Install the driver seat. Front Seat Removal and Installation

  10. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Install

  11. Enable the SIR System. SIR Disabling and Enabling
