Tahoe / Yukon Service Manual

Tow Vehicle Electrical Receptacle Replacement

Removal Procedure

Tow Vehicle Electrical Receptacle Replacement — figure 1
Tow Vehicle Electrical Receptacle Replacement — figure 1
  1. Turn the 2 rear bumper fascia trailer hitch cover retainers (1)  a quarter turn counter clockwise and remove.
  2. Carefully release the tabs and pull the rear bumper fascia trailer hitch cover (2)  down from the rear bumper fascia.
Tow Vehicle Electrical Receptacle Replacement — figure 2
Tow Vehicle Electrical Receptacle Replacement — figure 2

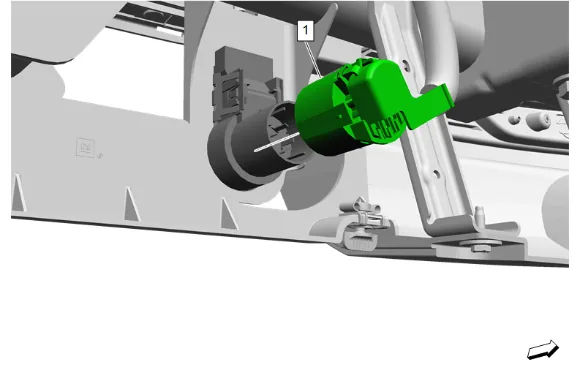

  1. Electrical Connector (1) @ Tow Vehicle Electrical Receptacle » Disconnect
Tow Vehicle Electrical Receptacle Replacement — figure 3
Tow Vehicle Electrical Receptacle Replacement — figure 3

  1. Tow Vehicle Electrical Receptacle (1) » Remove Installation Procedure

  2. Tow Vehicle Electrical Receptacle (1) » Install

  3. Electrical Connector (1) @ Tow Vehicle Electrical Receptacle » Connect

  4. Rear Bumper Fascia Trailer Hitch Cover (2) » Install

  5. Rear Bumper Fascia Trailer Hitch Cover Retainer (1) » Install [2x]
