Front Seat Center Armrest Hinge Finish Cover Replacement - Right Side Lower

Front Seat Center Armrest Hinge Finish Cover Replacement - Right Side Lower Removal Procedure

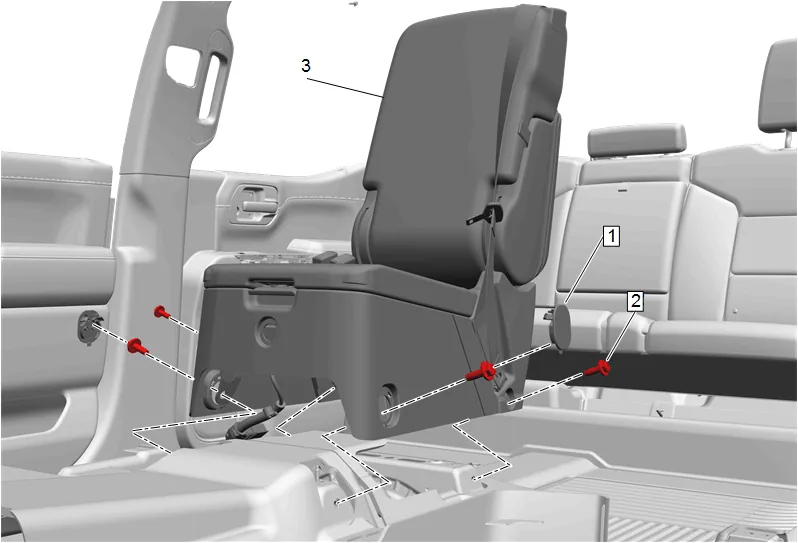

Front Seat Center Armrest Hinge Finish Cover Replacement - Right Side Lower — figure 1

1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation

Front Seat Center Armrest Hinge Finish Cover Replacement - Right Side Lower — figure 2

2. Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower retaining clips.

Note

Seat belt retaining bushings are for manufacturing purposes only.

3. Remove and DISCARD seat belt retaining bushings.

4. Front Seat Center Belt Buckle » Remove

5. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Remove Installation Procedure

6. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install

7. Front Seat Center Belt Buckle » Install

8. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
