Positive Crankcase Ventilation Fresh Air Tube Replacement

Positive Crankcase Ventilation Fresh Air Tube Replacement Removal Procedure

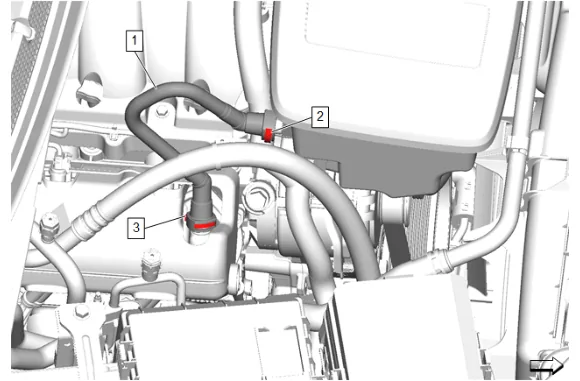

Positive Crankcase Ventilation Fresh Air Tube Replacement — figure 1

1. Positive Crankcase Ventilation Tube Connector (2) @ Air Cleaner Outlet Duct » Disconnect — Plastic Collar Quick Connect Fitting Service

2. Positive Crankcase Ventilation Tube Connector (3) @ Positive Crankcase Ventilation Fitting » Disconnect — Plastic Collar Quick Connect Fitting Service

3. Positive Crankcase Ventilation Fresh Air Tube (1) » Remove Installation Procedure

4. Positive Crankcase Ventilation Fresh Air Tube (1) » Install

5. Positive Crankcase Ventilation Tube Connector (3) @ Positive Crankcase Ventilation Fitting » Connect — Plastic Collar Quick Connect Fitting Service

6. Positive Crankcase Ventilation Tube Connector (2) @ Air Cleaner Outlet Duct » Connect — Plastic Collar Quick Connect Fitting Service
