Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (60 Percent)

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (60 Percent) Single Use Fasteners and Components Tie Strap Removal Procedure

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (60 Percent) — figure 1

1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

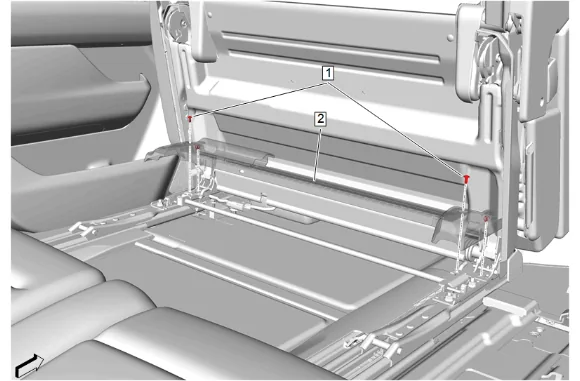

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (60 Percent) — figure 2

2. Place the rear seat in the fold and tumble position.
3. Disconnect the wiring harness retainers.
4. Front Seat Bolt (1) » Remove [2x]
5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Rear Seat Track Finish Cover (2) » Remove
7. Release the cable end from the seat frame.
8. Return the rear seat to the original position.

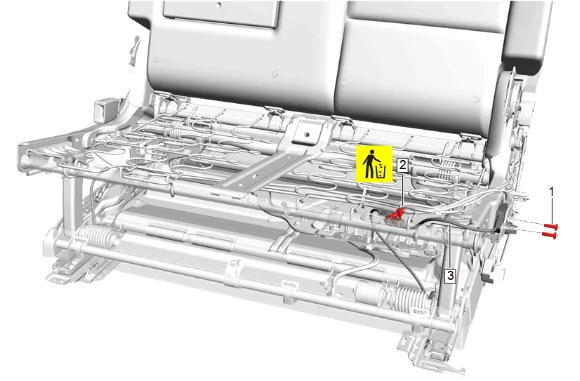

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (60 Percent) — figure 3

Note

Note the location and routing of the seat cable to ensure proper installation.

9. Rear Seat Bolt (1) » Remove [2x]

10. Tie Strap (2) » Remove and DISCARD

11. Rear Seat Latch Cable - Track Release Comfort Adjustment (3) » Remove Installation Procedure

12. Rear Seat Latch Cable - Track Release Comfort Adjustment (3) » Install

13. Tie Strap (2) » Install NEW

Caution

Refer to Fastener Caution.

3. Rear Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Following complete cable installation, push in the free length adjuster clip to set cable length.

5. Place the rear seat in the fold and tumble position.

6. Install the cable end into the seat frame.

7. Rear Seat Track Finish Cover (2) » Install

8. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Connect the wiring harness retainers.

10. Return the rear seat to the original position.

11. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
