Case Extension Assembly Removal (2WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4738383 Single Use Fasteners and Components Automatic Transmission Case Extension Seal Automatic Transmission Case Extension Seal — Lube Oil

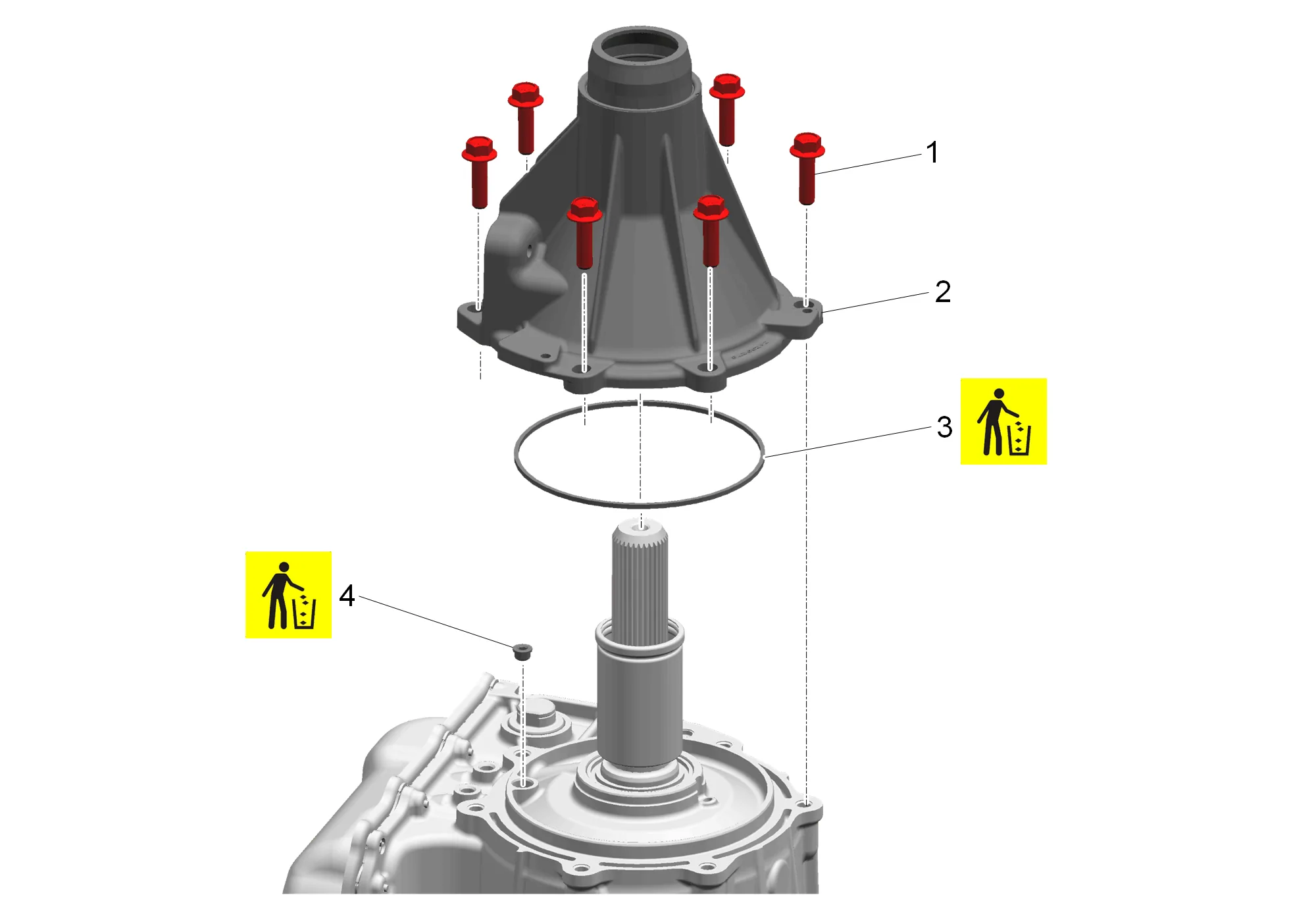

Case Extension Assembly Removal (2WD) — figure 1

1. Automatic Transmission Case Extension Bolt (1) » Remove [6x]
2. Automatic Transmission Case Extension (2) » Remove
3. Allow any remaining transmission fluid to drain from the case extension.
4. Automatic Transmission Case Extension Seal (3) » Remove and DISCARD
5. Automatic Transmission Case Extension Seal — Lube Oil (4) » Remove and DISCARD
