Front Seat Lumbar Switch Replacement

Removal Procedure

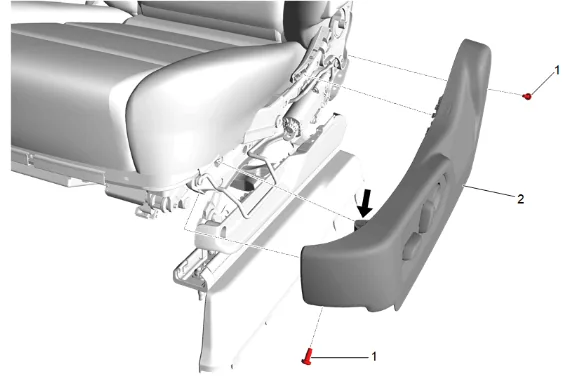

Front Seat Lumbar Switch Replacement — figure 1

1. Reposition the seat as necessary to access the bolts.
2. Front Seat Bolt (1) » Remove [2x]
3. Squeeze the front seat cushion outer finish cover retainer to release it from the seat frame.
4. Disconnect the electrical connectors.
5. Lift the front seat cushion outer finish cover (2) to release it from the front seat cushion cover wire retainer.
6. Front Seat Cushion Outer Finish Cover (2) » Remove

Front Seat Lumbar Switch Replacement — figure 2

7. Front Seat Lumbar Switch (1) » Remove Installation Procedure

8. Front Seat Lumbar Switch (1) » Install

9. Connect the electrical connectors.

10. Front Seat Cushion Outer Finish Cover (2) » Install

Caution

Refer to Fastener Caution.

4. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications
5. Return the seat to its original position.
