Rear Seat Belt Buckle Replacement (60 Percent without UH5)

Rear Seat Belt Buckle Replacement (60 Percent without UH5) Removal Procedure

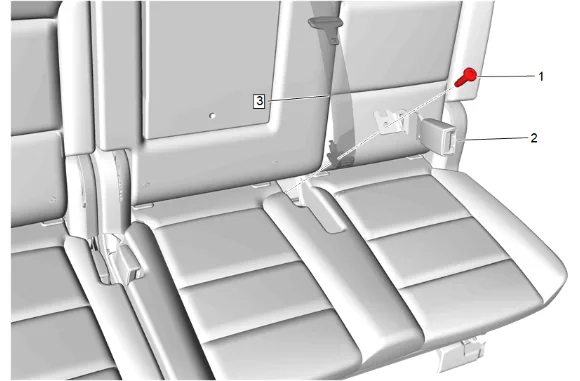

Rear Seat Belt Buckle Replacement (60 Percent without UH5) — figure 1

1. Rear Seat Center Belt Anchor Plate Bolt (1) » Remove

2. Rear Seat Belt Buckle (2) » Remove

3. Reposition the rear seat center belt and anchor plate (3) as needed. Installation Procedure

4. Position the rear seat center belt and anchor plate (3) to the original location.

5. Rear Seat Belt Buckle (2) » Install

Caution

Refer to Fastener Caution.

3. Rear Seat Center Belt Anchor Plate Bolt (1) » Install and tighten — Fastener Specifications
