Radio Control Replacement

Removal Procedure

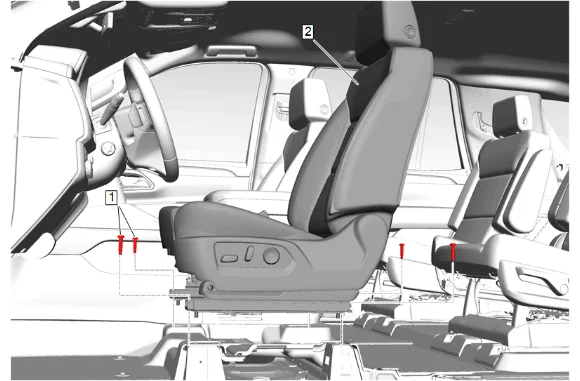

Radio Control Replacement — figure 1

1. Front Seat (2) » Reposition [2x] — Front Seat Removal and Installation

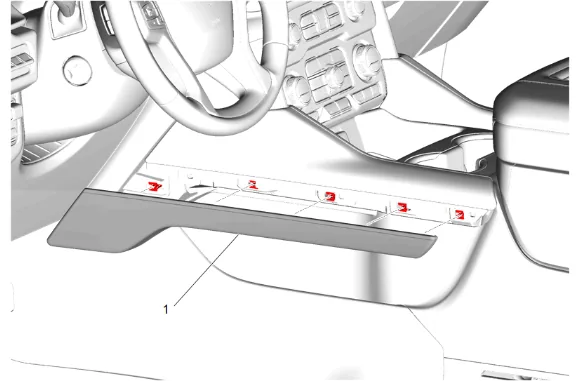

Radio Control Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

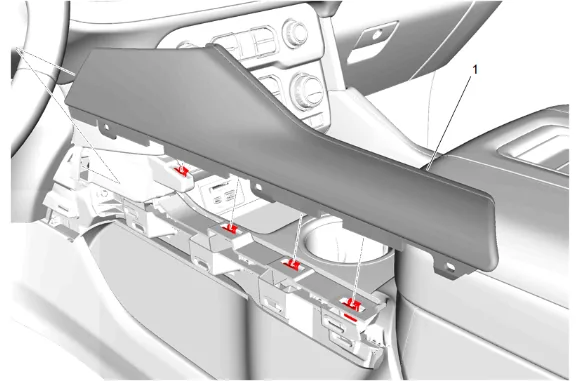

Radio Control Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

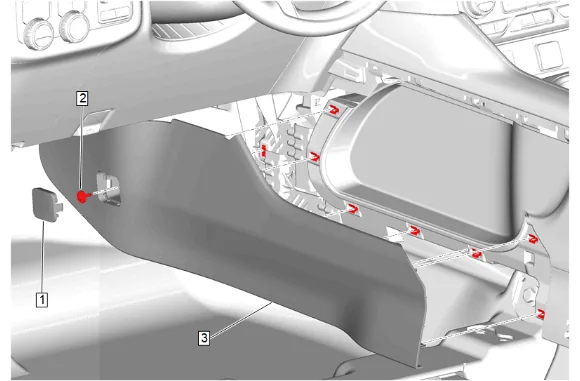

Radio Control Replacement — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Move the front seat to access the retainers.
9. Front Floor Console Extension Panel (3) » Remove

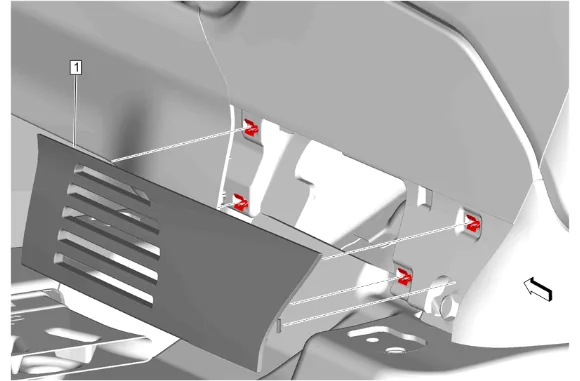

Radio Control Replacement — figure 5

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Front Floor Console Bolt Access Hole Cover (1) » Remove

Radio Control Replacement — figure 6

12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Radio Control Replacement — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Trim Plate Applique (1) » Remove

Radio Control Replacement — figure 8

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Center Trim Plate Applique (1) » Remove

Radio Control Replacement — figure 9

18. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

21. Instrument Panel Trim Pad (2) » Remove

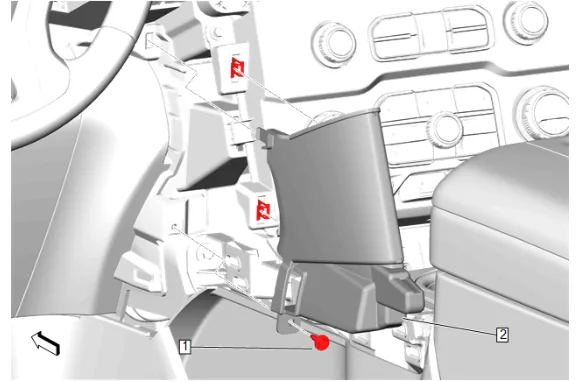

Radio Control Replacement — figure 10

22. Instrument Panel Lower Trim Panel Bolt (1) » Remove
23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

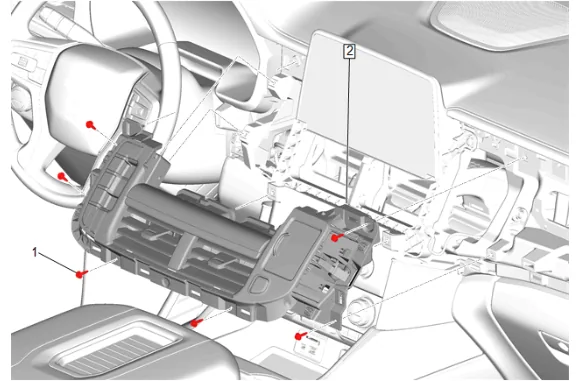

Radio Control Replacement — figure 11

25. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
26. Disconnect the electrical connectors.
27. Instrument Panel Transmission Shift Opening Cover (2) » Remove

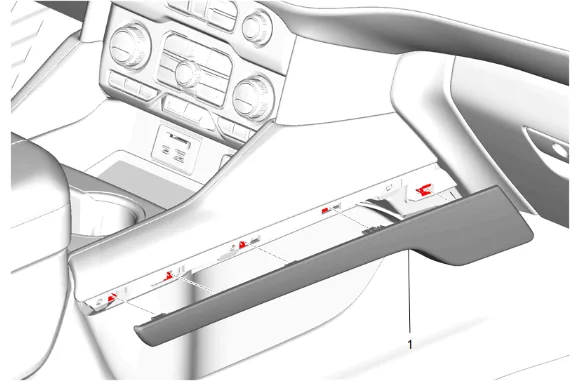

Radio Control Replacement — figure 12

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Lower Applique (1) » Remove

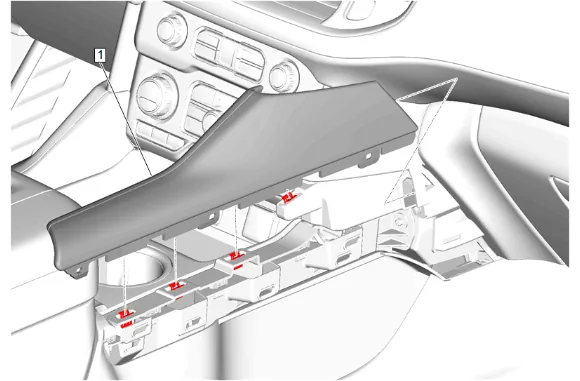

Radio Control Replacement — figure 13

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Front Floor Console Applique (1) » Remove

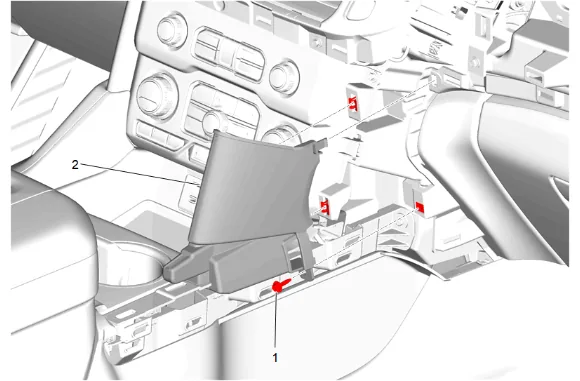

Radio Control Replacement — figure 14

32. Instrument Panel Lower Trim Panel Bolt (1) » Remove
33. Using a flat-bladed plastic trim tool, release the retaining clips.
34. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

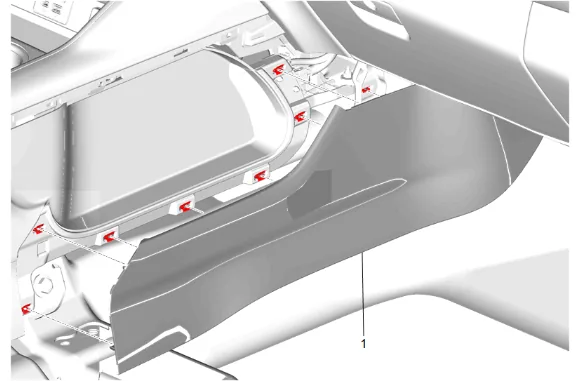

Radio Control Replacement — figure 15

Note

Use a flat bladed plastic trim tool.

35. Front Floor Console Extension Panel (1) » Remove

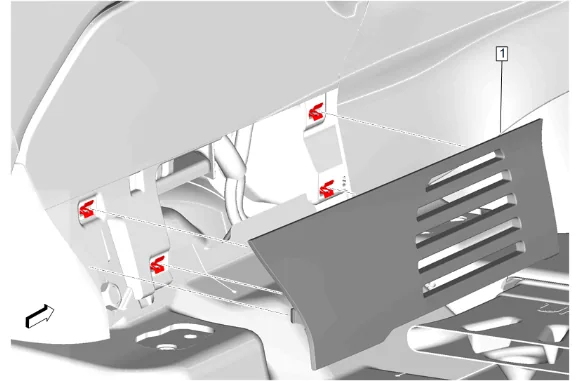

Radio Control Replacement — figure 16

36. Using a flat-bladed plastic trim tool, release the retaining clips.
37. Front Floor Console Bolt Access Hole Cover (1) » Remove

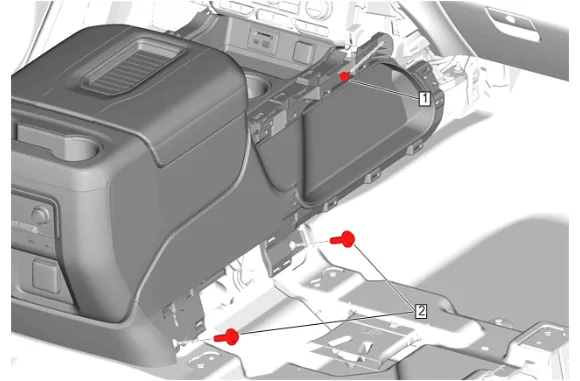

Radio Control Replacement — figure 17

38. Front Floor Console Retainer Bolt (1) » Remove
39. Front Floor Console Bolt (2) » Remove [2x]

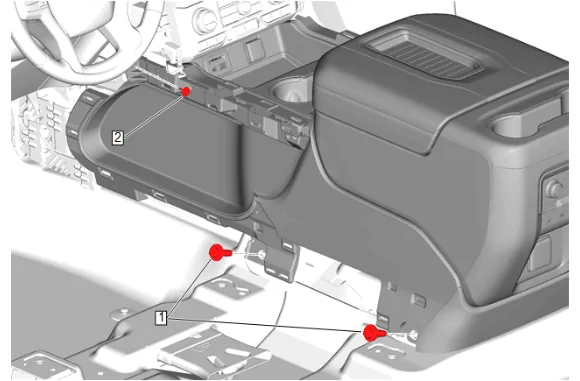

Radio Control Replacement — figure 18

40. Front Floor Console Bolt (1) » Remove [2x]
41. Front Floor Console Retainer Bolt (2) » Remove

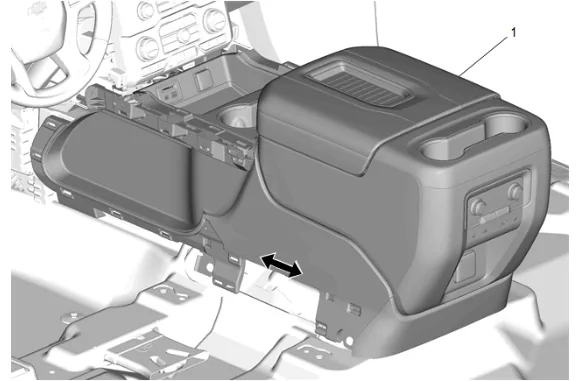

Radio Control Replacement — figure 19

42. Slide the front floor console (1) back to clear the instrument panel accessory bezel.

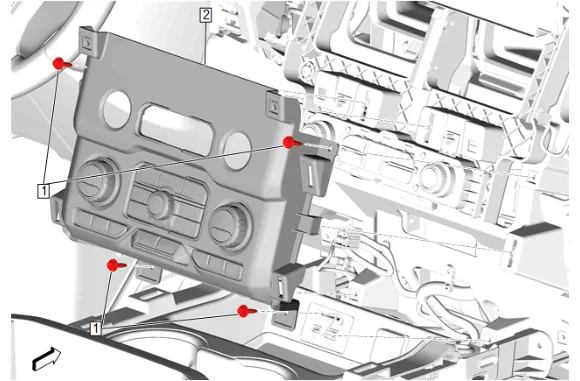

Radio Control Replacement — figure 20

43. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

44. Instrument Panel Accessory Bezel (2) » Remove
45. Disconnect the electrical connectors.

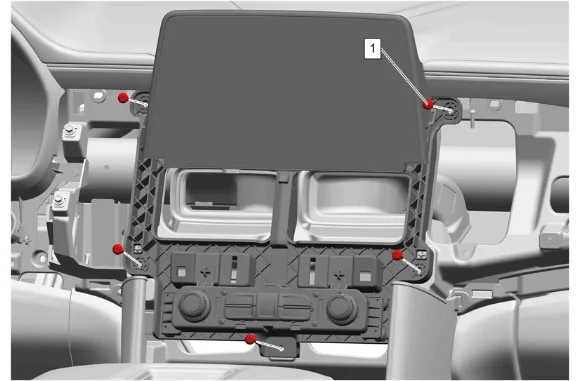

Radio Control Replacement — figure 21

46. Radio Control Bolt (1) » Remove [5x]

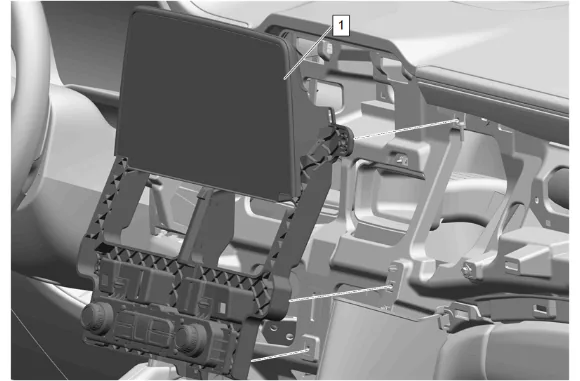

Radio Control Replacement — figure 22

47. Radio Control (1) » Remove

48. Disconnect the electrical connectors. Installation Procedure

49. Connect the electrical connectors.

50. Radio Control (1) » Install

Caution

Refer to Fastener Caution.

3. Radio Control Bolt (1) » Install and tighten [5x] — Fastener Specifications

4. Connect the electrical connectors.

5. Instrument Panel Accessory Bezel (2) » Install

Caution

Refer to Fastener Caution.

6. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

7. Slide the front floor console (1) back into the instrument panel.

8. Front Floor Console Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Front Floor Console Retainer Bolt (2) » Install and tighten — Fastener Specifications

10. Front Floor Console Retainer Bolt (1) » Install and tighten — Fastener Specifications

11. Front Floor Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

12. Front Floor Console Bolt Access Hole Cover (1) » Install

13. Front Floor Console Extension Panel (1) » Install

14. Instrument Panel Lower Center Trim Plate Applique (2) » Install

15. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

16. Front Floor Console Applique (1) » Install

17. Front Floor Console Lower Applique (1) » Install

18. Connect the electrical connectors.

19. Instrument Panel Transmission Shift Opening Cover (2) » Install

20. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

21. Instrument Panel Lower Center Trim Plate Applique (2) » Install

22. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

23. Connect the electrical connector.

24. Instrument Panel Trim Pad (2) » Install

25. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

26. Instrument Panel Center Trim Plate Applique (1) » Install

27. Instrument Panel Trim Plate Applique (1) » Install

28. Instrument Panel Fuse Block Access Hole Cover (1) » Install

29. Front Floor Console Bolt Access Hole Cover (1) » Install

30. Front Floor Console Extension Panel (3) » Install

Caution

Refer to Fastener Caution.

31. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

32. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

33. Front Floor Console Applique (1) » Install

34. Front Floor Console Lower Applique (1) » Install

35. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
