Front Compartment Side Rail Bracket Replacement - Rear (Right)

Removal Procedure

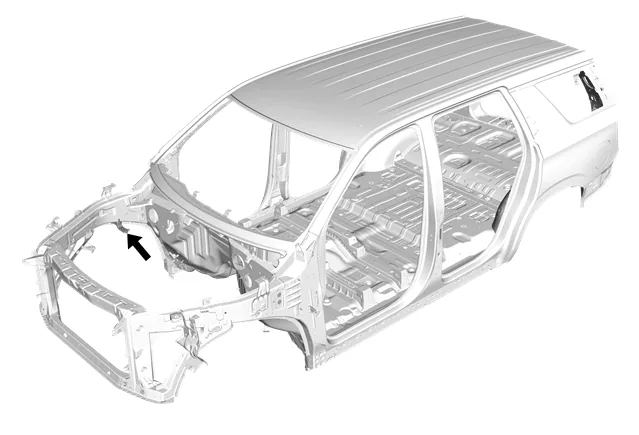

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 1

Warning

Refer to Approved Equipment for Collision Repair Warning.

Warning

Refer to Collision Sectioning Warning.

Warning

Refer to Glass and Sheet Metal Handling Warning.

Note

Squeeze Type Resistance Spot Welds (STRSW) are recommended. If access to use Squeeze Type Resistance Spot Welds is not possible, MIG/MAG 8 mm (5/16 in) plug welds may be used, to replace those specific welds, unless otherwise noted:

Note

The rear rail bracket is mild steel. Mild Steel.

Note

Refer to Collision Repair Specifications

1. Disable the SIR system. SIR Disabling and Enabling.
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Remove all related panels and components.
4. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 2

Note

Do not damage or cut attaching panels and reinforcements.

5. Remove spot welds (1). [6X]

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 3

6. Remove rear rail bracket (1) from the vehicle. Installation Procedure

Note

Prepare service part before installation.

Note

Squeeze Type Resistance Spot Welds (STRSW) are recommended. If access to use Squeeze Type Resistance Spot Welds is not possible, MIG/MAG 8 mm (5/16 in) plug welds may be used, to replace those specific welds, unless otherwise noted:

1. Prepare rear rail bracket per installation requirements.
2. Prepare all joining surfaces for welding as necessary.
3. Apply weld-thru coating or equivalent to all welding surfaces. Anti-Corrosion Treatment and Repair

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 4

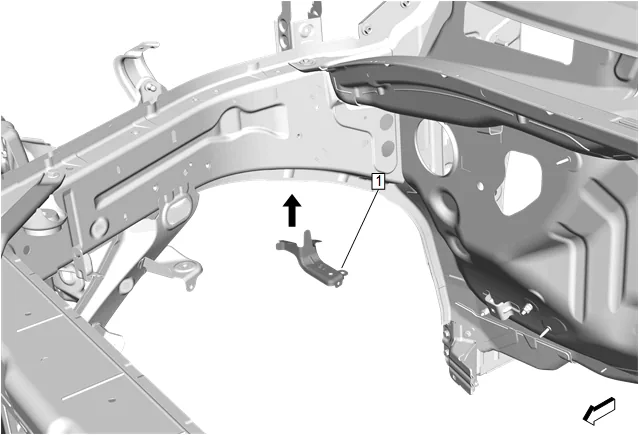

4. Position rear rail bracket (1) to vehicle using 3–dimensional measuring equipment and clamp into place.

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 5

5. Rear rail bracket (1) will be located 24 mm (0.9”) from inner side rail sectioning mark (2).

Front Compartment Side Rail Bracket Replacement - Rear (Right) — figure 6

6. Install spot welds (1). [6X]
7. Apply the sealers and anti-corrosion materials to the repair area as necessary. Anti-Corrosion Treatment and Repair

Note

Before refinishing, refer to Anti-Corrosion Treatment and Repair.

8. Paint the repaired area. Basecoat/Clearcoat Paint Systems.
9. Install all related panels and components.
10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
11. Enable the SIR System. SIR Disabling and Enabling.
