Heater and Air Conditioning User Interface Control Replacement (with DCH)

Heater and Air Conditioning User Interface Control Replacement (with DCH) Removal Procedure

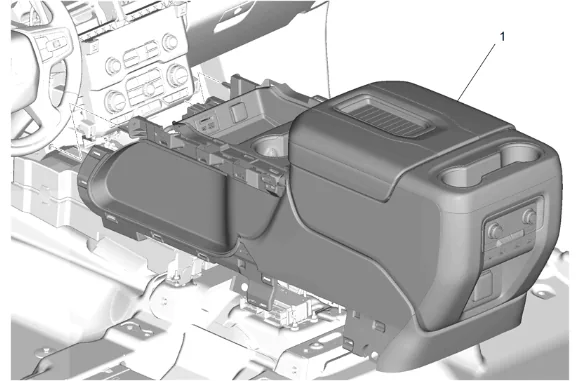

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 1

1. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 4

6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Instrument Panel Center Trim Plate Applique (1) » Remove

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 5

8. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
9. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

10. Instrument Panel Trim Pad (2) » Remove
11. Disconnect the electrical connector.

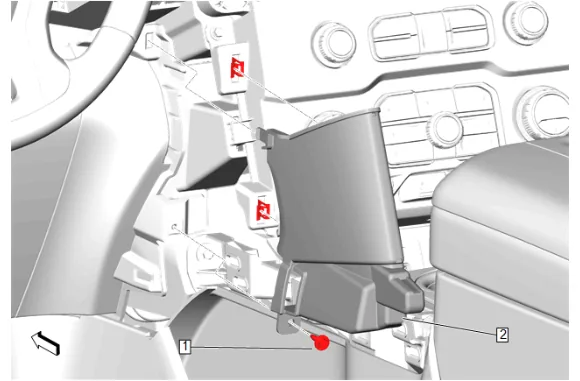

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 6

12. Instrument Panel Lower Trim Panel Bolt (1) » Remove
13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

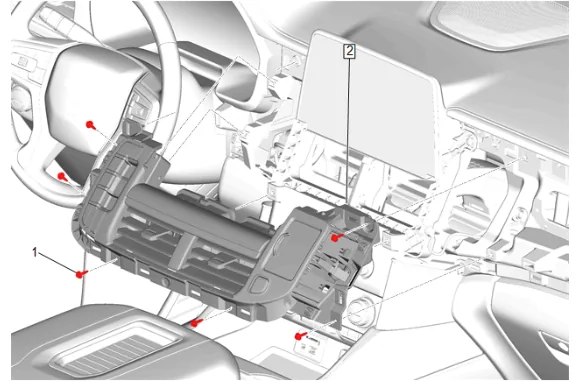

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 7

15. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
16. Instrument Panel Transmission Shift Opening Cover (2) » Remove
17. Disconnect the electrical connectors.

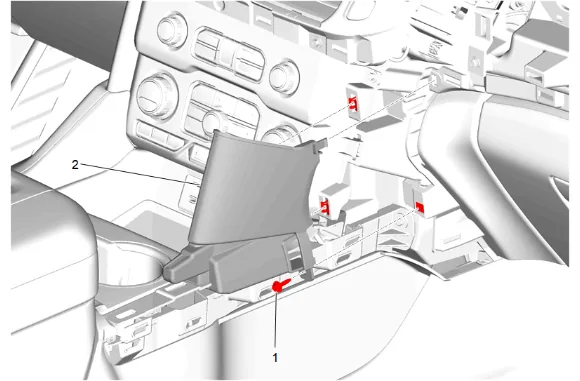

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 8

18. Instrument Panel Lower Trim Panel Bolt (1) » Remove
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

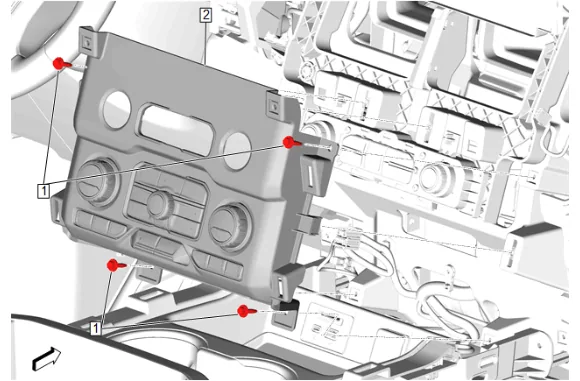

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 9

21. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

22. Instrument Panel Accessory Bezel (2) » Remove
23. Disconnect the electrical connectors.

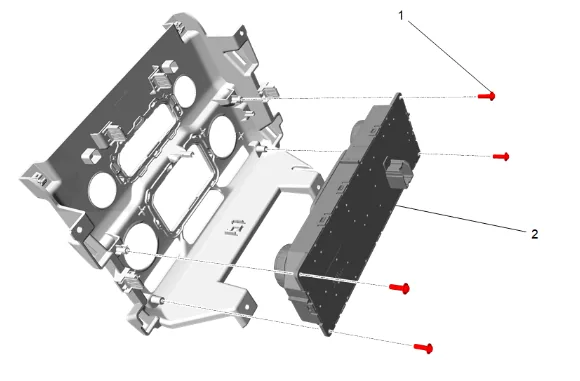

Heater and Air Conditioning User Interface Control Replacement (with DCH) — figure 10

24. Heater and Air Conditioning User Interface Control Bolt (1) » Remove [4x]

25. Heater and Air Conditioning User Interface Control (2) » Remove Installation Procedure

26. Heater and Air Conditioning User Interface Control (2) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning User Interface Control Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connectors.

4. Instrument Panel Accessory Bezel (2) » Install

5. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

6. Instrument Panel Lower Center Trim Plate Applique (2) » Install

7. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

8. Connect the electrical connectors.

9. Instrument Panel Transmission Shift Opening Cover (2) » Install

10. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

11. Instrument Panel Lower Center Trim Plate Applique (2) » Install

12. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

13. Connect the electrical connector.

14. Instrument Panel Trim Pad (2) » Install

15. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

16. Instrument Panel Center Trim Plate Applique (1) » Install

17. Instrument Panel Trim Plate Applique (1) » Install

18. Instrument Panel Fuse Block Access Hole Cover (1) » Install

19. Front Floor Console (1) » Install — Front Floor Console Removal and Installation
