Special Tools (Mechanical Tools)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Special Tools and Equipment | Document ID: 5906092 Illustration Tool Number/Description

Special Tools (Mechanical Tools) — figure 1

CH 45722 Fuel Sender Lock Ring Wrench

Special Tools (Mechanical Tools) — figure 2

CH 47831 Fuel Line Disconnect Tool

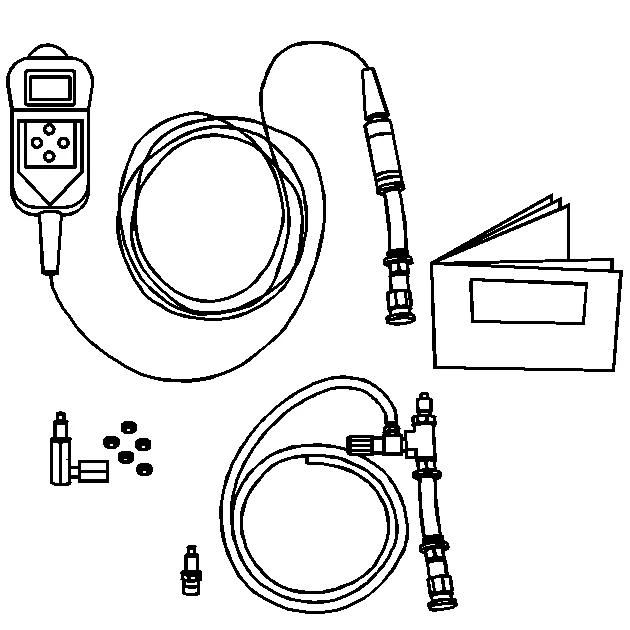

Special Tools (Mechanical Tools) — figure 3

CH 48027 Digital Pressure Gauge

Special Tools (Mechanical Tools) — figure 4

EN 49248 Injector Rail Assembly Remover

Special Tools (Mechanical Tools) — figure 5

EN 51092

Illustration Tool Number/Description Fuel Pump Installation Gauge

Special Tools (Mechanical Tools) — figure 6

EN 51097 Injector Retaining Clip Installer

Special Tools (Mechanical Tools) — figure 7

EN–51105 Injector Seal Installer Adapters

Special Tools (Mechanical Tools) — figure 8

EN 51955 Fuel Injection Seal Installer Sizer

Illustration	Tool Number/Description
	J 34730–1A Fuel Pressure Gauge
	J-41769-1 Fuel Line Quick Disconnect Tool
	J-41769-2 Fuel Line Quick Disconnect Tool
	J 42982 Fuel Pressure Gauge Adapter
