Front Brake Caliper Hardware Replacement (J61)

Warning

Brake Dust Warning

Note

Use all components included with the service kit. Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle
2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

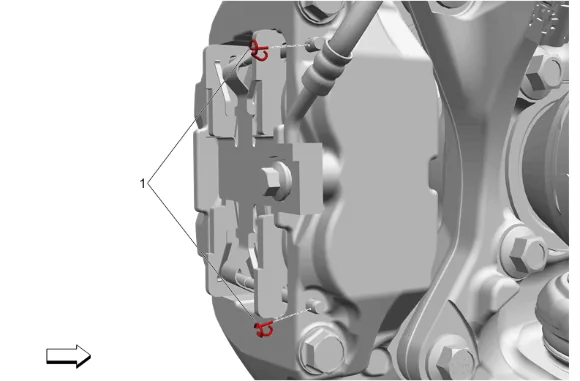

Front Brake Caliper Hardware Replacement (J61) — figure 1

3. Front Brake Caliper Guide Pin Clip (1) » Remove [2x]

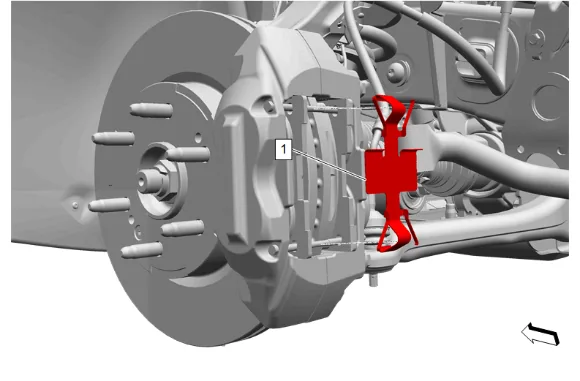

Front Brake Caliper Hardware Replacement (J61) — figure 2

4. Front Disc Brake Pad Retaining Spring (1) » Remove

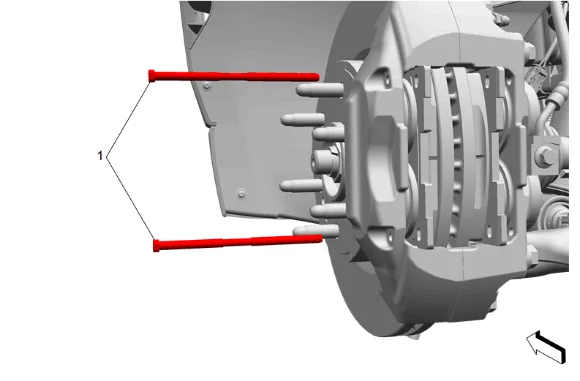

Front Brake Caliper Hardware Replacement (J61) — figure 3

5. Front Brake Caliper Guide Pin (1) » Remove [2x] Installation Procedure

6. Front Brake Caliper Guide Pin (1) » Install [2x]

7. Front Disc Brake Pad Retaining Spring (1) » Install

8. Front Brake Caliper Guide Pin Clip (1) » Install [2x]

9. Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation

10. Remove the support and lower the vehicle.
