Tahoe / Yukon Service Manual

Fuel Feed Hose Replacement - Front (Short Wheelbase)

  1. Turn OFF the engine for 30 seconds before proceeding to purge the fuel pressure from the complete fuel system.
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Drain the water-in-fuel separator. Water-in-Fuel Draining
  4. Disconnect the electrical connector.

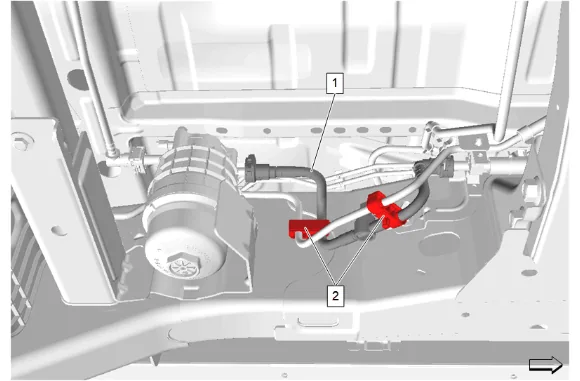

Fuel Feed Hose Replacement - Front (Short Wheelbase) — figure 1
Fuel Feed Hose Replacement - Front (Short Wheelbase) — figure 1

  1. Fuel Feed Hose (1) » Disconnect [2x] — Plastic Collar Quick Connect Fitting Service

  2. Fuel Feed Hose (1) @ Retainer (2) » Disengage [2x]

  3. Fuel Feed Hose (1) » Remove Installation Procedure

  4. Fuel Feed Hose (1) » Install

  5. Fuel Feed Hose (1) @ Retainer (2) » Engage [2x]

  6. Fuel Feed Hose (1) » Connect [2x] — Plastic Collar Quick Connect Fitting Service

  7. Connect the electrical connector.

  8. Lower the vehicle.

  9. Prime the fuel system and inspect for fuel leaks. Fuel System Priming
