Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07)

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) Removal Procedure

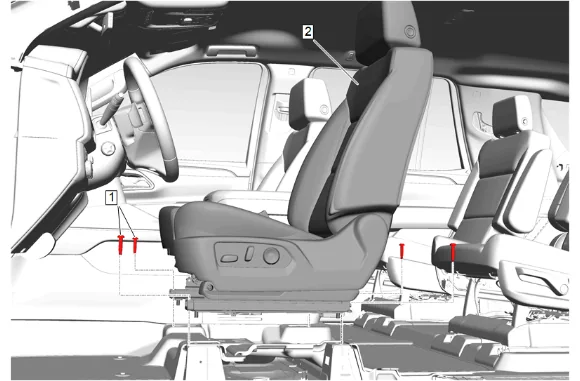

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 1

1. Front Seat (2) » Reposition [2x] — Front Seat Removal and Installation

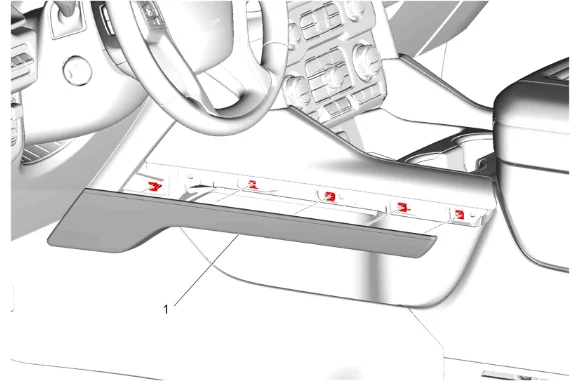

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

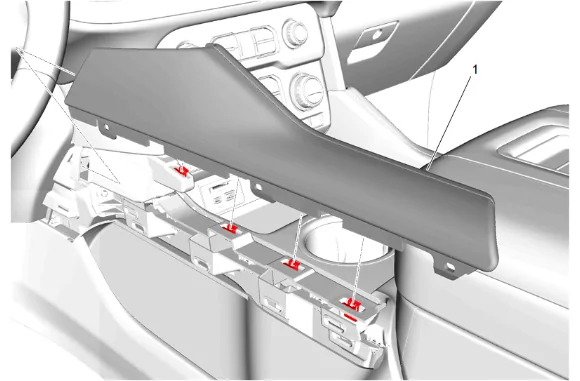

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

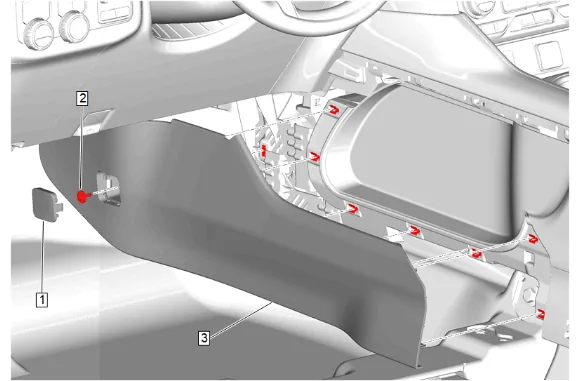

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Move the front seat to access the retainers.
9. Front Floor Console Extension Panel (3) » Remove

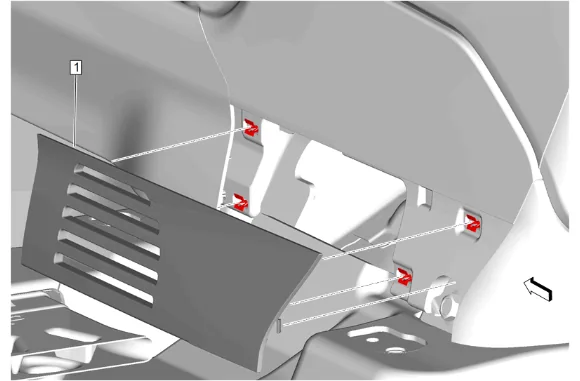

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 5

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Front Floor Console Bolt Access Hole Cover (1) » Remove

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 6

12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 8

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 9

18. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

21. Instrument Panel Trim Pad (2) » Remove

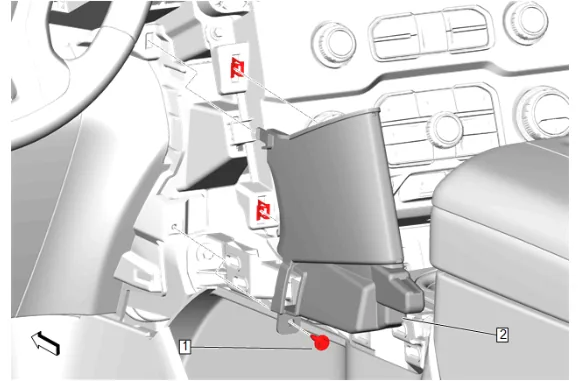

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 10

22. Instrument Panel Lower Trim Panel Bolt (1) » Remove
23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

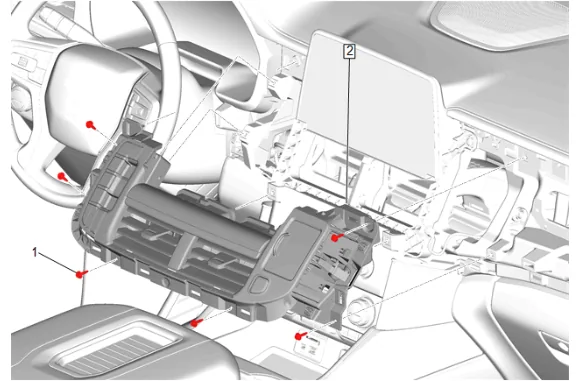

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 11

25. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
26. Disconnect the electrical connectors.
27. Instrument Panel Transmission Shift Opening Cover (2) » Remove

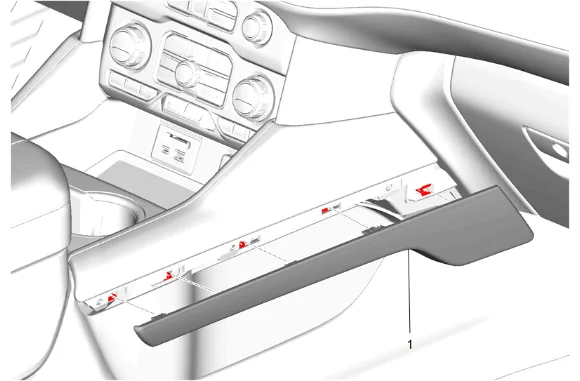

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 12

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Lower Applique (1) » Remove

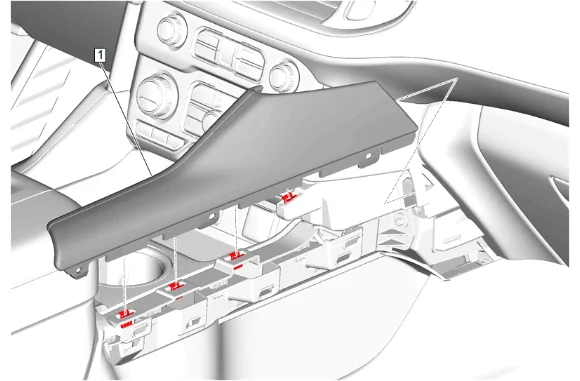

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 13

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Front Floor Console Applique (1) » Remove

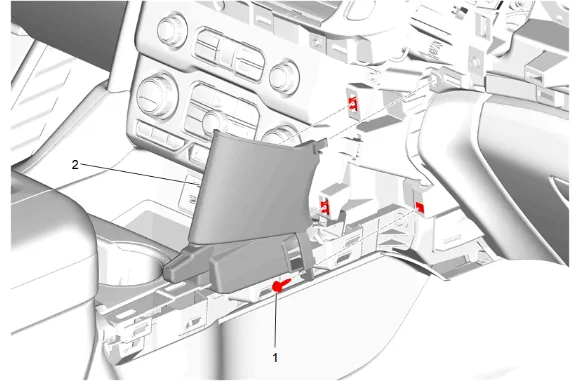

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 14

32. Instrument Panel Lower Trim Panel Bolt (1) » Remove
33. Using a flat-bladed plastic trim tool, release the retaining clips.
34. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

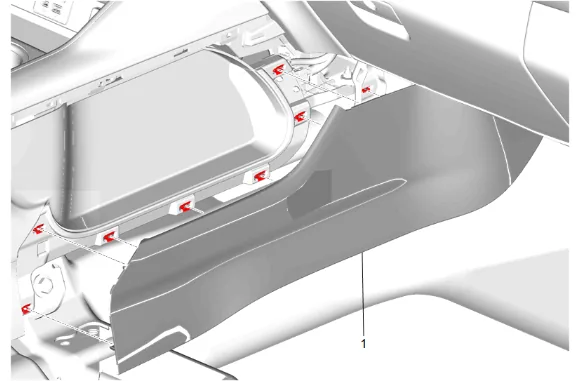

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 15

Note

Use a flat bladed plastic trim tool.

35. Front Floor Console Extension Panel (1) » Remove

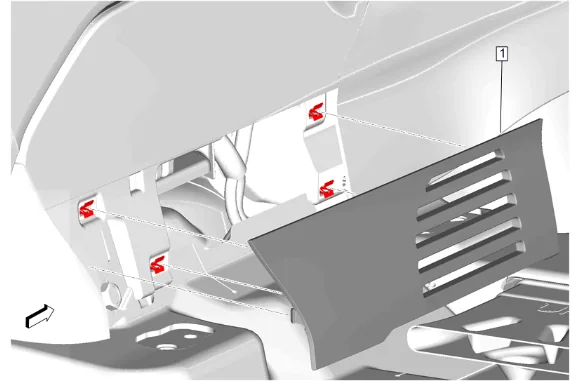

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 16

36. Using a flat-bladed plastic trim tool, release the retaining clips.
37. Front Floor Console Bolt Access Hole Cover (1) » Remove

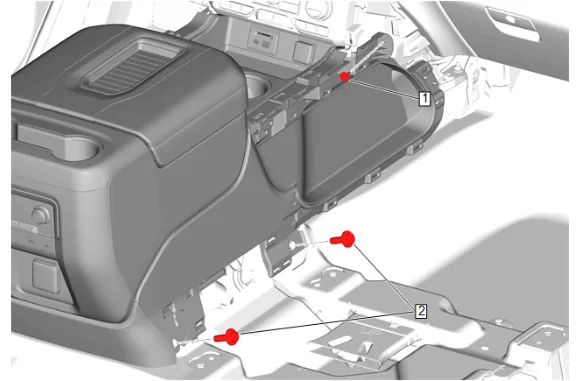

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 17

38. Front Floor Console Retainer Bolt (1) » Remove
39. Front Floor Console Bolt (2) » Remove [2x]

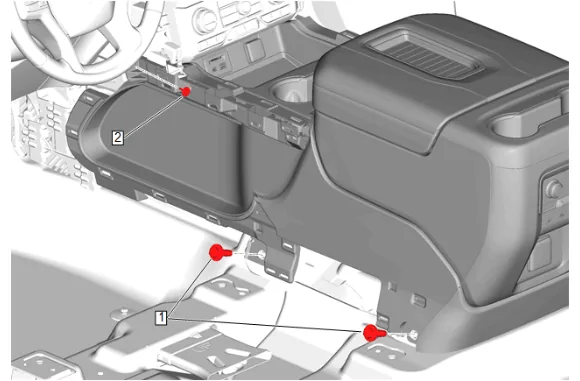

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 18

40. Front Floor Console Bolt (1) » Remove [2x]
41. Front Floor Console Retainer Bolt (2) » Remove

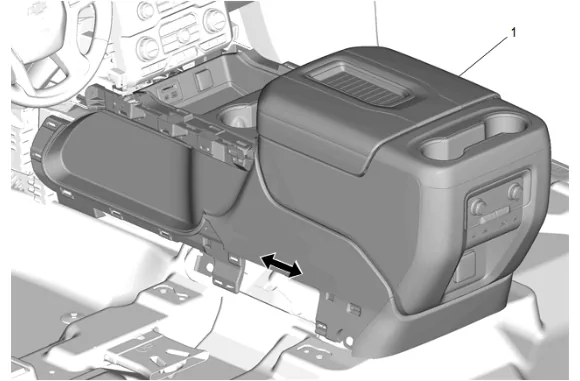

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 19

42. Slide the front floor console (1) back to clear the instrument panel accessory bezel.

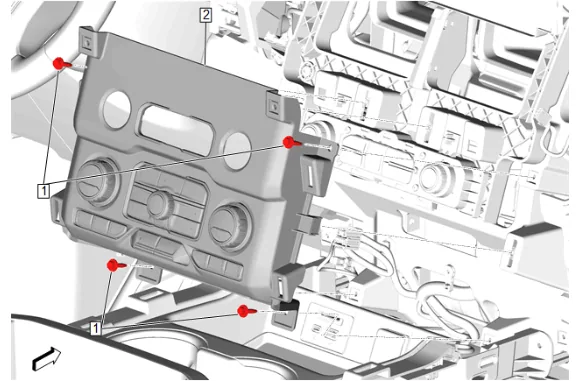

Instrument Panel Accessory Bezel Replacement (with DCH, DCK, D07) — figure 20

43. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

44. Instrument Panel Accessory Bezel (2) » Remove

45. Disconnect the electrical connectors.

46. Transfer components as necessary. Installation Procedure

47. Connect the electrical connectors.

48. Instrument Panel Accessory Bezel (2) » Install

Caution

Refer to Fastener Caution.

3. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

4. Slide the front floor console (1) back into the instrument panel.

5. Front Floor Console Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Front Floor Console Retainer Bolt (2) » Install and tighten — Fastener Specifications

7. Front Floor Console Retainer Bolt (1) » Install and tighten — Fastener Specifications

8. Front Floor Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

9. Front Floor Console Bolt Access Hole Cover (1) » Install

10. Front Floor Console Extension Panel (1) » Install

11. Instrument Panel Lower Center Trim Plate Applique (2) » Install

12. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

13. Front Floor Console Applique (1) » Install

14. Front Floor Console Lower Applique (1) » Install

15. Connect the electrical connectors.

16. Instrument Panel Transmission Shift Opening Cover (2) » Install

17. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

18. Instrument Panel Lower Center Trim Plate Applique (2) » Install

19. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

20. Connect the electrical connector.

21. Instrument Panel Trim Pad (2) » Install

22. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

23. Instrument Panel Center Trim Plate Applique (1) » Install

24. Instrument Panel Trim Plate Applique (1) » Install

25. Instrument Panel Fuse Block Access Hole Cover (1) » Install

26. Front Floor Console Bolt Access Hole Cover (1) » Install

27. Front Floor Console Extension Panel (3) » Install

Caution

Refer to Fastener Caution.

28. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

29. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

30. Front Floor Console Applique (1) » Install

31. Front Floor Console Lower Applique (1) » Install

32. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
