Front Floor Console Bin Lamp Replacement

Removal Procedure

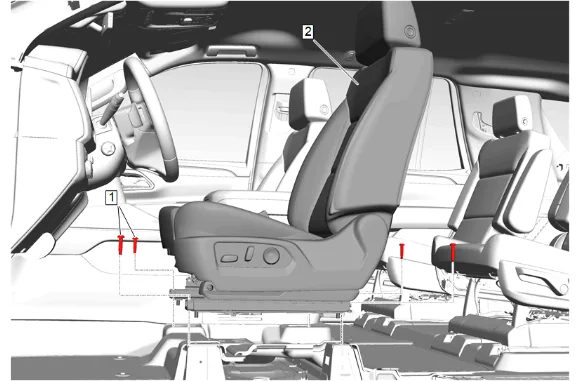

Front Floor Console Bin Lamp Replacement — figure 1

1. Front Seat (2) » Reposition [2x] — Front Seat Removal and Installation

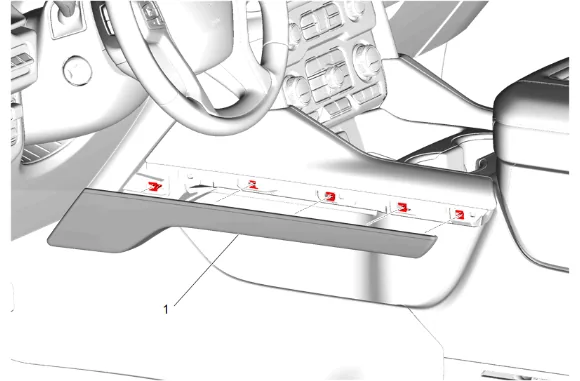

Front Floor Console Bin Lamp Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

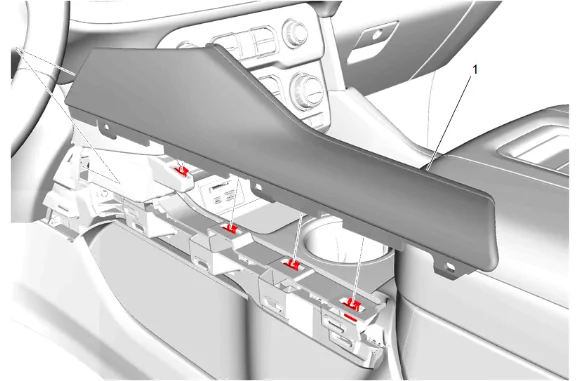

Front Floor Console Bin Lamp Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

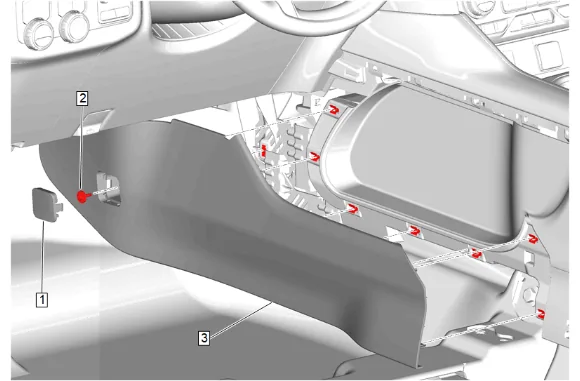

Front Floor Console Bin Lamp Replacement — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Move the front seat to access the retainers.
9. Front Floor Console Extension Panel (3) » Remove

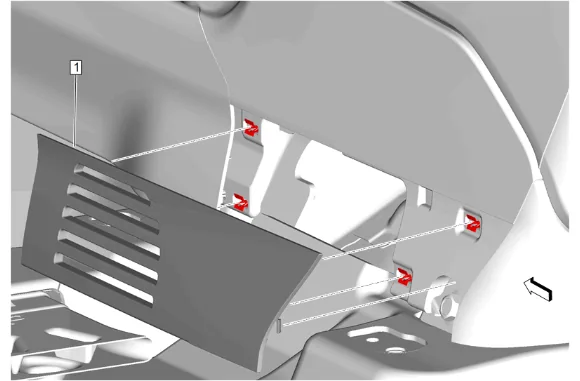

Front Floor Console Bin Lamp Replacement — figure 5

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Bin Lamp Replacement — figure 6

12. Using a flat-bladed plastic trim tool, release the retaining clips.
13. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Front Floor Console Bin Lamp Replacement — figure 7

14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Trim Plate Applique (1) » Remove

Front Floor Console Bin Lamp Replacement — figure 8

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Center Trim Plate Applique (1) » Remove

Front Floor Console Bin Lamp Replacement — figure 9

18. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

21. Instrument Panel Trim Pad (2) » Remove

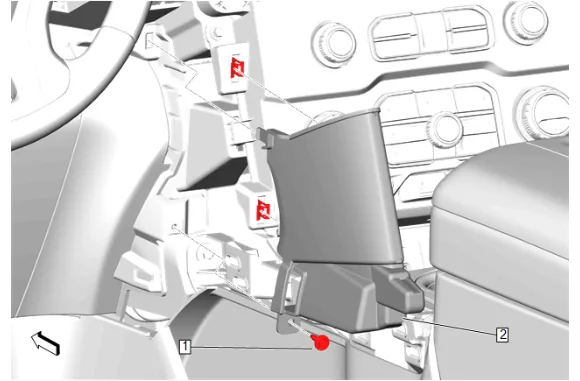

Front Floor Console Bin Lamp Replacement — figure 10

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Lower Trim Panel Bolt (1) » Remove
24. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

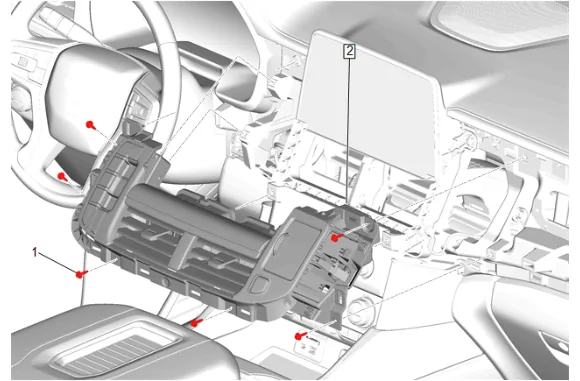

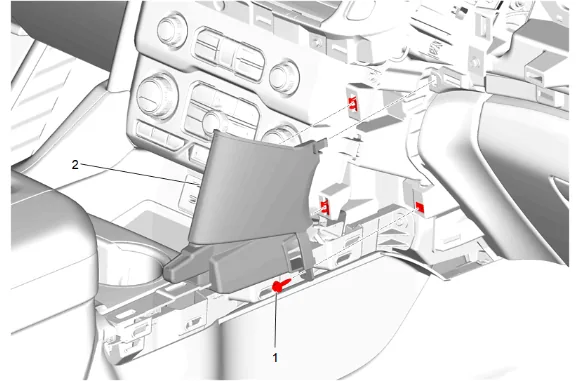

Front Floor Console Bin Lamp Replacement — figure 11

25. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
26. Disconnect the electrical connectors.
27. Instrument Panel Transmission Shift Opening Cover (2) » Remove

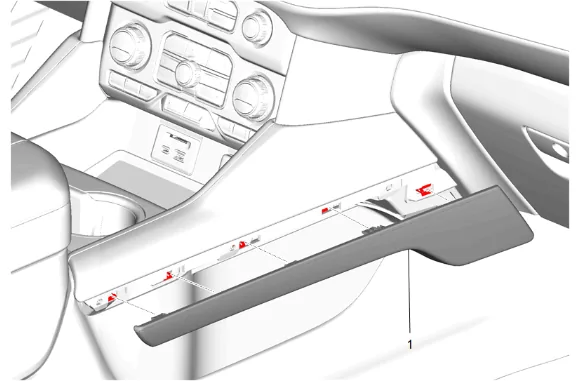

Front Floor Console Bin Lamp Replacement — figure 12

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Front Floor Console Lower Applique (1) » Remove

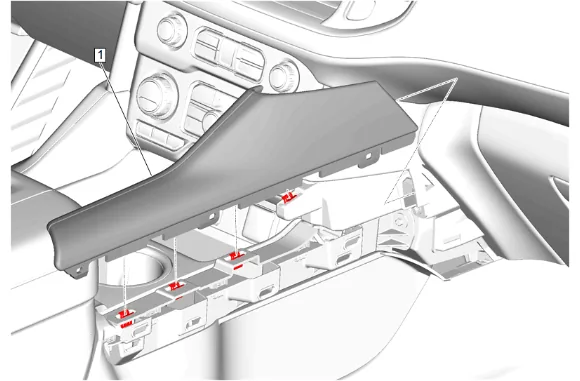

Front Floor Console Bin Lamp Replacement — figure 13

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Front Floor Console Applique (1) » Remove

Front Floor Console Bin Lamp Replacement — figure 14

32. Instrument Panel Lower Trim Panel Bolt (1) » Remove
33. Using a flat-bladed plastic trim tool, release the retaining clips.
34. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

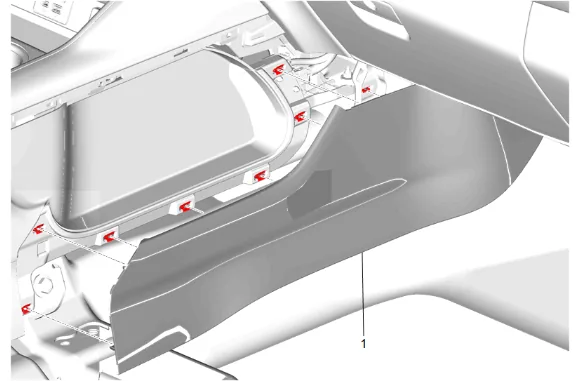

Front Floor Console Bin Lamp Replacement — figure 15

Note

Use a flat bladed plastic trim tool.

35. Move the front seat to access the retainers.
36. Front Floor Console Extension Panel (1) » Remove

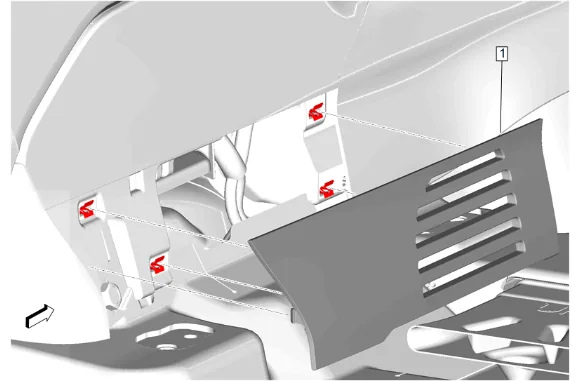

Front Floor Console Bin Lamp Replacement — figure 16

37. Using a flat-bladed plastic trim tool, release the retaining clips.
38. Front Floor Console Bolt Access Hole Cover (1) » Remove

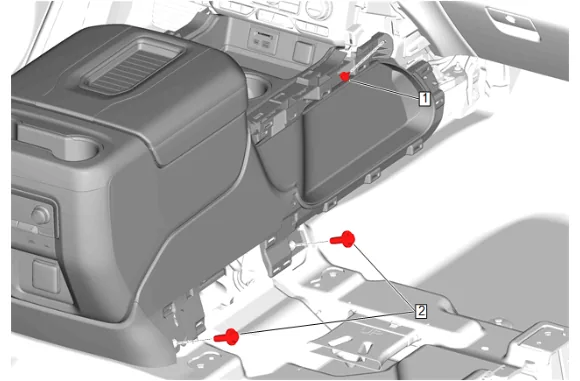

Front Floor Console Bin Lamp Replacement — figure 17

39. Front Floor Console Retainer Bolt (1) » Remove
40. Front Floor Console Bolt (2) » Remove [2x]

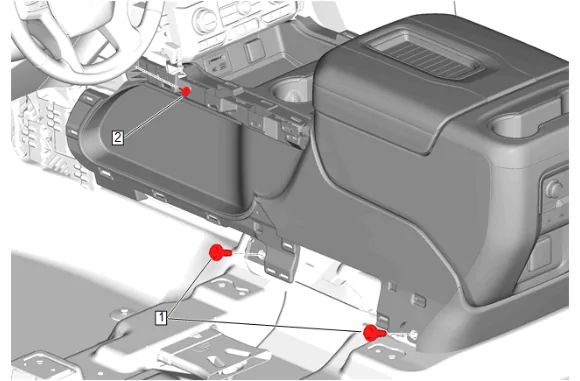

Front Floor Console Bin Lamp Replacement — figure 18

41. Front Floor Console Bolt (1) » Remove [2x]
42. Front Floor Console Retainer Bolt (2) » Remove

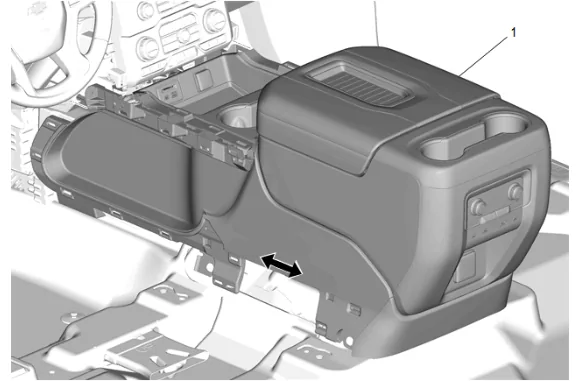

Front Floor Console Bin Lamp Replacement — figure 19

43. Slide the front floor console (1) back to clear the instrument panel accessory bezel.

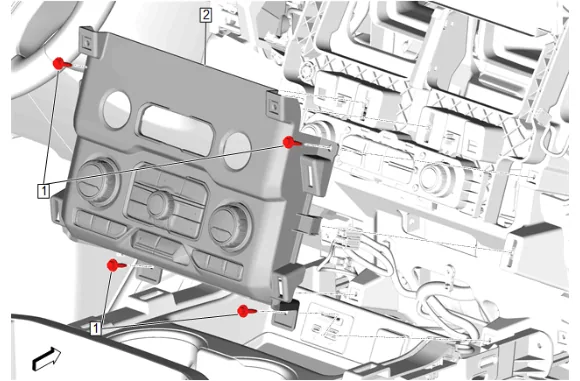

Front Floor Console Bin Lamp Replacement — figure 20

44. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

45. Instrument Panel Accessory Bezel (2) » Remove
46. Disconnect the electrical connectors.

Front Floor Console Bin Lamp Replacement — figure 21

47. Release the retaining tabs.

48. Front Floor Console Bin Lamp (1) » Remove Installation Procedure

49. Front Floor Console Bin Lamp (1) » Install

50. Ensure the retaining tabs have fully secured.

51. Connect the electrical connectors.

52. Instrument Panel Accessory Bezel (2) » Install

Caution

Refer to Fastener Caution.

5. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

6. Slide the front floor console (1) back into the instrument panel.

7. Front Floor Console Bolt (1) » Install and tighten [2x] — Fastener Specifications

8. Front Floor Console Retainer Bolt (2) » Install and tighten — Fastener Specifications

9. Front Floor Console Retainer Bolt (1) » Install and tighten — Fastener Specifications

10. Front Floor Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

11. Front Floor Console Bolt Access Hole Cover (1) » Install

12. Front Floor Console Extension Panel (1) » Install

13. Instrument Panel Lower Center Trim Plate Applique (2) » Install

14. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

15. Front Floor Console Applique (1) » Install

16. Front Floor Console Lower Applique (1) » Install

17. Connect the electrical connectors.

18. Instrument Panel Transmission Shift Opening Cover (2) » Install

19. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

20. Instrument Panel Lower Center Trim Plate Applique (2) » Install

21. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

22. Connect the electrical connector.

23. Instrument Panel Trim Pad (2) » Install

24. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

25. Instrument Panel Center Trim Plate Applique (1) » Install

26. Instrument Panel Trim Plate Applique (1) » Install

27. Instrument Panel Fuse Block Access Hole Cover (1) » Install

28. Front Floor Console Bolt Access Hole Cover (1) » Install

29. Front Floor Console Extension Panel (3) » Install

30. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

31. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

32. Front Floor Console Applique (1) » Install

33. Front Floor Console Lower Applique (1) » Install

34. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
