Front Side Door Weatherstrip Replacement - Body Side

Removal Procedure

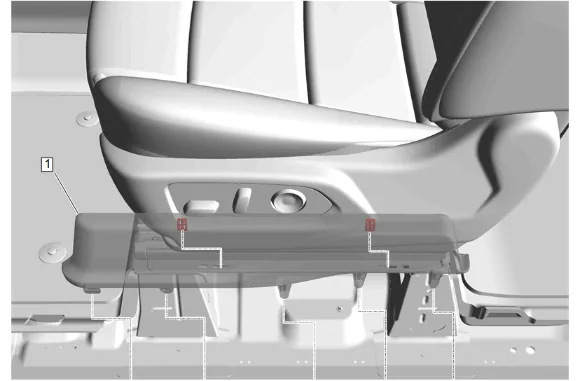

Front Side Door Weatherstrip Replacement - Body Side — figure 1

1. Using a suitable plastic trim tool, gently pry upwards to release the retaining clips.
2. Front Seat Adjuster Track Finish Cover (1) » Remove

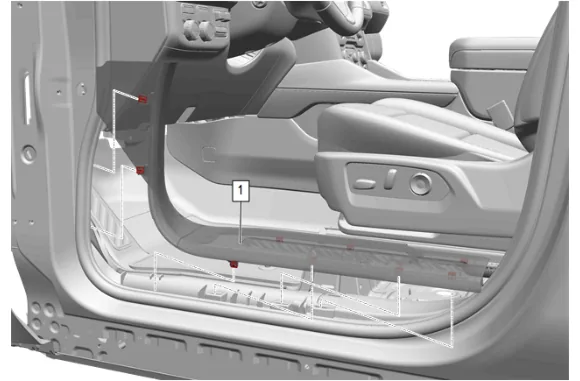

Front Side Door Weatherstrip Replacement - Body Side — figure 2

3. Starting at the rear of the front side door sill garnish molding (1) pull upward at the b-pillar joint to disengage the garnish molding.
4. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
5. Front Side Door Sill Garnish Molding (1) » Remove

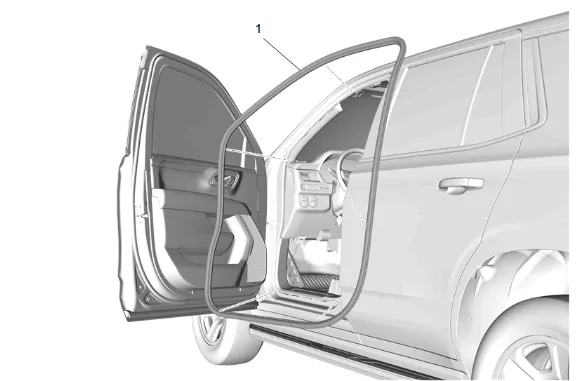

Front Side Door Weatherstrip Replacement - Body Side — figure 3

6. Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.

7. Front Side Door Weatherstrip - Body Side (1) » Remove Installation Procedure

8. Front Side Door Weatherstrip - Body Side (1) » Install

9. Position the weatherstrip in the upper corner of the center pillar.

10. Working downward along the front edge, install the weatherstrip on the door opening flange.

11. Ensure that the weatherstrip is fully seated around the door opening.

12. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

13. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

14. Front Side Door Sill Garnish Molding (1) » Install

15. Front Seat Adjuster Track Finish Cover (1) » Install
