Tahoe / Yukon Service Manual

Rear of Engine

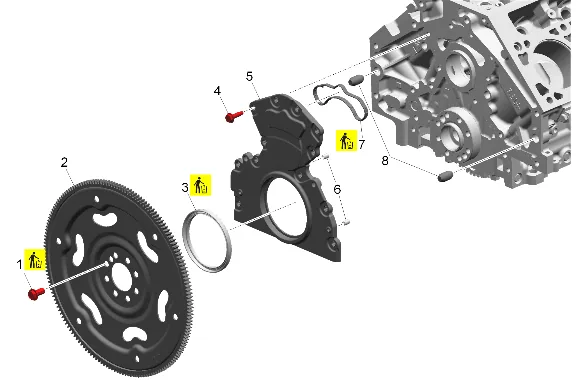

Rear of Engine — figure 1
Rear of Engine — figure 1

(1) Automatic Transmission Flex Plate Bolt [8x] (2) Automatic Transmission Flex Plate (3) Crankshaft Rear Oil Seal (4) Crankshaft Rear Oil Seal Housing Bolt [12x] (5) Crankshaft Rear Oil Seal Housing (6) Crankshaft Rear Oil Seal Housing Locating Pin [2x] (7) Crankshaft Rear Oil Seal Housing Gasket (8) Transmission Locating Pin [2x]
