Tahoe / Yukon Service Manual

Intake Air Splash Shield Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5542096 Removal Procedure

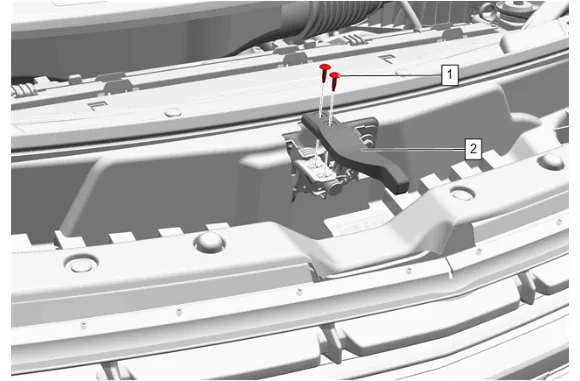

Intake Air Splash Shield Replacement — figure 1
Intake Air Splash Shield Replacement — figure 1
  1. Hood Latch Actuator Bolt (1) » Remove [2x]
  2. Hood Secondary Latch Release Handle (2) » Remove

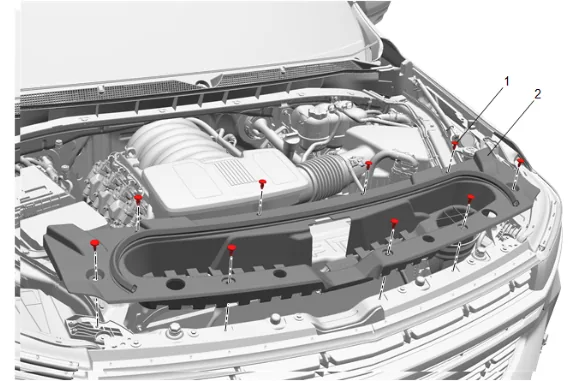

Intake Air Splash Shield Replacement — figure 2
Intake Air Splash Shield Replacement — figure 2

  1. Intake Air Baffle Retainer (1) » Remove [9x]

  2. Intake Air Splash Shield (2) » Remove Installation Procedure

  3. Intake Air Splash Shield (2) » Install

  4. Intake Air Baffle Retainer (1) » Install [9x]

  5. Hood Secondary Latch Release Handle (2) » Install

  6. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
