Front Bumper Fascia Seal Replacement (with LM2 and WTX)

Front Bumper Fascia Seal Replacement (with LM2 and WTX) Removal Procedure

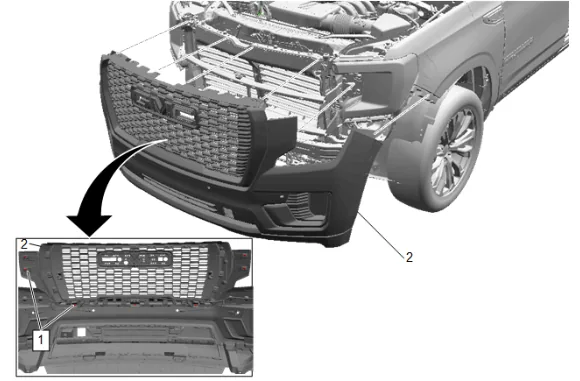

Front Bumper Fascia Seal Replacement (with LM2 and WTX) — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

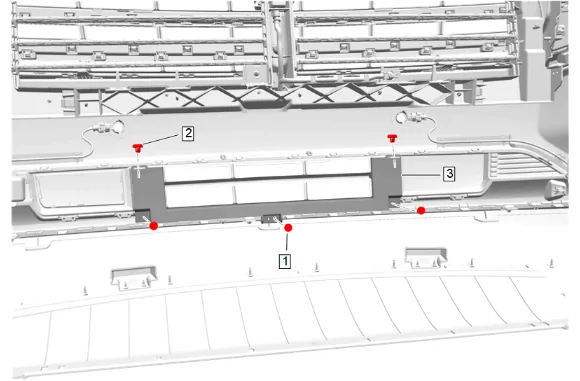

Front Bumper Fascia Seal Replacement (with LM2 and WTX) — figure 2

2. Front Bumper Fascia Bolt (1) » Remove [3x]

3. Front Bumper Fascia Retainer (2) » Remove [2x]

4. Front Bumper Fascia Seal (3) » Remove Installation Procedure

5. Front Bumper Fascia Seal (3) » Install

6. Front Bumper Fascia Retainer (2) » Install [2x]

Caution

Refer to Fastener Caution.

3. Front Bumper Fascia Bolt (1) » Install and tighten [3x] — Fastener Specifications

4. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
