Tahoe / Yukon Service Manual

Front Side Door Outside Handle Counterbalance Lever Reset

Front Side Door Outside Handle Counterbalance Lever Reset

Front Side Door Outside Handle Counterbalance Lever Reset — figure 1
Front Side Door Outside Handle Counterbalance Lever Reset — figure 1
  1.  Front Side Door Outside Handle Bracket Rear Bolt Access Plug (1) » Remove
Front Side Door Outside Handle Counterbalance Lever Reset — figure 2
Front Side Door Outside Handle Counterbalance Lever Reset — figure 2

Click Image For Video

Front Side Door Outside Handle Counterbalance Lever Reset — figure 3
Front Side Door Outside Handle Counterbalance Lever Reset — figure 3

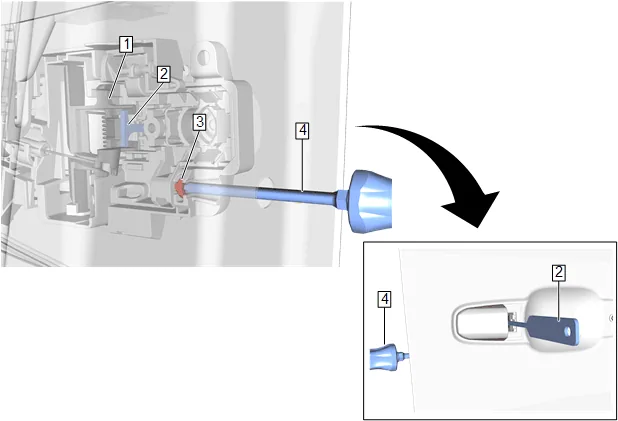

Insert the EL-42059(2) and grasp the counterbalance lever(1) . 3. Pull the EL-42059(2) until the counterbalance lever (1) is fully rotated. Hold in this position. 4. Using a T25 Torx ™ driver (4), turn the front side door outside handle bracket rear bolt (3) counterclockwise until it clicks.

Front Side Door Outside Handle Counterbalance Lever Reset — figure 4
Front Side Door Outside Handle Counterbalance Lever Reset — figure 4

Click Image For Video

Front Side Door Outside Handle (2) » Install 6. Connect the electrical connector if applicable. 7. Lightly press the front side door outside handle (2) to ensure it is in position. 8. Using a T25 Torx ™ driver (1), turn the front side door outside handle bracket rear bolt clockwise until the handle (2) is fully seated.

  1. Front Side Door Outside Handle Bracket Rear Bolt » Tighten — Front Side Door Outside Handle Replacement

  2.  Front Side Door Outside Handle Bracket Rear Bolt Access Plug (1) » Install
