Battery Distribution Fuse Block Replacement (9C1, 5W4)
Removal Procedure

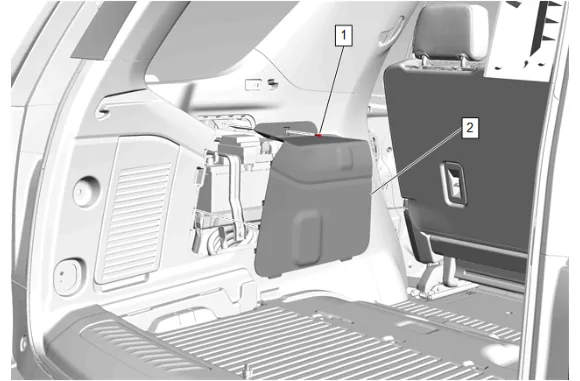

- Quarter Upper Trim Panel Bolt (1) » Remove
- Quarter Trim Panel Cover (2) » Remove
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

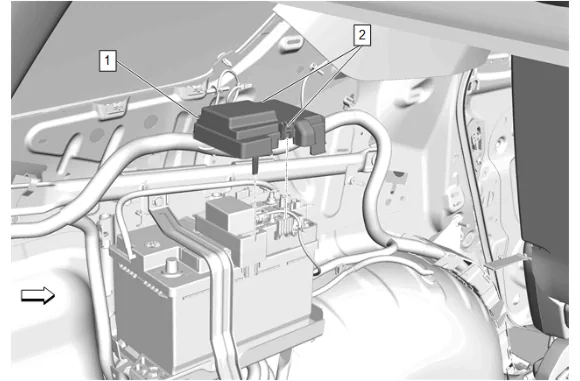

- Retaining Tab (2) » Disengage [2x]
- Battery Distribution Fuse Block Cover (1) » Remove

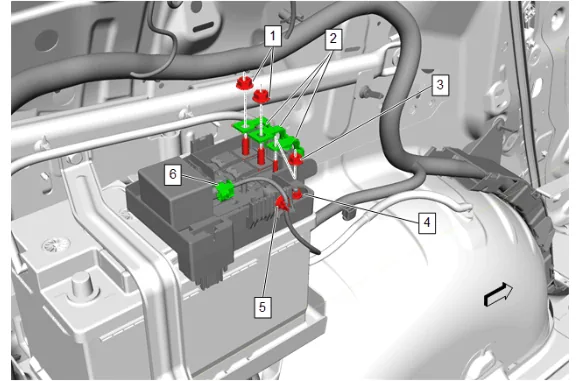

- Battery Positive Cable Nut (1) » Remove [2x]
- Battery Positive Cable Nut (3) » Remove
- Body Wiring Harness (2) » Remove [3x]
- Battery Positive Post Clamp Nut (4) » Loosen
- Retainer (5) » Disengage
- Electrical Connector (6) » Disconnect
-

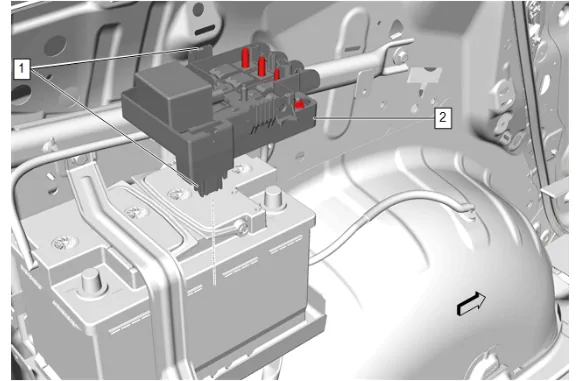

Retaining Tab (1) » Disengage [2x]
-
Battery Distribution Fuse Block (2) » Remove Installation Procedure
-
Battery Distribution Fuse Block (2) » Install
-
Retaining Tab (1) » Engage [2x]
-
Battery Positive Post Clamp Nut (4) » Tighten — Fastener Specifications
-
Body Wiring Harness (2) » Install [3x]
-
Battery Positive Cable Nut (3) » Install and tighten — Fastener Specifications
-
Battery Positive Cable Nut (1) » Install and tighten [2x] — Fastener Specifications
-
Retainer (5) » Engage
-
Electrical Connector (6) » Connect
-
Battery Distribution Fuse Block Cover (1) » Install
-
Retaining Tab (2) » Engage [2x]
-
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
-
Quarter Trim Panel Cover (2) » Install
-
Quarter Upper Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
