Tahoe / Yukon Service Manual

Front View Driver Information Camera Replacement

Removal Procedure

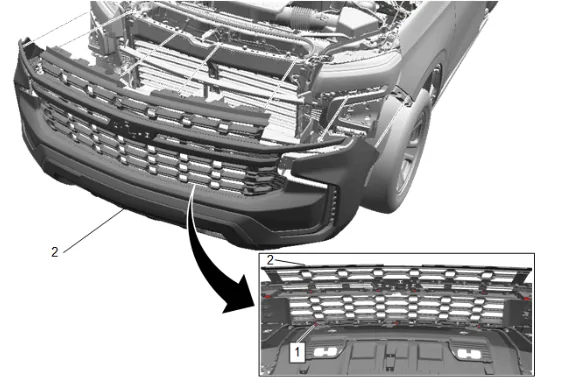

Front View Driver Information Camera Replacement — figure 1
Front View Driver Information Camera Replacement — figure 1
  1. Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

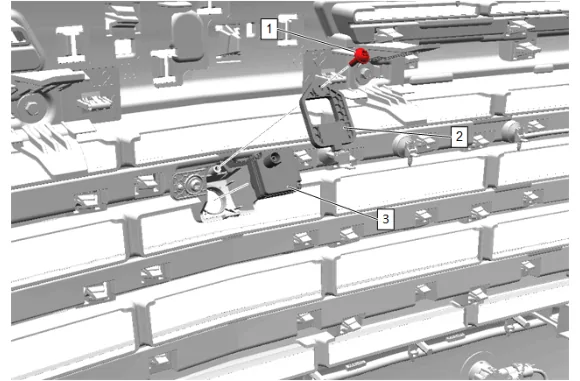

Front View Driver Information Camera Replacement — figure 2
Front View Driver Information Camera Replacement — figure 2

  1. Disconnect the electrical connector.

  2. Front View Camera Bolt (1) » Remove

  3. Camera Back Plate (2) » Remove

  4. Front View Driver Information Camera (3) » Remove Installation Procedure

  5. Front View Driver Information Camera (3) » Install

  6. Camera Back Plate (2) » Install

  1. Front View Camera Bolt (1) » Install and tighten — Fastener Specifications

  2. Connect the electrical connector.

  3. Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation
