Intake Manifold and Components

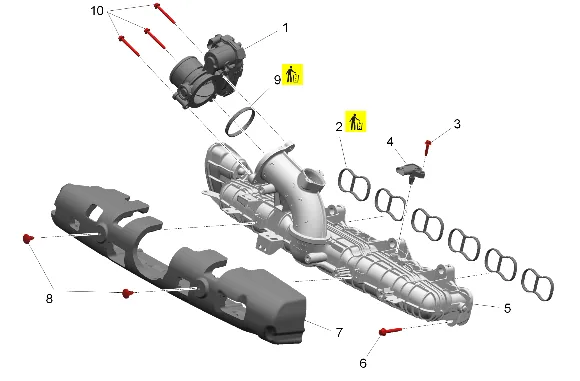

Intake Manifold and Components — figure 1
Intake Manifold and Components — figure 1

(1) Throttle Body (2) Intake Manifold Runner Control Valve Gasket [6x] (3) Intake Air Pressure and Temperature Sensor Bolt (4) Intake Air Pressure and Temperature Sensor (5) Intake Manifold (6) Intake Manifold Bolt [9x] (7) Intake Manifold Cover (8) Intake Manifold Cover Retainer [2x] (9) Throttle Body Gasket (10) Throttle Body Bolt [3x]
