Steering Knuckle Replacement (2WD without Z56)

Single Use Fasteners and Components Front Wheel Hub Seal [2x] Special Tools Disc Brakes CH-41013 Rotor Resurfacing Kit CH-42450-A Wheel Hub Resurfacing Kit Equivalent regional tools: Special Tools Suspension CH-43631 Ball Joint Separator CH-42188–B Ball Joint Separator Equivalent regional tools: Special Tools

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Dust Warning Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle
3. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

Steering Knuckle Replacement (2WD without Z56) — figure 1

4. Front Brake Hose Bracket Bolt (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 2

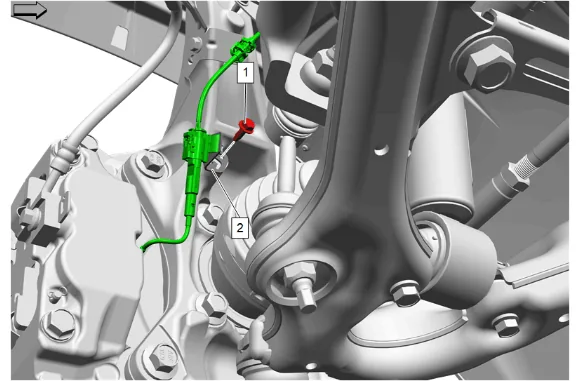

5. { If equipped } Front Wheel Speed Sensor Bracket Bolt (1) » Remove
6. { If equipped } Front Wheel Speed Sensor Bracket (2) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 3

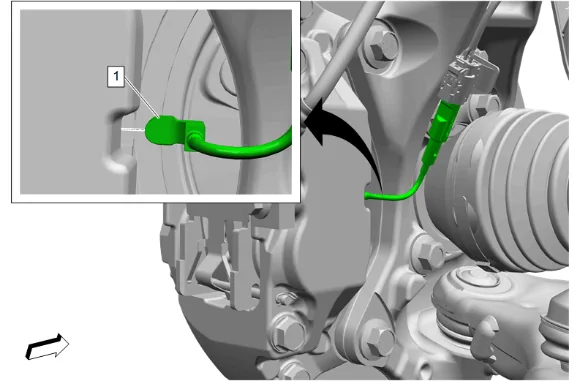

7. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 4

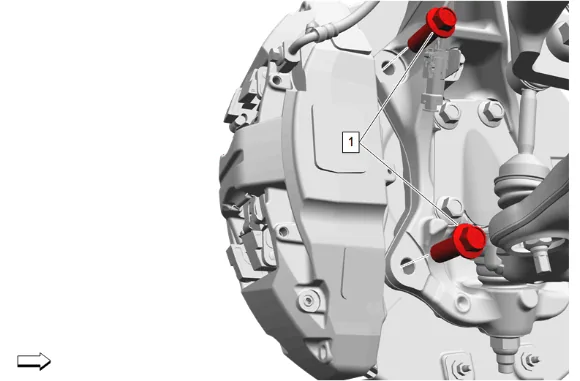

8. Front Brake Caliper Bolt (1) » Remove [2x]

Steering Knuckle Replacement (2WD without Z56) — figure 5

Caution

Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

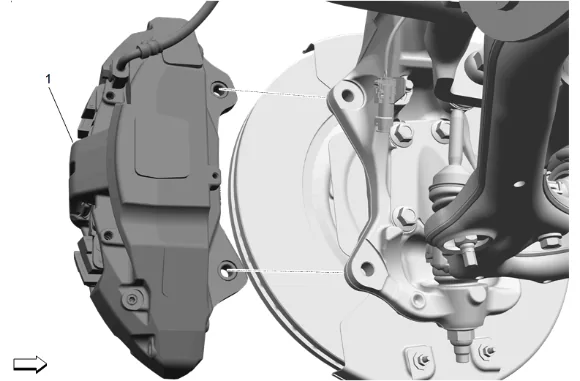

9. Remove the brake caliper and support with heavy mechanics wire. (1)

Steering Knuckle Replacement (2WD without Z56) — figure 6

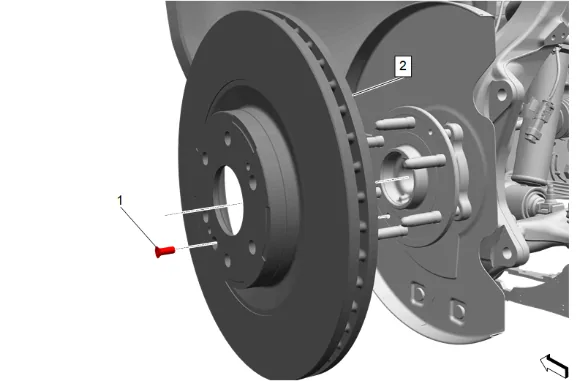

10. Front Brake Rotor Bolt (1) » Remove
11. Front Brake Rotor (2) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 7

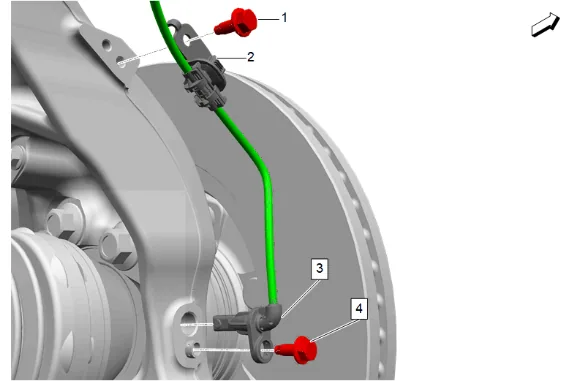

12. Front Wheel Speed Sensor Bolt (4) » Remove
13. Front Wheel Speed Sensor Bracket Bolt (1) » Remove
14. Front Wheel Speed Sensor (3) » Remove
15. Front Wheel Speed Sensor Bracket (2) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 8

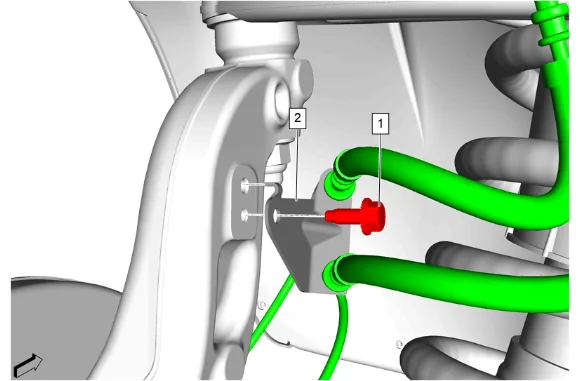

16. {Without F47} Front Wheel Speed Sensor Bracket Bolt (1) » Remove 16.1. Remove the front wheel speed sensor wiring harness bracket (2).

Steering Knuckle Replacement (2WD without Z56) — figure 9

Note

Left side shown, right side similar.

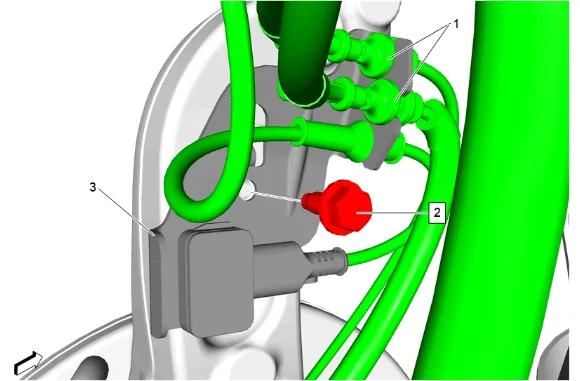

17. {With F47} Remove (2x) the harness (1) from the electronic suspension wheel front vertical accelerometer (3). 17.1. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Remove 17.2. Electronic Suspension Wheel Front Vertical Accelerometer (3) » Remove » Reposition

Steering Knuckle Replacement (2WD without Z56) — figure 10

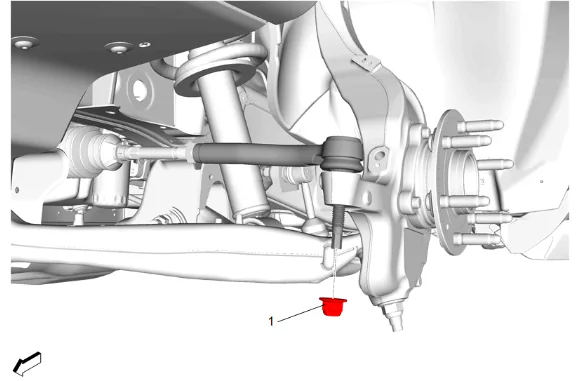

18. Steering Linkage Outer Tie Rod Nut (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 11

Caution

Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

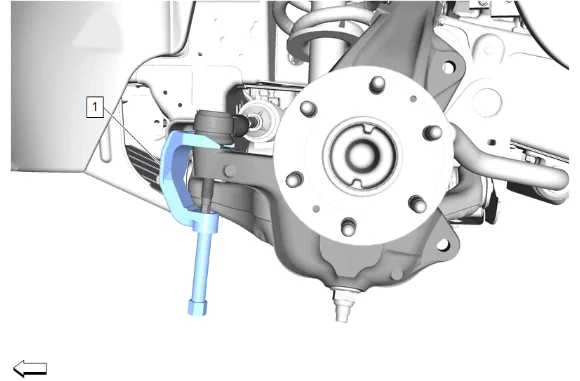

19. UsingCH-43631 Ball Joint Separator (1), remove the steering linkage outer tie rod from the steering knuckle.

Steering Knuckle Replacement (2WD without Z56) — figure 12

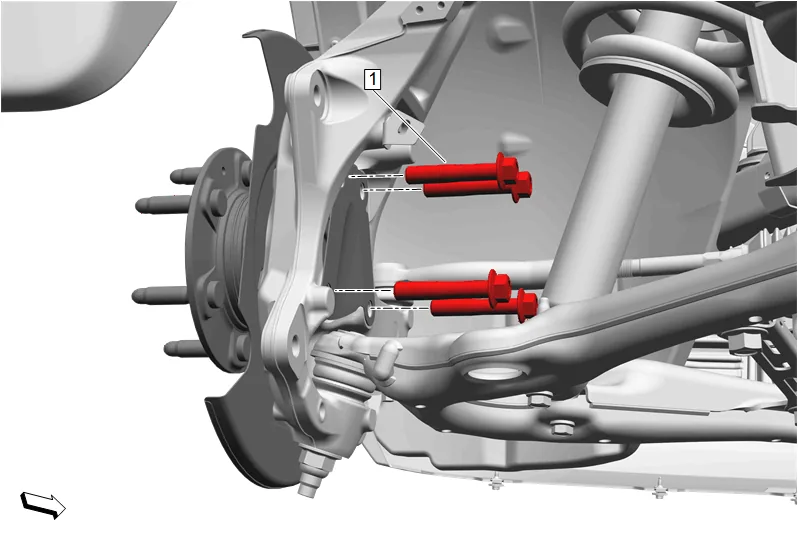

20. Front Wheel Hub Bolt (1) » Remove [4x]

Steering Knuckle Replacement (2WD without Z56) — figure 13

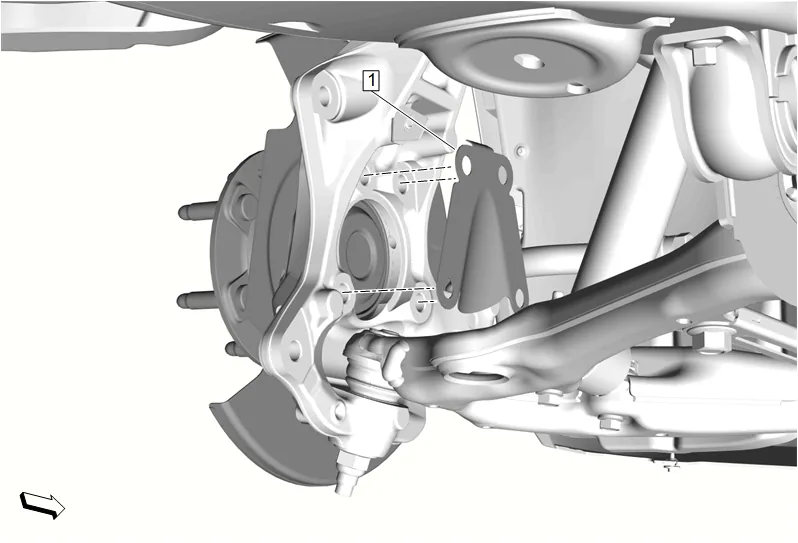

21. Front Brake Bearing Shield (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 14

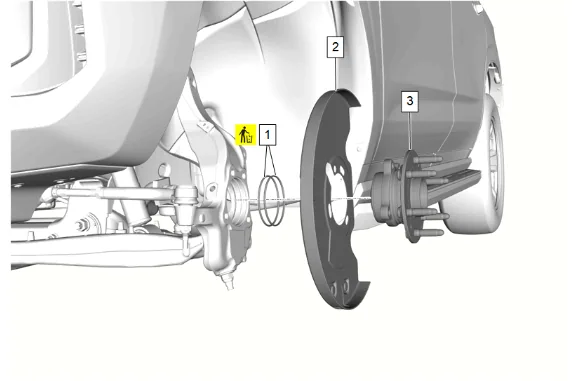

22. Front Wheel Hub (3) » Remove
23. Front Brake Shield (2) » Remove
24. Front Wheel Hub Seal (1) » Remove and DISCARD [2x]

Note

Support the lower control arm to prevent over-articulation of the front lower control arm ball joint.

25. Support the lower control arm with a suitable jack stand.

Steering Knuckle Replacement (2WD without Z56) — figure 15

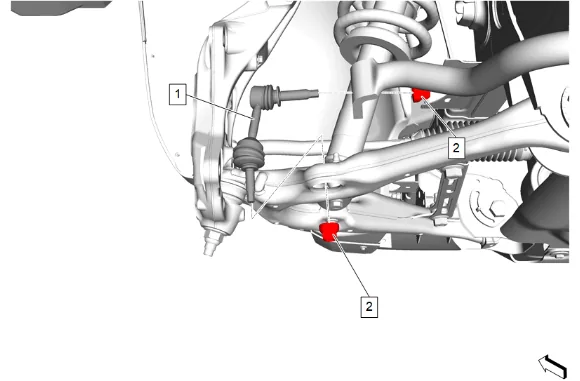

26. Front Stabilizer Shaft Link Nut (2) » Remove [2x]
27. Front Stabilizer Shaft Link (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 16

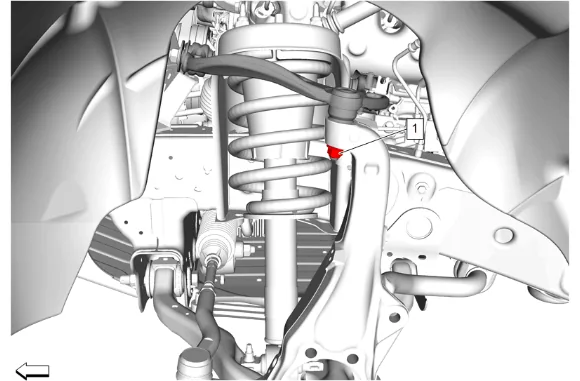

28. Front Upper Control Arm Ball Stud Nut (1) » Loosen

Steering Knuckle Replacement (2WD without Z56) — figure 17

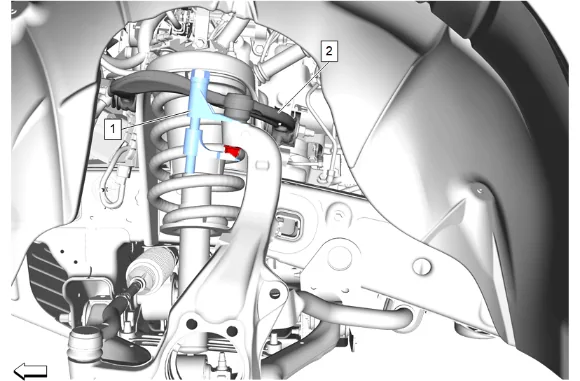

29. Using the CH-42188–B Ball Joint Separator(1) , separate the left front upper control arm (2) from the steering knuckle.
30. Remove the CH-42188–B Ball Joint Separator(1) from the left front upper control arm (2) and the steering knuckle.

Steering Knuckle Replacement (2WD without Z56) — figure 18

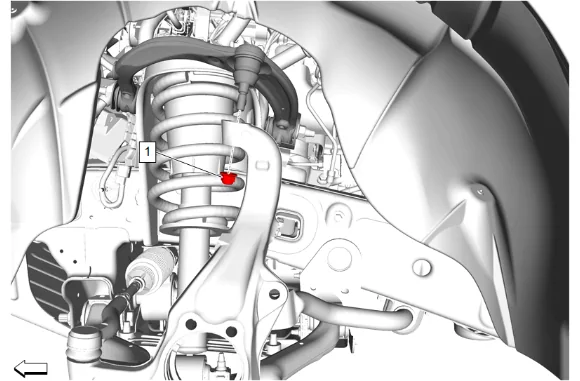

31. Front Upper Control Arm Ball Stud Nut (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 19

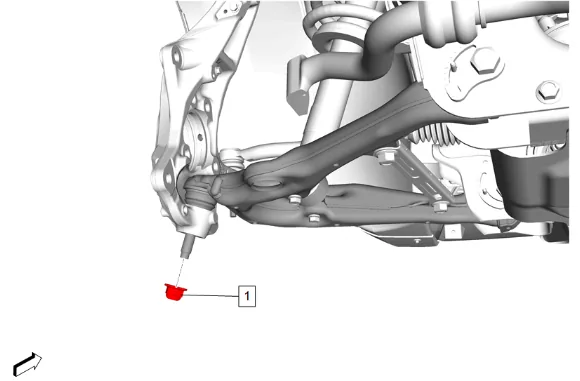

32. Front Lower Control Arm Ball Stud Nut (1) » Remove

Steering Knuckle Replacement (2WD without Z56) — figure 20

33. Front Lower Control Arm (1) @ Steering Knuckle (2) » Release —  use CH-43631 Ball Joint Remover(3)

Steering Knuckle Replacement (2WD without Z56) — figure 21

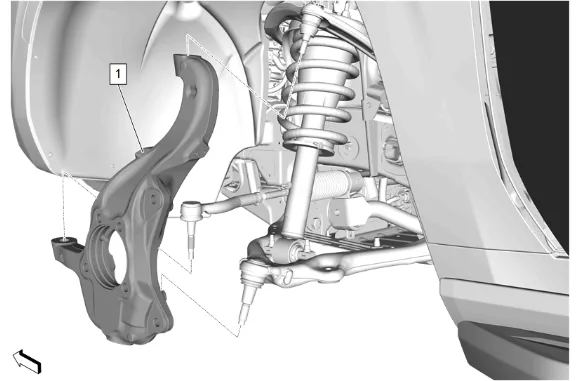

34. Steering Knuckle (1) » Remove Installation Procedure

35. Steering Knuckle (1) » Install

36. Support the steering knuckle with a suitable jack stand.

Caution

Refer to Fastener Caution.

3. Front Lower Control Arm Ball Stud Nut (1) » Install and tighten — Fastener Specifications

4. Front Upper Control Arm Ball Stud Nut (1) » Install and tighten — Fastener Specifications

5. Front Stabilizer Shaft Link (1) » Install

6. Front Stabilizer Shaft Link Nut (2) » Install and tighten [2x] — Fastener Specifications

7. Clean any debris and corrosion from the steering knuckle bearing pilot bore.

8. Apply a thin coating of grease evenly ensuring complete coverage of the steering knuckle pilot bore only. Adhesives, Fluids, Lubricants, and Sealers

Note

Ensure that the front wheel hub seals are properly seated in the grooves of the steering knuckle.

9. Front Wheel Hub Seal (1) » Install NEW [2x]

10. Front Brake Shield (2) » Install

11. Front Wheel Hub (3) » Install

12. Front Brake Bearing Shield (1) » Install

13. Front Wheel Hub Bolt (1) » Install and tighten [4x] — Fastener Specifications

14. Steering Linkage Outer Tie Rod Nut (1) » Install and tighten — Fastener Specifications

15. {Without F47} Install the front wheel speed sensor wiring harness bracket (2). 15.1. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

Note

Left side shown, right side similar.

16. {With F47} Electronic Suspension Wheel Front Vertical Accelerometer (3) » Install 16.1. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Install and tighten — Fastener Specifications 16.2. Install the harness (1) to the electronic suspension wheel front vertical accelerometer  (3).

17. Front Wheel Speed Sensor Bracket (2) » Install

18. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

19. Front Wheel Speed Sensor (3) » Install

20. Front Wheel Speed Sensor Bolt (4) » Install and tighten — Fastener Specifications

Note

Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.

21. Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.

22. Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.

23. Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.

24. Front Brake Rotor (2) » Install

25. Front Brake Rotor Bolt (1) » Install and tighten — Fastener Specifications

26. Front Brake Caliper (1) » Install

27. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 27.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 27.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 27.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 27.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

28. Front Brake Caliper Bolt (1) » Install and tighten [2x] — Fastener Specifications

29. Front Brake Hose Bracket Bolt (1) » Install and tighten — Fastener Specifications

30. Front Wheel Speed Sensor Bracket (2) » Install

31. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

32. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Install

33. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

34. Remove the support and lower the vehicle.

35. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
