Radiator Outlet Hose Replacement (LM2)

Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling
2. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

Radiator Outlet Hose Replacement (LM2) — figure 1

Note

Left side shown, right side similar.

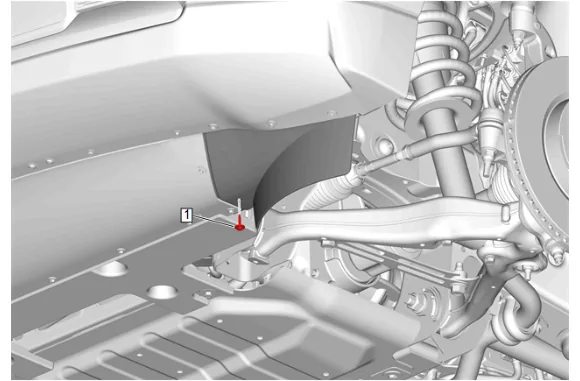

3. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

Radiator Outlet Hose Replacement (LM2) — figure 2

Note

Left side shown, right side similar.

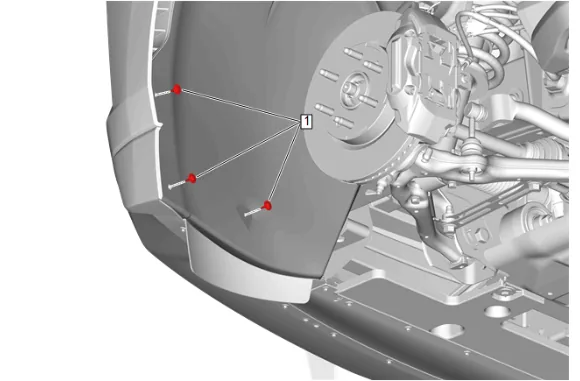

4. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

Radiator Outlet Hose Replacement (LM2) — figure 3

Note

Left side shown, right side similar.

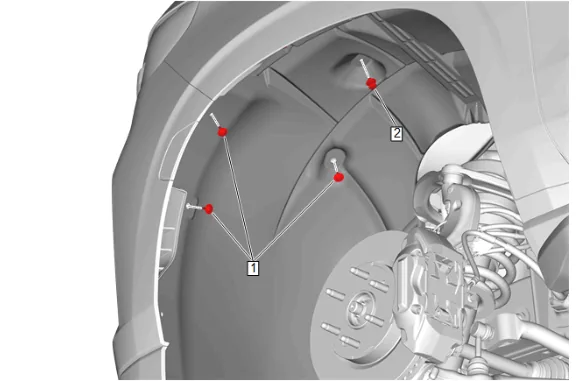

5. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
6. Front Wheelhouse Liner Retainer - Right Side (2) » Remove

Radiator Outlet Hose Replacement (LM2) — figure 4

Note

Left side shown, right side similar.

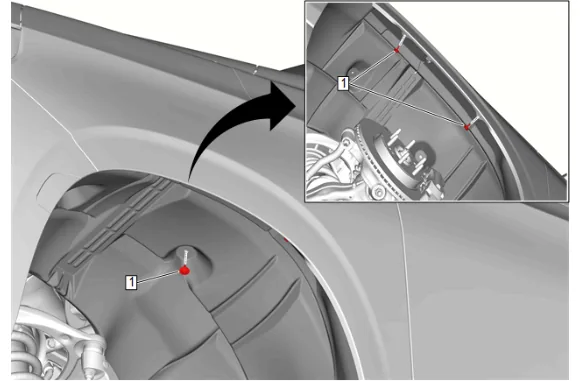

7. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

Radiator Outlet Hose Replacement (LM2) — figure 5

Note

Left side shown, right side similar.

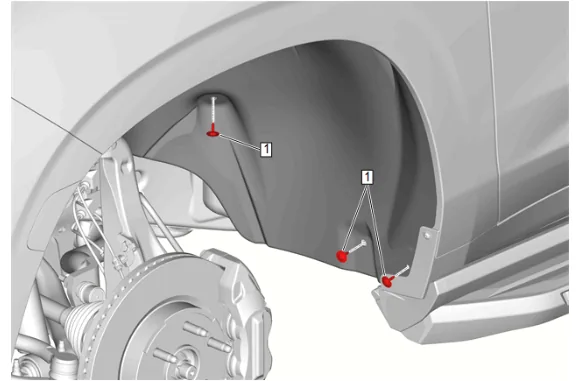

8. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

Radiator Outlet Hose Replacement (LM2) — figure 6

Note

Left side shown, right side similar.

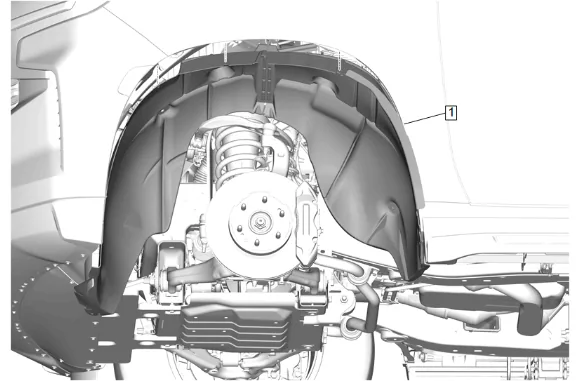

9. Front Wheelhouse Liner - Right Side (1) » Remove

Radiator Outlet Hose Replacement (LM2) — figure 7

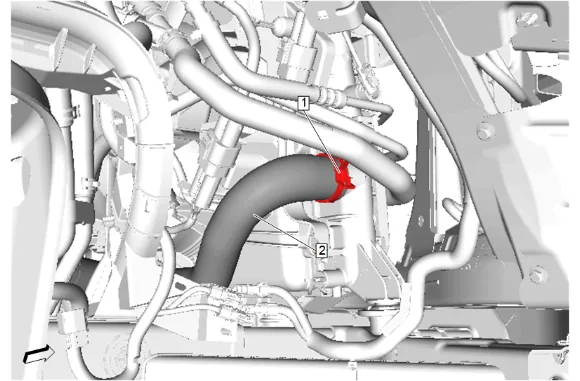

10. Radiator Outlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
11. Radiator Outlet Hose (2) @ Engine Radiator » Remove

Radiator Outlet Hose Replacement (LM2) — figure 8

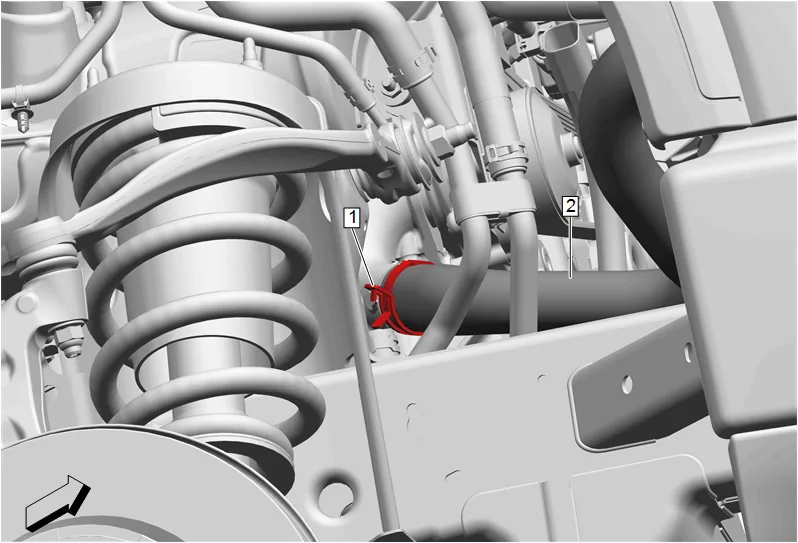

12. Radiator Outlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type

13. Radiator Outlet Hose (2) @ Water Pump Inlet Pipe » Remove Installation Procedure

14. Radiator Outlet Hose (2) @ Water Pump Inlet Pipe » Install

15. Radiator Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

16. Radiator Outlet Hose (2) @ Engine Radiator » Install

17. Radiator Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

Note

Left side shown, right side similar.

5. Front Wheelhouse Liner - Right Side (1) » Install

Caution

Refer to Fastener Caution.

Note

Left side shown, right side similar.

6. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

7. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

8. Front Wheelhouse Liner Retainer - Right Side (2) » Install
9. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

10. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

11. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Install and tighten — Fastener Specifications
12. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation
13. Fill the cooling system to the proper level. Cooling System Draining and Filling
14. Start the engine and check for coolant leaks.
