Rear Side Door Window Channel Front Retainer Replacement

Rear Side Door Window Channel Front Retainer Replacement Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

Warning

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

1. Rear Side Door Trim » Remove — Rear Side Door Trim Removal and Installation

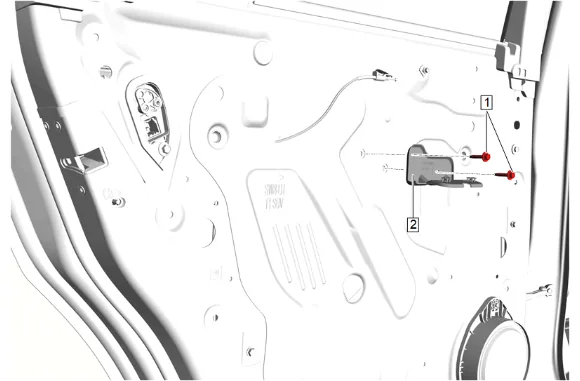

Rear Side Door Window Channel Front Retainer Replacement — figure 1

2. Rear Side Door Pull Handle Bracket Bolt (1) » Remove [2x]
3. Rear Side Door Pull Handle Bracket (2) » Remove

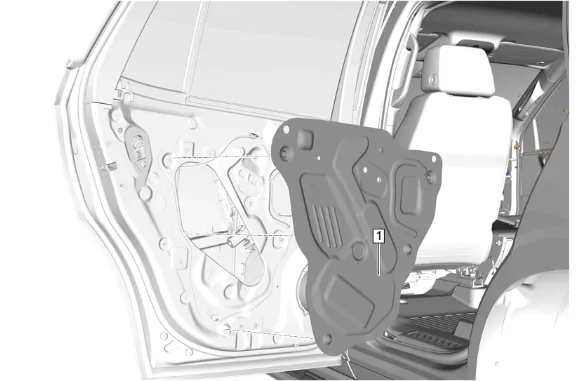

Rear Side Door Window Channel Front Retainer Replacement — figure 2

4. Route the rear side door inside handle cable through hole in deflector (1).
5. Rear Side Door Water Deflector (1) » Remove

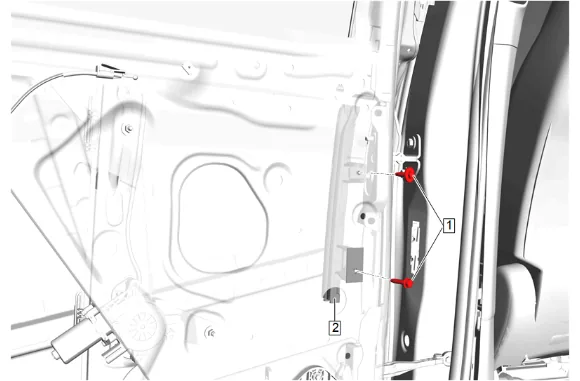

Rear Side Door Window Channel Front Retainer Replacement — figure 3

6. Rear Side Door Window Channel Front Retainer Bolt (1) » Remove [2x]

7. Rear Side Door Window Channel Front Retainer (2) » Remove Installation Procedure

8. Rear Side Door Window Channel Front Retainer (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Side Door Window Channel Front Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

Note

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

3. Route the rear side door inside handle cable through hole in deflector (1).

4. Rear Side Door Water Deflector (1) » Install

5. Rear Side Door Pull Handle Bracket (2) » Install

6. Rear Side Door Pull Handle Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Rear Side Door Trim » Install — Rear Side Door Trim Removal and Installation

8. Ensure the window system operates properly.
